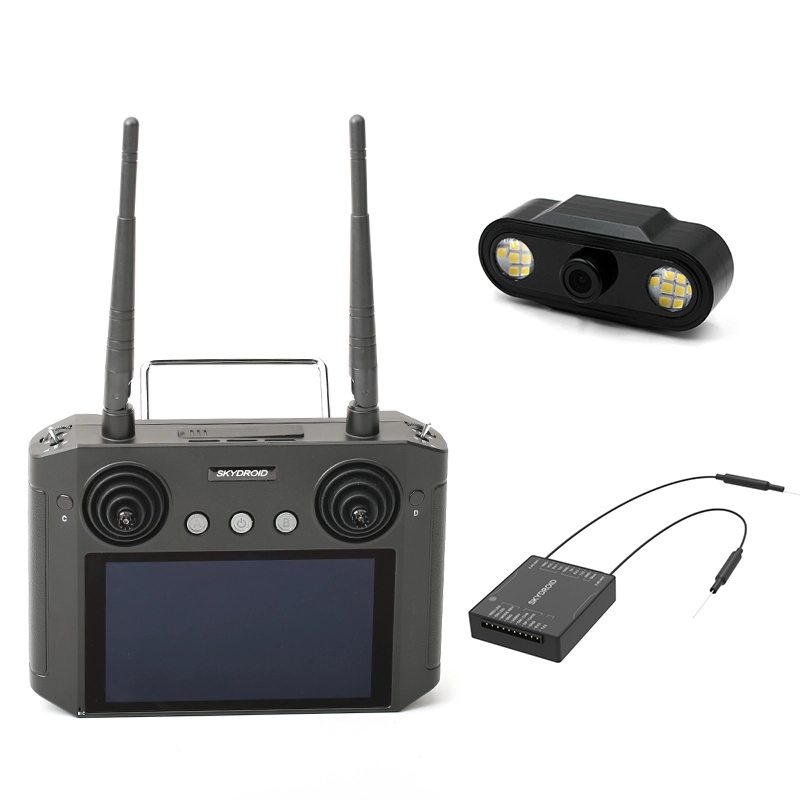

Skydroid H12 1080P Digital Video Data Transmission Transmitter Long Range Remote Control for RC Drone Agriculture Drones

1080P Digital Video Data Transmission Transmitter
5 to 30km long range
    Please select the information you wantX
(57 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)
Skydroid H12 2.4Ghz long range radio with 5.5 inch high brightness screen is great for rc drones, rc robots, industrial applications equipements. With the  FHSS spread spectrum technology, the full range of the Skydroid H12 can reach 5 to 30km. It has clear image, low delay, long range, strong anti-interference and other features. So it can be widely used on agriculture drones, FPV sevurity, fire protection, electric power, surveying and mapping robots, border defense, etc.
Skydroid H12 Long Range Radio
Skydroid H12 Long Range RadioSkydroid H12 Long Range RadioSkydroid H12 Long Range RadioSkydroid H12 Long Range RadioSkydroid H12 1080P Digital Video Data Transmission Transmitter
Remote control parameters
Item Brand: Skydroid
Product model: H12
Working voltage: 4.2V
Frequency band: 2.400- 2.483GHz
Upgrade: APP online upgrade
Size: 190*.152*94mm
Life time: 6-20 hours
Number of channels: 12
RF power: 20DB@CE/23DB@FCC
Frequency hopping: new FHSS frequency hopping
Weight: 530g
Battery: 10000mA/H
Charging interface: TYPE-C
Application: helicopter, fixed wing, multi-rotor, vehicle and ship

Receiver parameters
Product model: R12
Number of channels: 12
Working current: 140mA@5V
Working voltage: 4.5-5.5V
Size: 51x41x13mm
Weight: 14g

Camera parameters
Working current: 140mA
Resolution: 640*360
Weight: 55g
Camera angle: 120°
Working voltage: 12-72V
Size: 102.1*42.6*36.5mm
LED light power: 6W

Package Included:
Skydroid H12 remote controller x 1
Skydroid H12 receiver x 1
3in1 MIPI camera x 1
cables x 1

Note: Due to the battery in the radio, shipping time is longer than usual.
