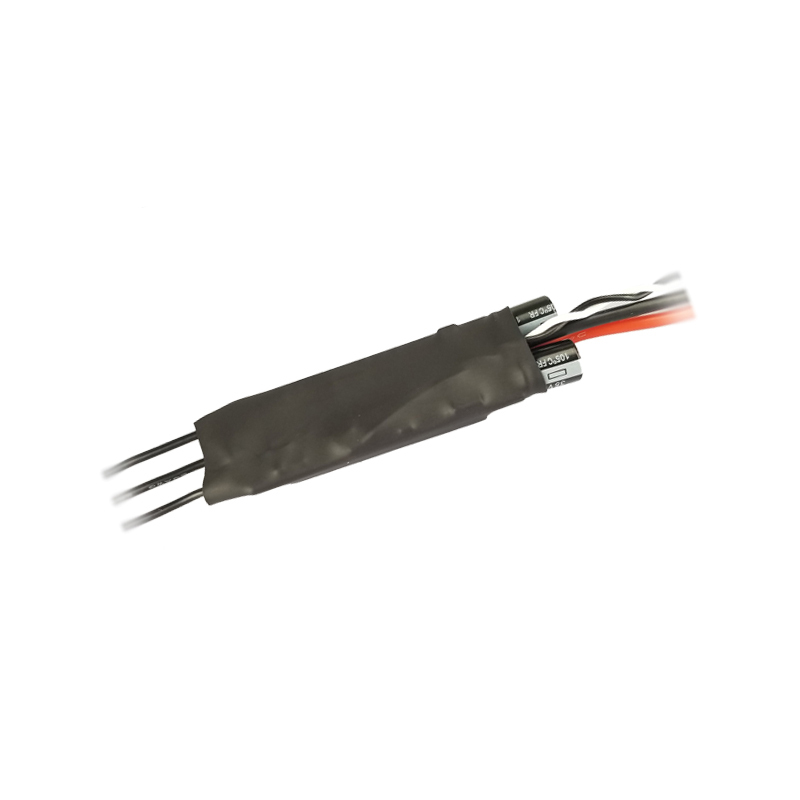

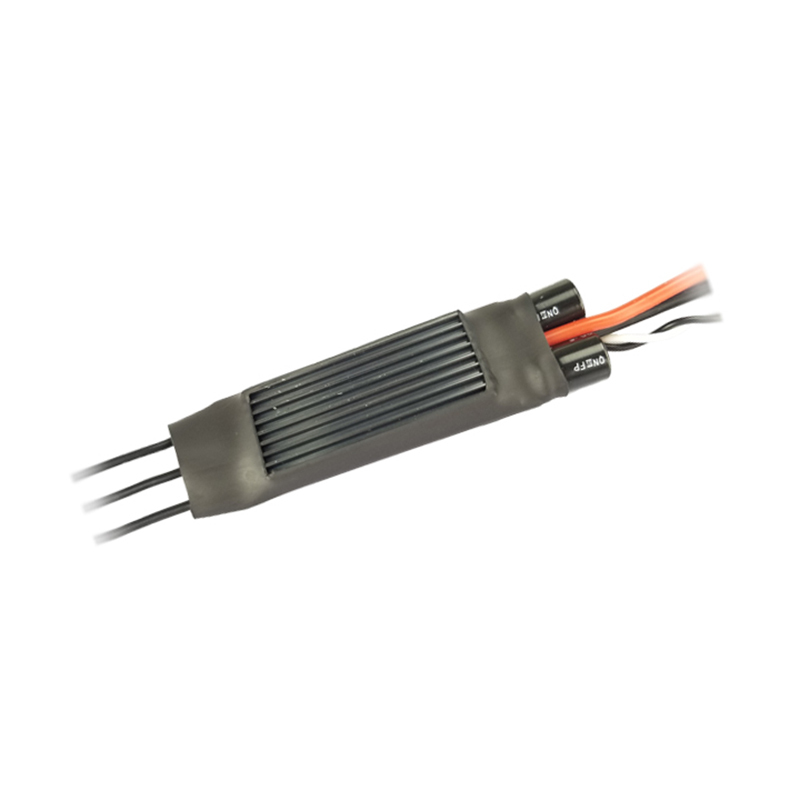

XRotor Pro 40A ESC is customized by Tarot and Hobbywing for multi-rotor drones. This product greatly adjusts the volume and weight of the ESC itself, and the bare weight of the ESC (excluding the output wire) on the premise that the functional application fully meets the standard. Only 20g, the ultra-light structure design can indirectly improve the flight endurance of the multi-rotor. The ESC adopts an aluminum alloy heat sink with excellent thermal conductivity, combined with a specially designed heat conduction groove structure, which brings a more efficient heat dissipation effect. The factory has been highly intelligent, and it can meet most applications without any parameter settings, which greatly optimizes the user experience.
Feature:
1. The special core program for multi-rotor, the throttle response speed is greatly improved;
2. Using DEO (Drniving Efficiency Optimization) driving efficiency maximization technology, it has better throttle linearity and higher driving efficiency;
3. Automatically adjust the timing, highly intelligent, and the factory default settings can meet most applications;
4. The throttle signal line is a twisted pair, which effectively reduces the crosstalk caused by the signal transmission in the copper line, making the flight more stable;
5. It can support a signal frequency of up to 621Hz, and is compatible with various flight controllers (Note: the ESC control signal at this time is a non-standard throttle signal).
Product parameters:
Continuous/peak current: 40A/60A
Voltage: 3-6S LiPo / 11-26V
BEC: none
Power cord: red and black 16AWG silicone wire 500mm
Signal line: DuPont 2P line 450mm
Motor output wire: black 20AWG silicone wire 55mm
Size: length, width and height 65*20*9.8mm
Weight: bare weight without wire 20g; full weight with wire 35g

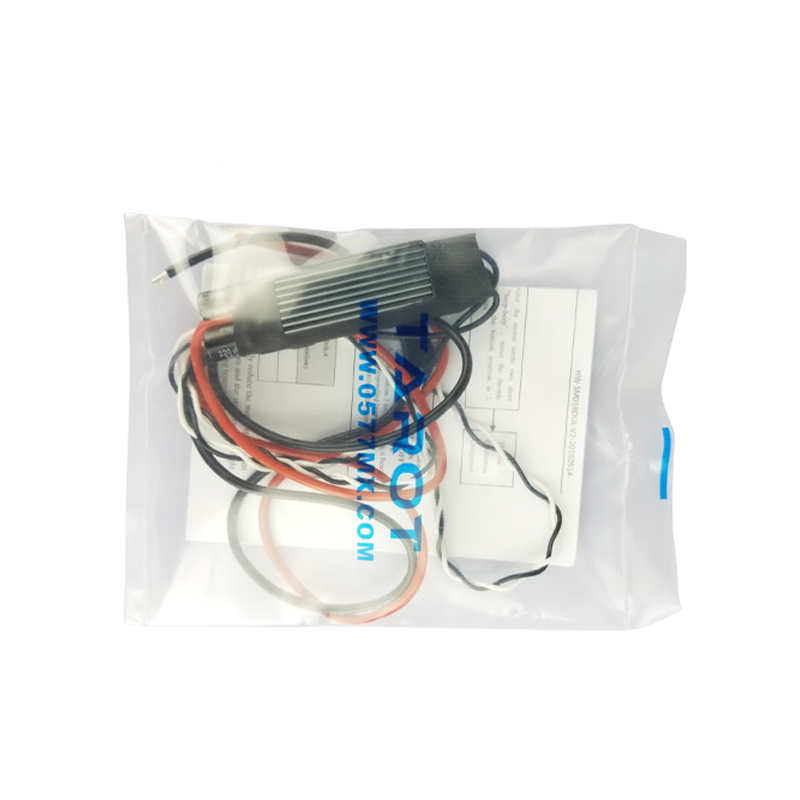

Product Specifications:
Tarot XRotor Pro 40A ×1
Paper manual ×1
