Tarot 5D3 3-Axis Stabilized Brushless Motor Gimbal TL5D001 for Canon 5D MARK III

    Please select the information you wantX
(10 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

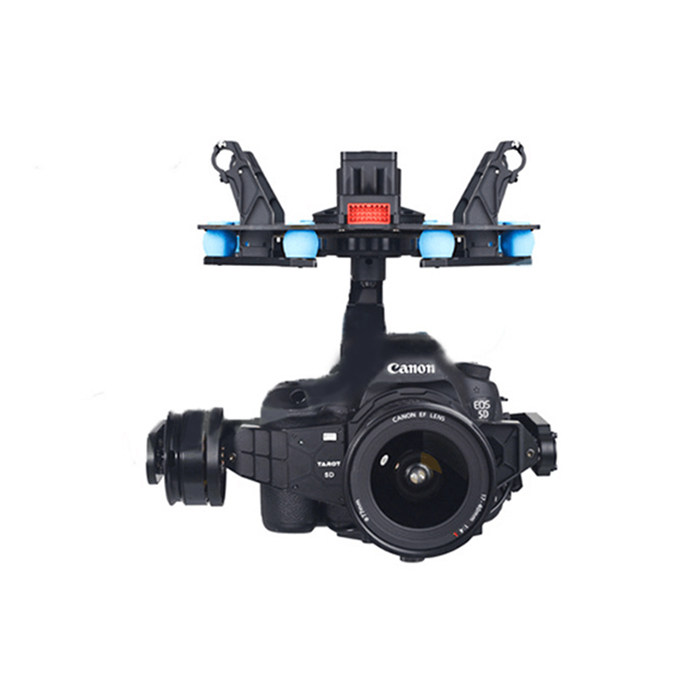

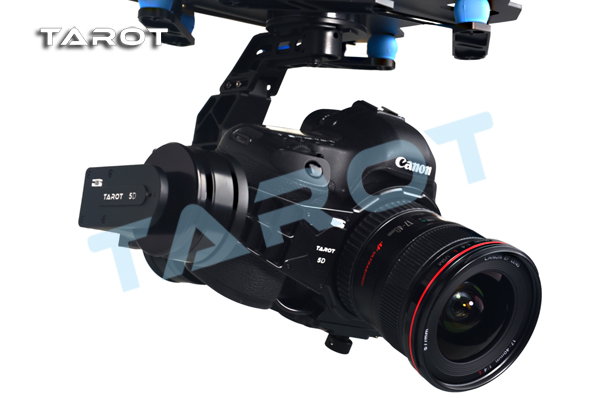

Tarot 5D3 3-Axis brushless gimbal is specifically designed for Canon 5D Mark III. Integrated all the high technology for all the Tarot gimbals. CNC processed and industrial integrated structure brings lightness and stability. It is the professional choice for aerial photography. With the optional handheld bar (TL5D001), it is also can be used as a handheld gimbal. Tarot 5D3 3-axis gimbal has accuracy computing system and individual IMU to control the movement and attitude. All power cable and signal wire are placed inside the rack and structure.  The innovative mechanical structure allows the operating speed controllable. The joystick movement is corresponding to axis speed; the bigger movement is, the faster axis speed will be.

Supports PC interface setting
Attitude Lock (AL) mode
Pan Follow (PF) mode
First Person View (FPV) mode.
Internal IMU module

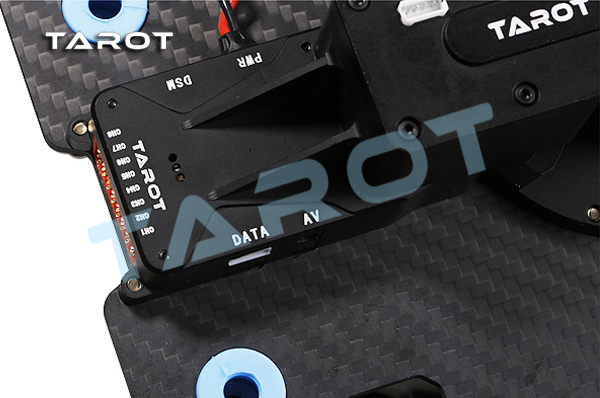

Servo driver module for Tarot gimbal
Output AV port
Shutter control
Wide range of input voltage
Supports S-Bus/PPM/DSM servo

Support camera: CANON EOS 5D MARK III
Support lens: CANON EF 17-40mm f/4L USM
Input power for gimbal control: 3S~6S Lipo battery
Receiver Channel: at least 4

Mechanical & Electronic Specifications:
Angle control accuracy: ¡Ó0.02¢X
Maximum control speed: PAN ¡Ó200¢X/s, TILT¡Ó200¢X/s, ROLL ¡Ó200¢X/s
Control range: PAN ¡Ó360¢X continuingly, TILT-135¢X~+45¢X, ROLL ¡Ó48¢X
Working voltage: 120mA (@25V) 180mA  3S-6S Li (11V-26V)
Locked motor voltage: 4A (@25V)  8A (@12V)
Working voltage: -20¢XC ~ 50¢XC
Weight: 1.51Kg
Size: 215mm x 240mm x 246mm
PC system requirement: Windows XP/VISTA/7/8 (32/64 bit)

The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units orindividual without the license holder manufacture ¡Bcopy ¡Buse and sale the product will be patent lawsuit¡C
patent number : 2014201546579
patent number : 2014201546583
patent number : 2014201546598
patent number : 2014300741581

User Manual Download
