Applicable to TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D
CNC processed; rotor is made by NdFeB, stator made by Epoxy, and motor shaft uses alloy steel material.
Motor upper and lower cover apply large-size bearing, which has advantages of long longevity, high efficiency, low power consumption, less noise, stable control.
Specification:
Motor diameter: 35.00mm
Stator diameter: 28.0 mm
Stator thickness: 14.0 mm
Rotating speed/ volt: 700 RPM / Volt
Weight: 102 G
Gear shaft diameter: 4.0 mm
Motor shaft length: 53.5 mm
No-load current: 0.8A
Mounting port: 19MM, 25MM
Prop. Adapter diameter: 6.3MM
Package Include:

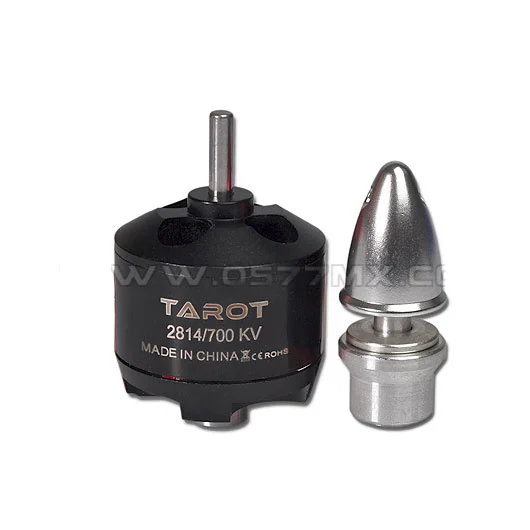

2814/700KV brushless motor for multi-copter x1
3.5 gold connecter x3
Metal Propeller Grip x1 set
