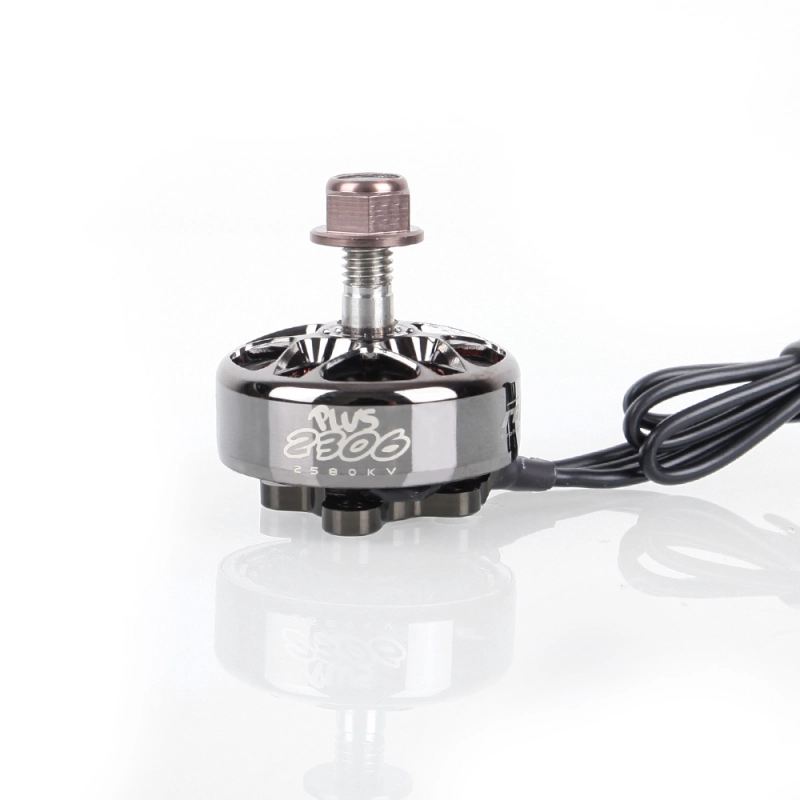

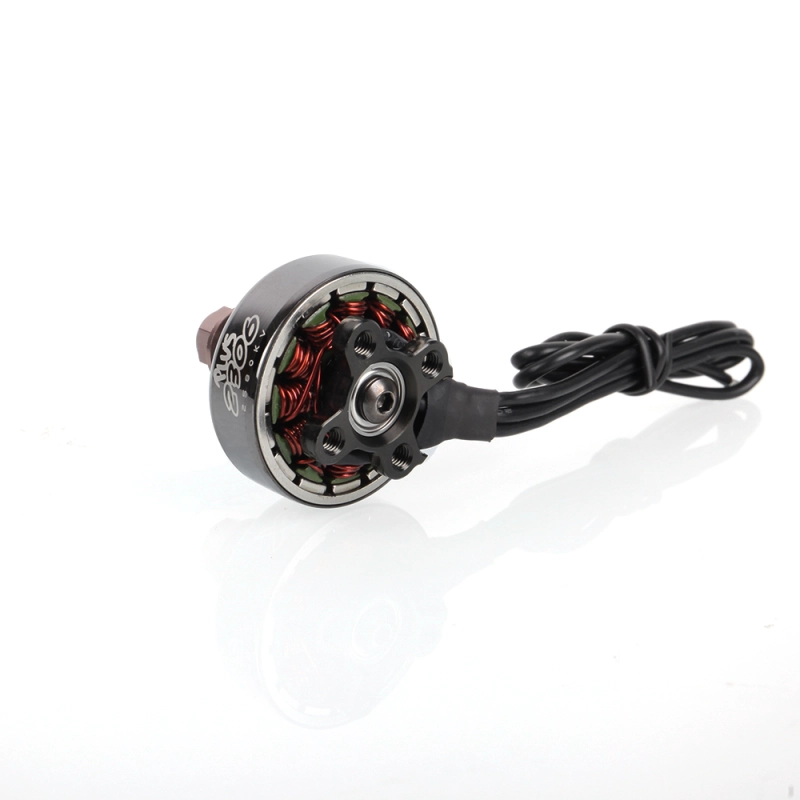

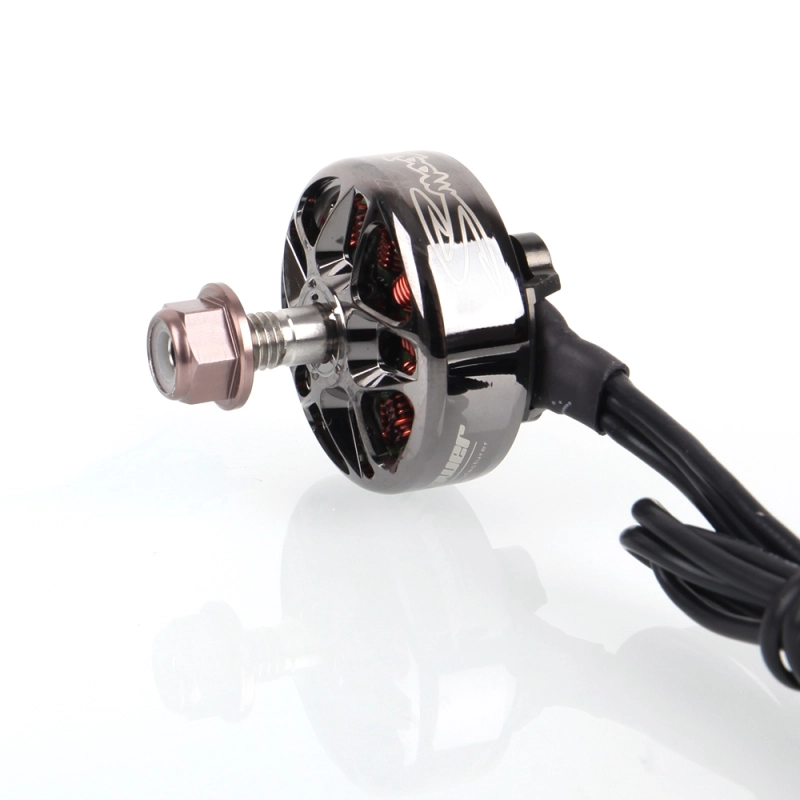

Rcinpower SmooX 2306 Plus Black 2580KV 4S High End Brushless Motor for FPV Racing Drone

0.0 (0 Reviews)
$0.00 $22.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
  • Ships From:
    China
    Please select the information you wantX
Quantity
-
+
Frequently Bought Together
more
Frequently Bought Together
  • Description
Rcinpower SmooX 2306 Plus 2580KV  brushless motor is specially designed for 4S fast speed fpv racing drones.

Specification:
Item Brand: RCINPOWER
Item Model: SmooX 2306 Plus
KV: 2580KV
Color: Black
No. of Cells (Lipo):4-5S @  2580KV
Configu-ration: 12N14P
Stator Diameter: 23mm
Stator Length: 6.6mm
Shaft Diameter: 4mm ( Hollow)
Idle Current(10V): [email protected]
Max. Con. Power (5S): [email protected]
Internal Resistance: 30mΩ @2580KV
Max. Current(5s): 55A @ 2580KV
Cable Length: 15cm
Motor Dimension:29x30.5mm
Weight: 33g ( 3cm wire)

Package Included:
1x RCINPOWER SmooX 2306 Plus 2580kvBrushless Motor
1x Motor Nut

Rcinpower SmooX 2306 Plus

Rcinpower SmooX 2306 Plus 2580KV
