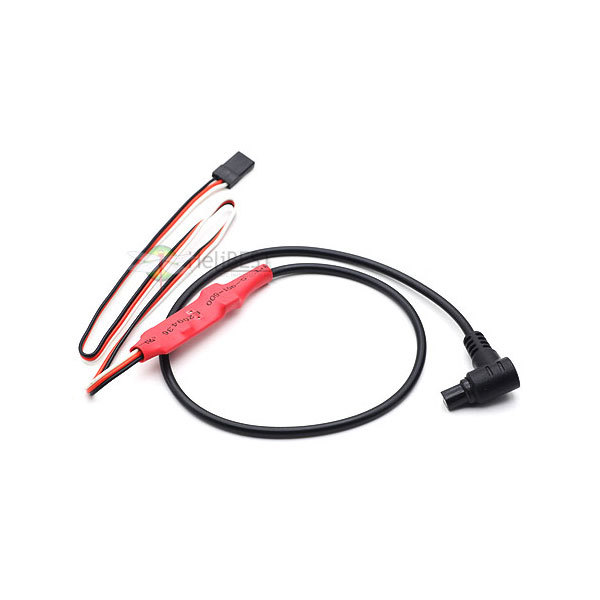

RC-80N3 is compatibl with following cameras:
EOS-7D/5D/5D2/5D3
EOS-10D/20D/30D/40D/50D
EOS-1D/1Ds
EOS-D60/30
EOS-1V/Hs
EOS-3/D2000
Useage: using radio set to control focusing and shutter of the camera.
Length: 500mm
Weight: 12g
Installing Method:
1. Plug signal wire of RC-80N3 to any idle channel on receiver.
2. Allocate a 3-position switch to the metioned idle channel in remote control menu.
How to Use:
Use 3-position switch to control shutter action of the camera.
When 3-position switch is in middle place, it means "half-press"the shutter.
When 3-position switch is in another two directions, it refers to "totally-press" or "totally-loosen" the shutter.
The channel direction can be set by yourself according to your favor.
Indicator Light:
Blue - focusing
Red - shutter press
Light Went Out - shutter loosen
