KST BLS815 20KG Large Torque Metal Gear Servo for 550-700 Class Helicopter

Name: KST BLS815 20KG Large Torque Metal Gear Servo for 550-700 Class Helicopter
Brand: ARRISHOBBY
SKU: DF0018
Price: 69.99 USD
Availability: OutOfStock

SKU: DF0018

0.0 (0)

$69.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

The latest version of KST BLS815 servo greatly improves the structure and heat dissipation performance of the steering gear, and can provide the work output you need in all kinds of environments.

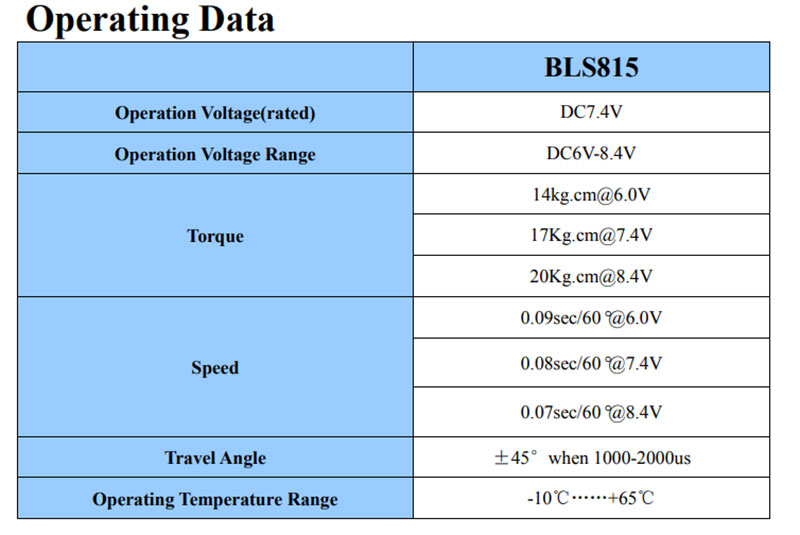

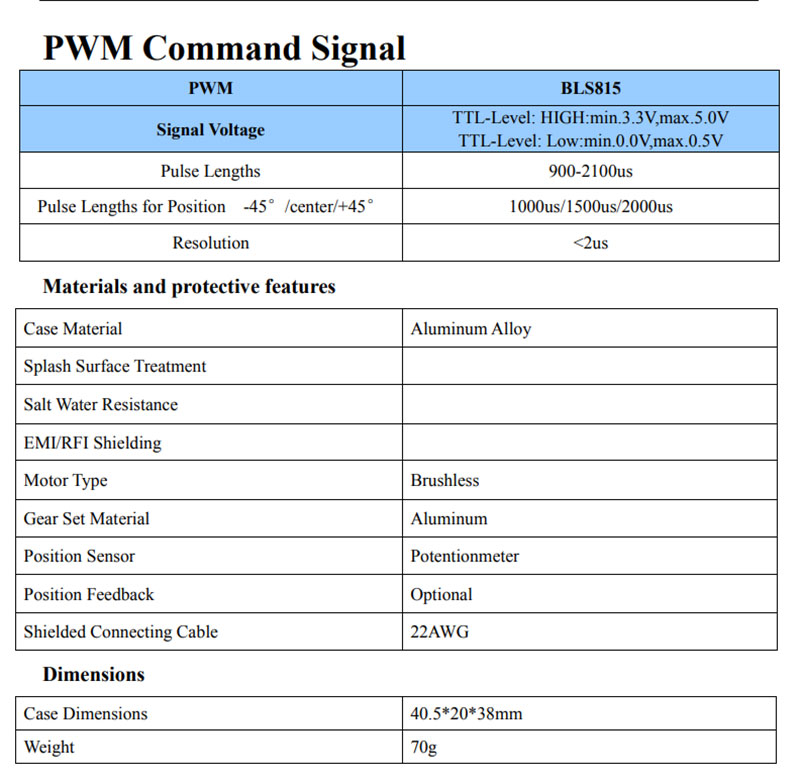

Specifications:
Item Brand: KST
Item No.: KST BLS815
Operation Voltage: DC6V-8.4V
Torque: 20Kg.cm@8.4V; 17Kg.cm@7.4V; 14Kg.cm@6.0V
Speed: 0.09sec/60°@6.0V; 0.08sec/60°@7.4V; 0.07sec/60°@8.4V
Working Frequence: 1520us/333Hz, 900us-2200us
Motor: brushless motor
Position Sensor: Potentionmeter
Gear Set material: Aluminum

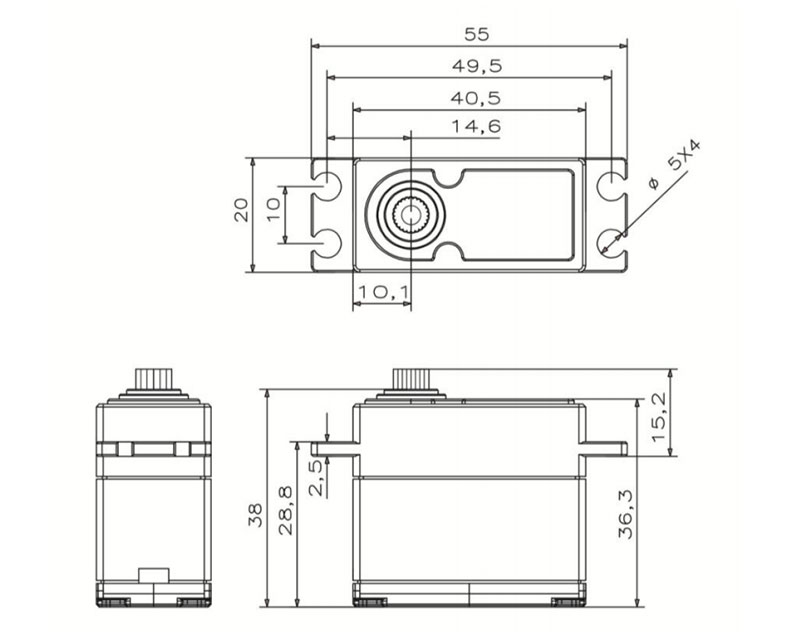

Size: 40.5 x 20 x 38mm
Weight:70g

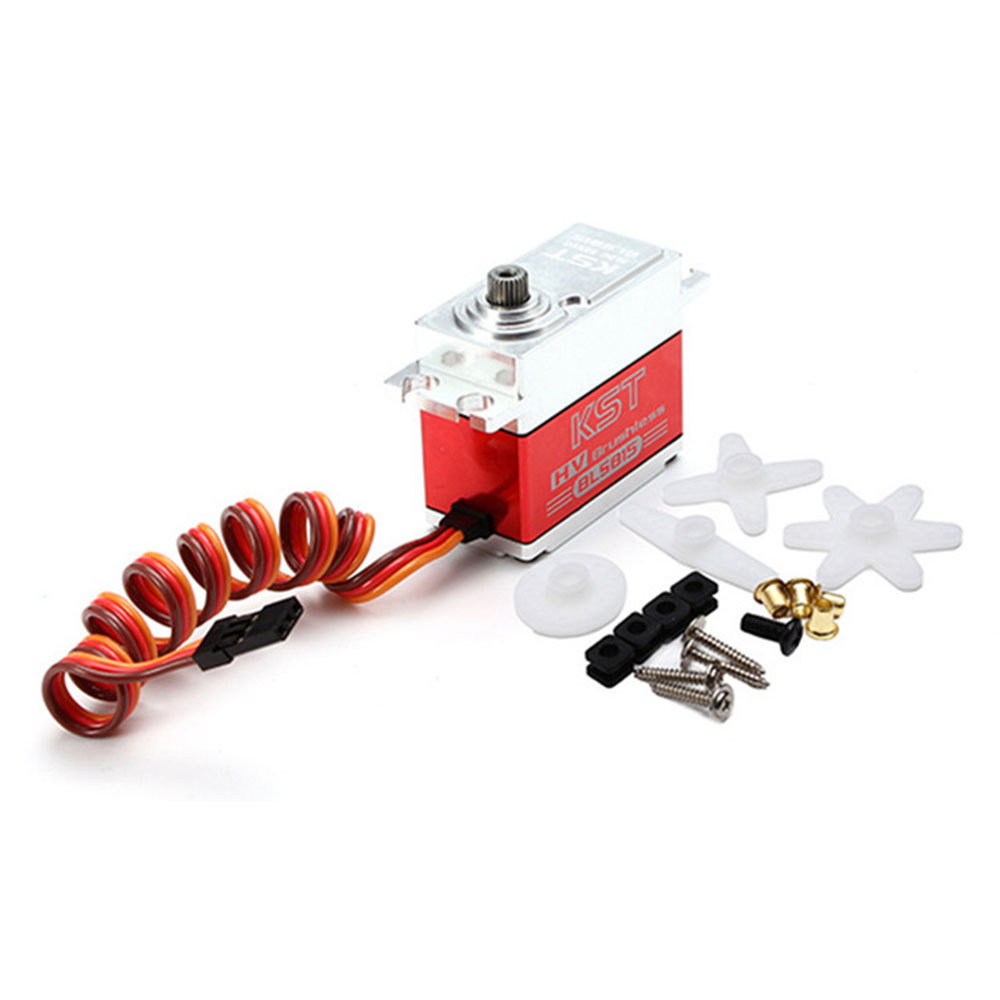

Package Included:
KST BLS815 20KG Large Torque Metal Gear Servo x 1
