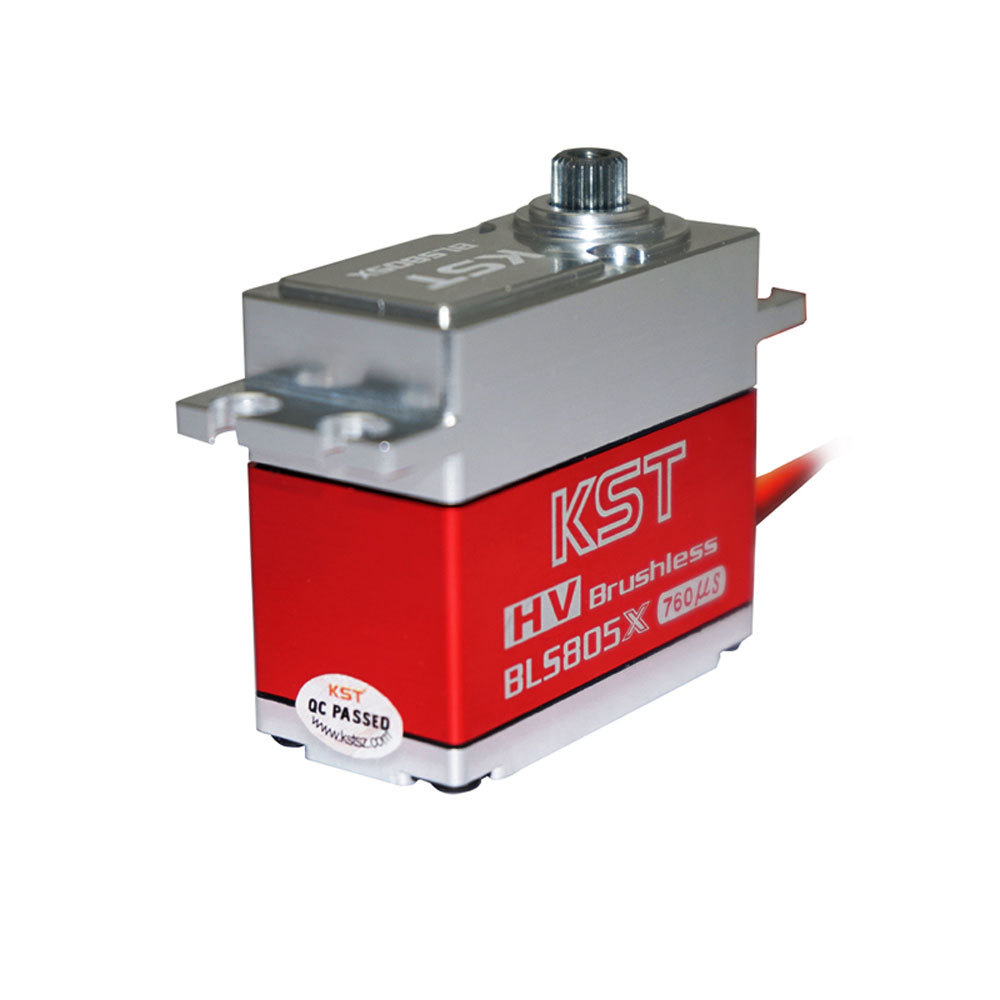

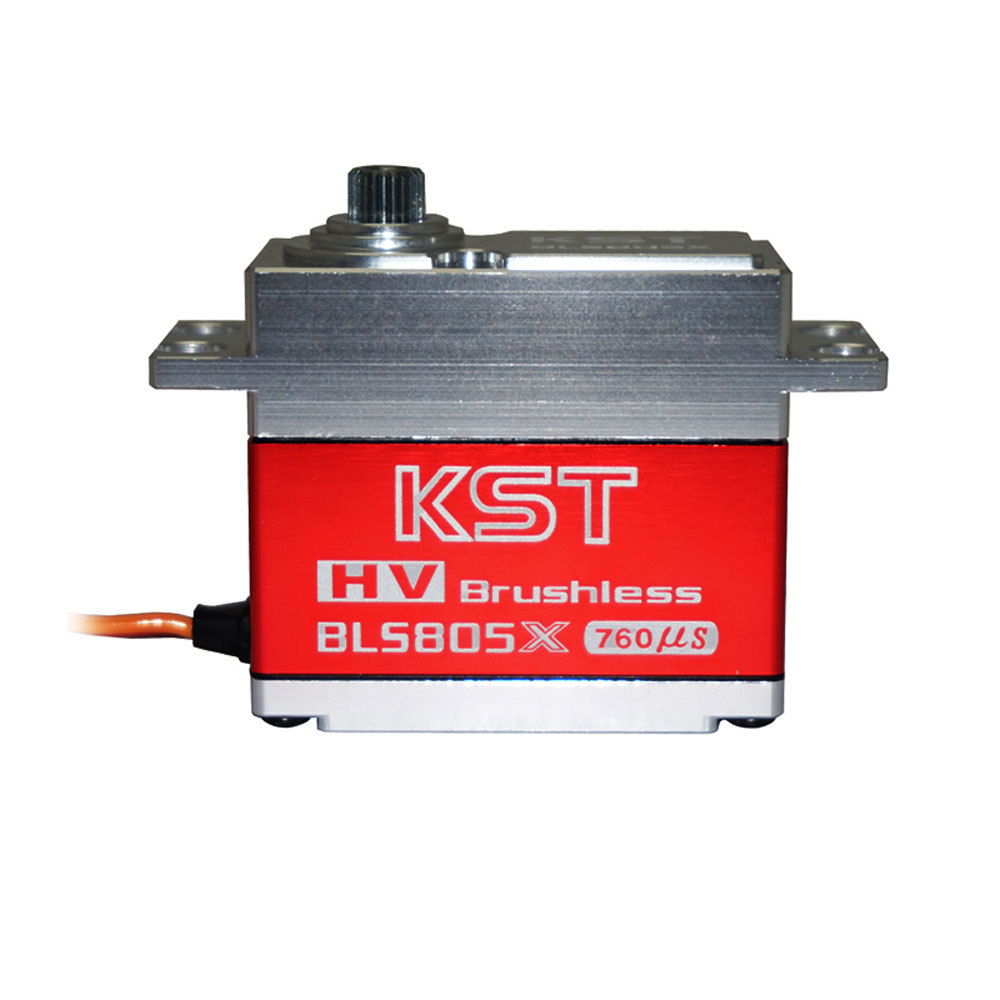

KST BLS805X 7.5KG HV Metal Brushless Servo for 550-700 Class Helicopter

DF0019
    Please select the information you wantX
Quantity:
-
+
(98 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
The latest version of KST BLS815 servo greatly improves the structure and heat dissipation performance of the steering gear, and can provide the work output you need in all kinds of environments.It is a good tail lock servo for 500 to 700 class helicopters.

Specifications:
Item Brand: KST
Item No.: KST BLS805X
Operation Voltage: DC6V-8.4V
Torque:  5.5Kg.cm@6.0V; 6.5Kg.cm@7.4V; 7.5Kg.cm@8.4V
Speed:  0.048sec/60°@6.0V; 0.042sec/60°@7.4V;  0.039sec/60°@8.4V
Working Frequence:  760us/560Hz
Motor: brushless motor
Ball Bearing: 2BB
Size: 40.5 x 20 x 38mm
Weight:70g

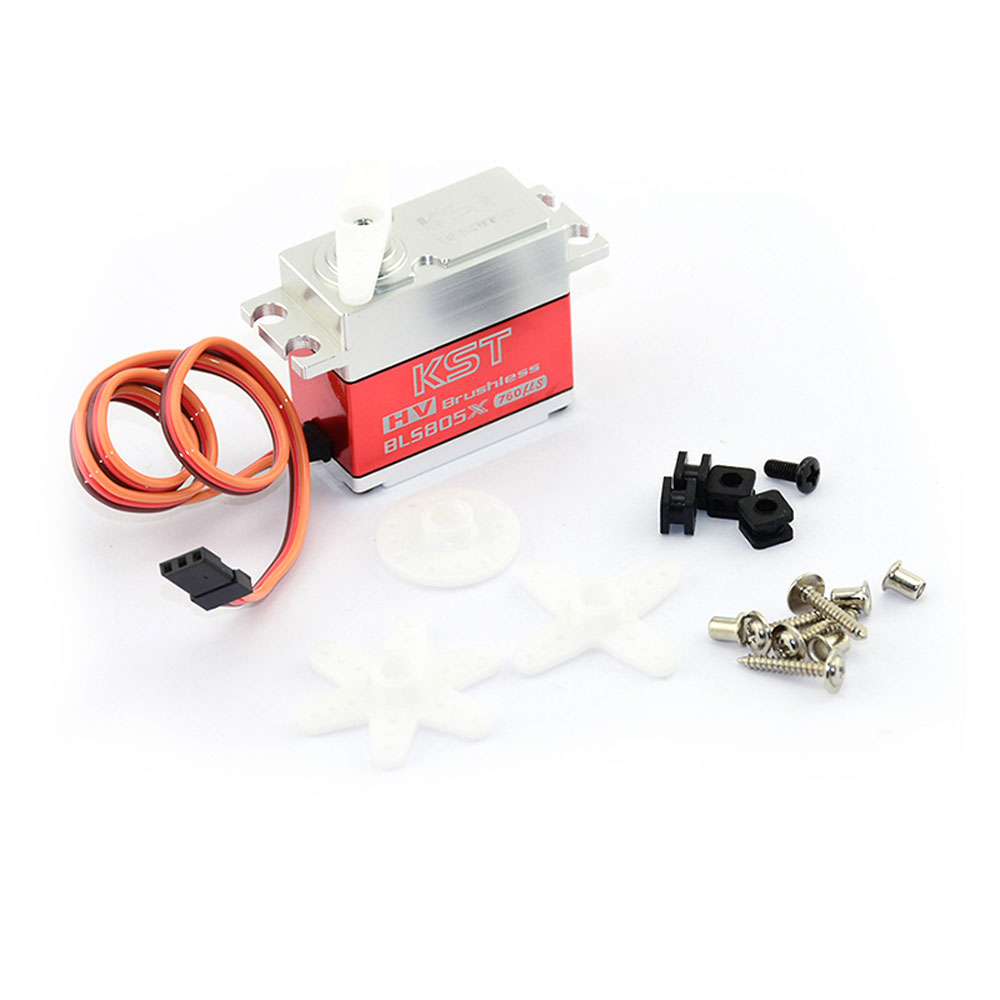

Package Included:
KST BLS805X 7.5KG HV Metal Brushless Servo x 1
