Main Features:
1. Built in four-in-1 RF Module (CC2500 CYRF6936 A7105 NRF2401), and remote control distance is over 2km.
2. Open source multi-protocol firmware, compatible with most mainstream remote controls in today’s hobby market.

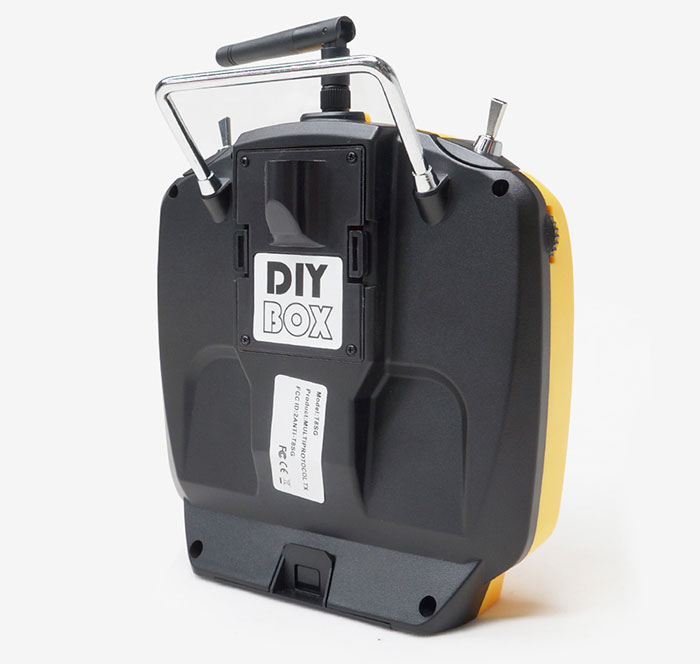

3. JR/FrSKY compatible module bay on rear side for additional proprietary protocol use.
4. Transmission power adjustable to adapt to different location requirements.
5. Up to 12 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable.
Specification:
Size: 158 * 150 * 58
Weight: 338g (without battery)
Transmission frequency: 2.400GHZ-2.7GHZ
Transmitter Module: Four in One High Frequency Module (CC2500 CYRF6936 A7105 NRF2401)
Transmit power: maximum 22dbm (transmit power adjustable)
Antenna gain: 2db (detachable antenna, easy modification)
Working current: 88Ma@8.4V
Working voltage: DC4.5-DC18V (factory with 4 * AA battery box, lithium battery recommended 2s balanced head line, batteries not included)
Remote control distance:> 2km @ 22dbm
Channels: up to 12 channels (depending on the receiver)
Display: 1.7”LCD , 128 * 64 resolution
Upgrade method: USB online upgrade

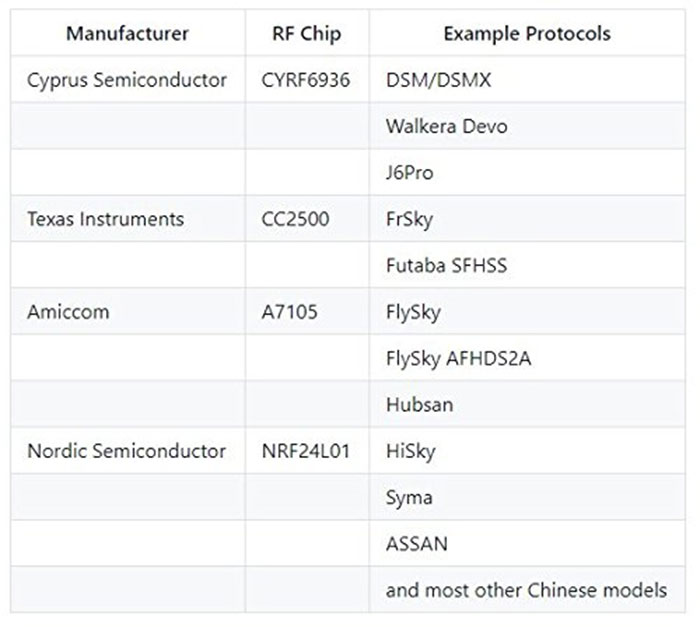

Support Protocols: Walkera full range, DSM2/X full range, Flysky and Flysky 2A, FrSKY, FUTABA s-fhss full range, WL Toy series, Hubsan series, Esky series and many more (Currently a total of more than 40 supported protocols)
Simulator mode: 3.5mm standard ppm output

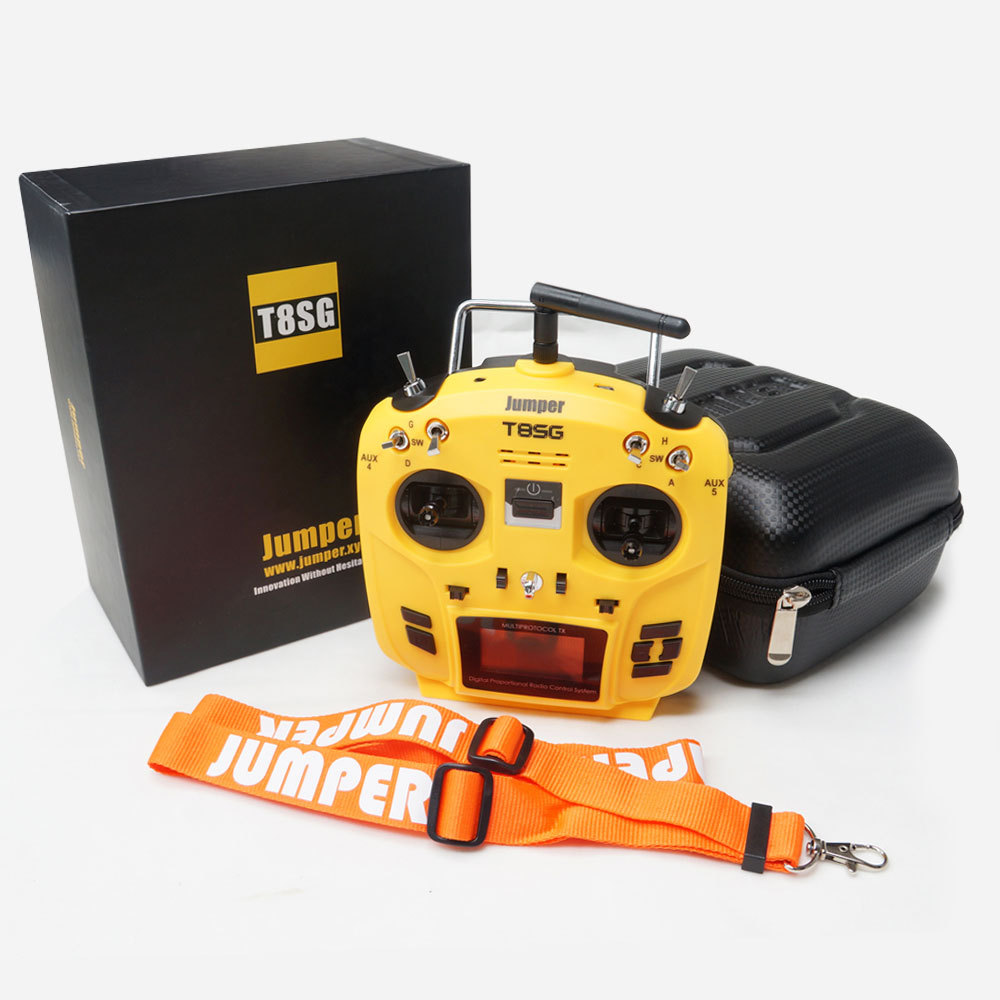

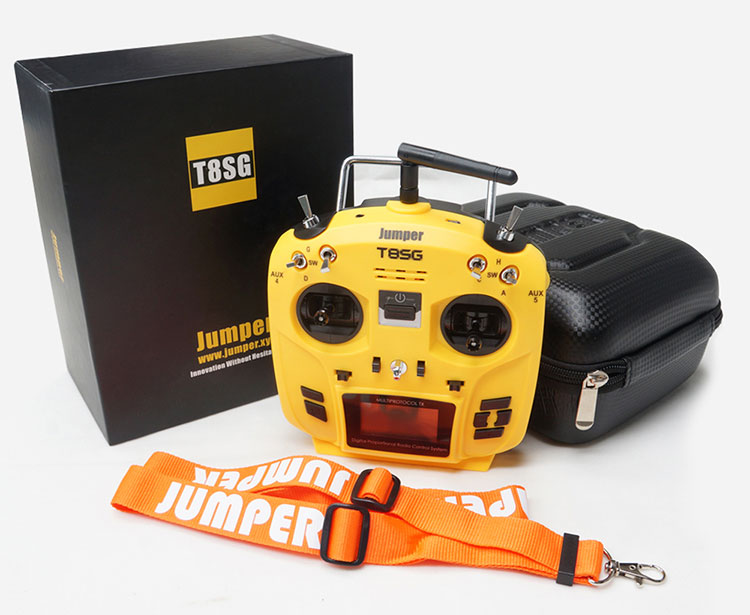

Package included:

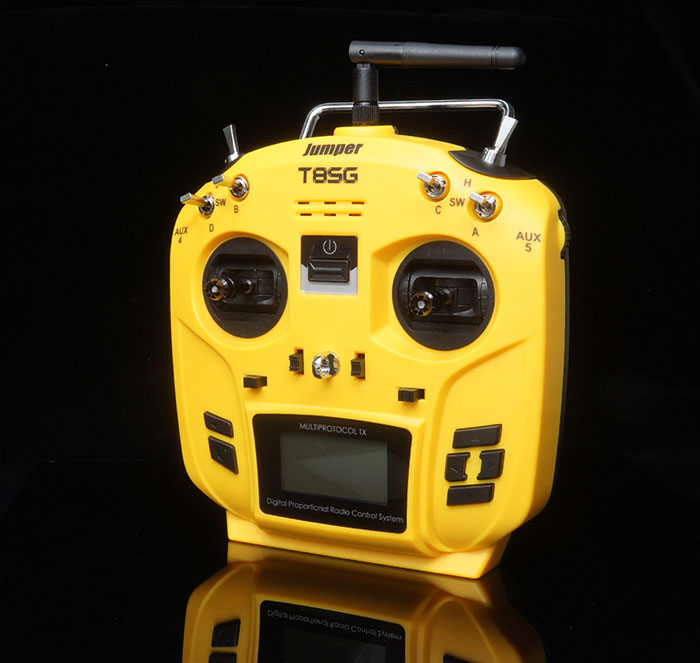

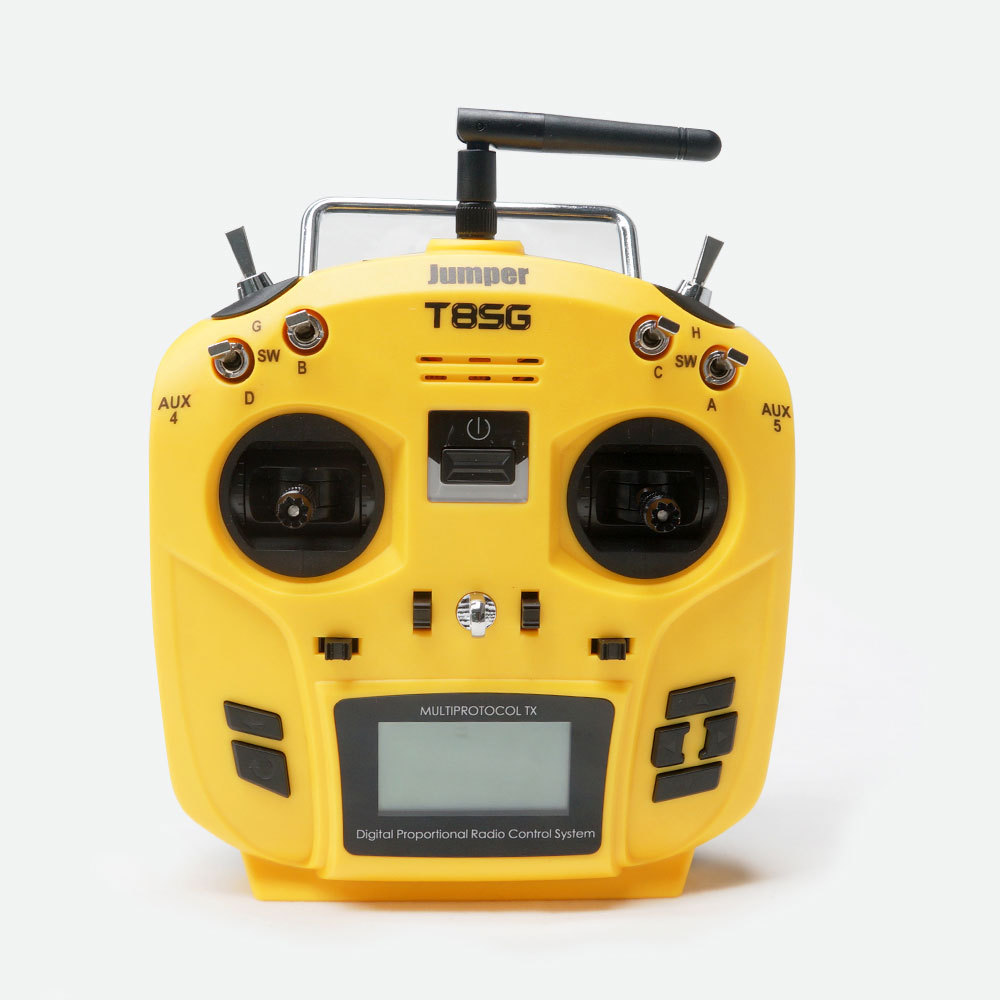

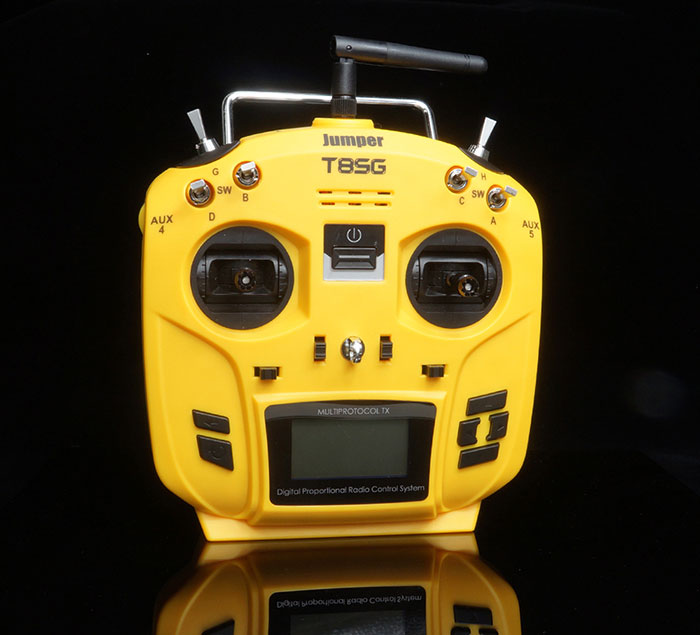

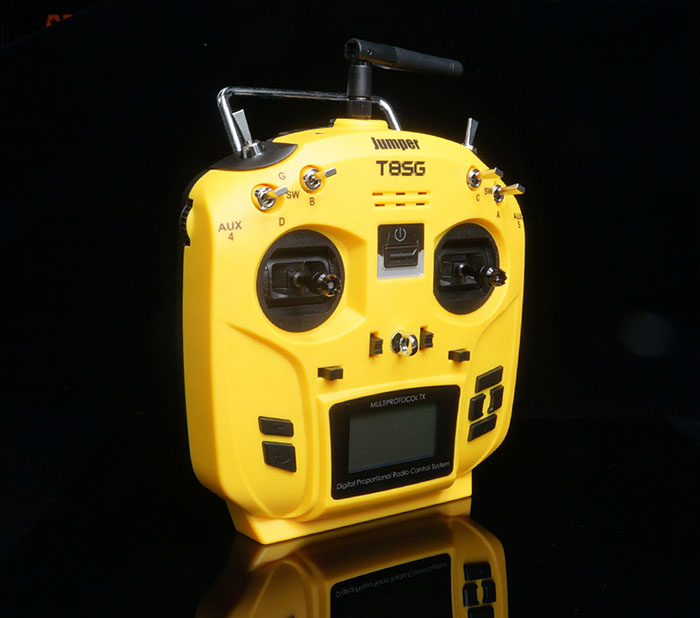

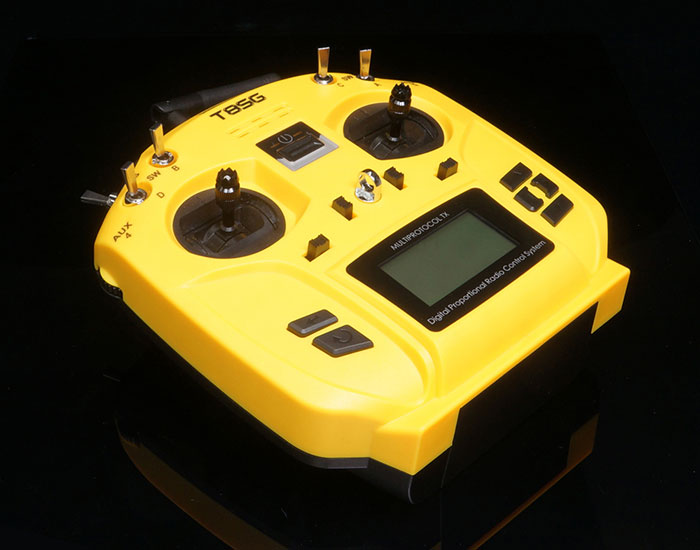

1 x Jumper T8SG V2 Transmitter
1 x Transmitter Case
