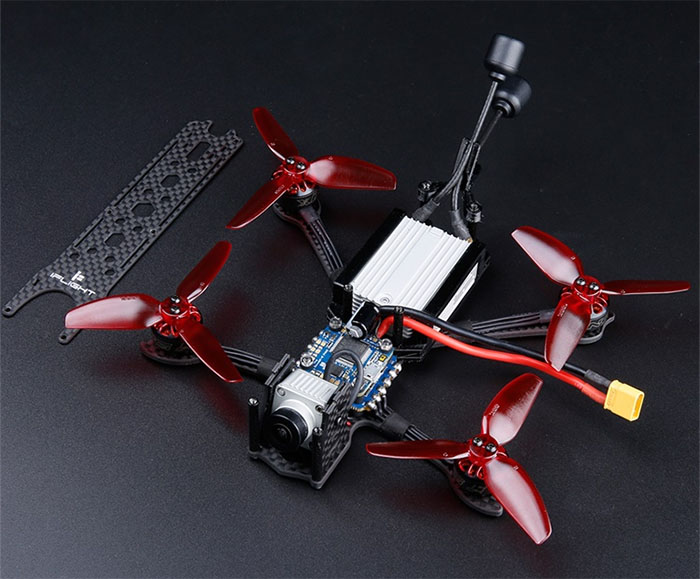

The iFlight DC3 HD frame was specially designed for the DJI Digital FPV System with less total weight than 250g. It is also suited for a 5-inch propeller power system and flight controllers. The DC3 HD Frame design makes installation and maintenance easy. With the 3-inch propeller power system, users have ensured a super great flying experience.



Main Features:
-Full 3K Carbon Fiber airframe
-TPU bracket protect to crash Air Unit Module

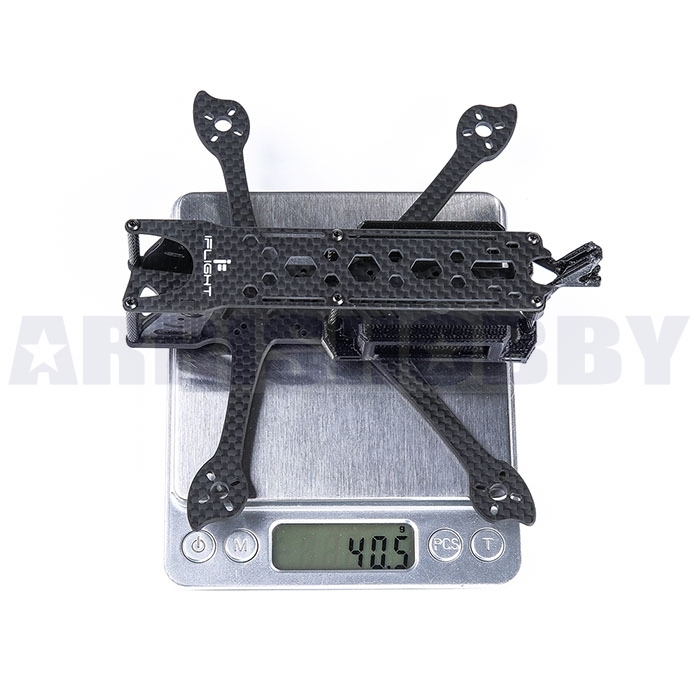

-144mm wheelbase,40.5g
-Popular Deadcat style configuration, No prop in View
-Fits 20x20 stacks


Specifications:
- Item Brand: iFlight
- Item Model: iFlight DC3 HD
- Type: 3" FPV Freestyle frame
- Frame wheelbase: 144mm
- Frame weight:40.5g approx
- Standoff: M2*25mm(4pcs)
- 3mm thickness, 11.3mm width arms,1.5mm vertical side plates
- 2mm top, the upper & bottom plate
- Mounting Holes: 20*20mm
- Support camera size: 19*19mm 22*22mm
- Recommended motors: 14XX,12XX

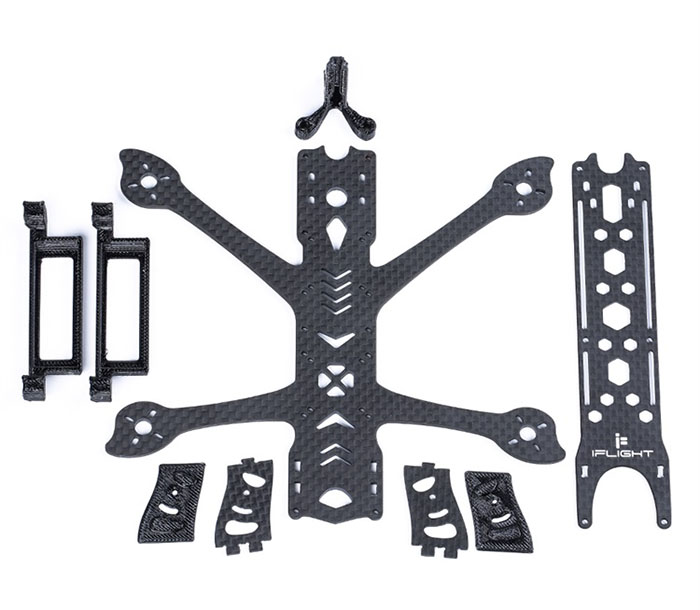

Package included:
-1 x DC3 HD Frame
-1 x Screw Bag
-1 x TPU Camera mount adapters
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-2 x Battery Straps
