Home > Holybro UBLOX M8N GPS Module for PIX Flight Controller

1/1

Holybro UBLOX M8N GPS Module for PIX Flight Controller

Name: Holybro UBLOX M8N GPS Module for PIX Flight Controller
Brand: ARRISHOBBY
SKU: NA0328
Price: 49.99 USD
Availability: OutOfStock

SKU: NA0328

0.0 (0)

$49.99 ~~$59.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

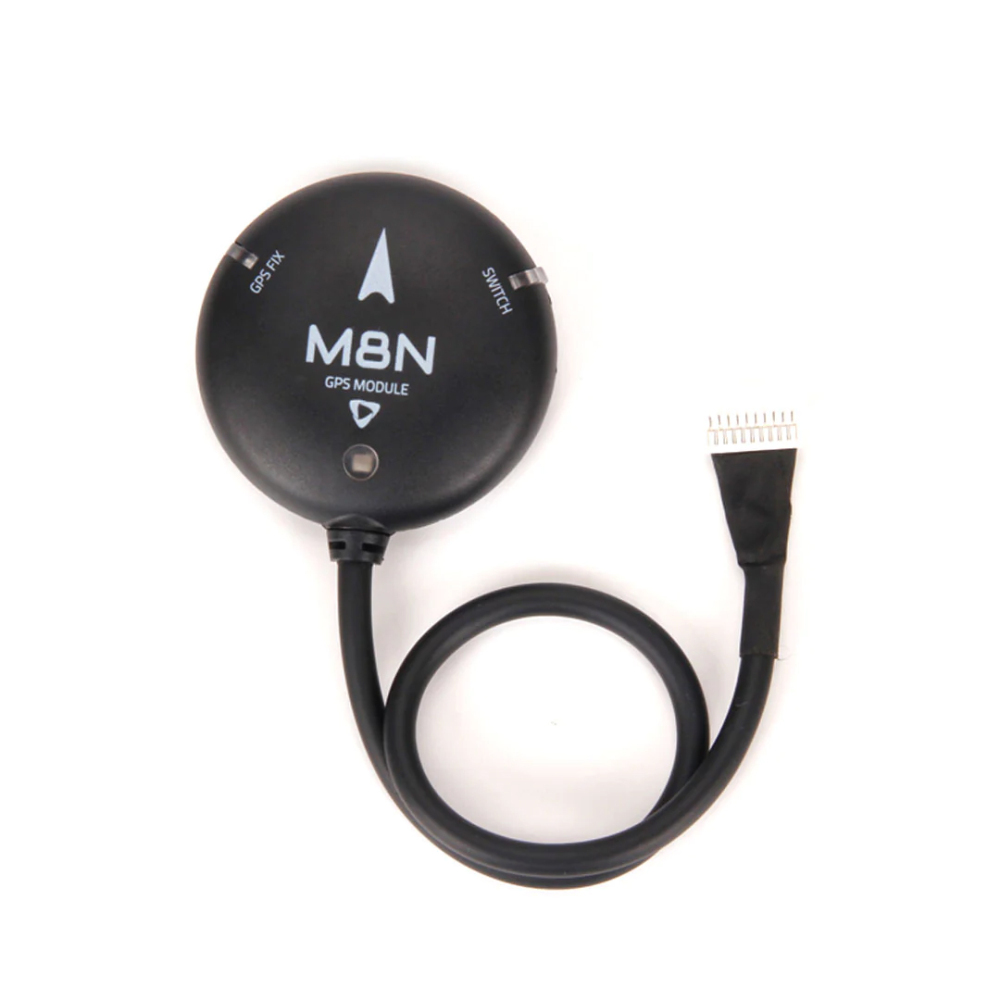

The M8N GPS has an UBLOX M8N module, IST8310 compass, tricolored LED indicator, and a safety switch. There are 2 different connectors options for different purposes. This module ships with a baud rate of 38400 5Hz

Features and Specifications:
Ublox Neo-M8N module
Industry leading –167 dBm navigation sensitivity
Cold starts: 26s
LNA MAX2659ELT+
25 x 25 x 4 mm ceramic patch antenna
Rechargeable Farah capacitance
Low noise 3.3V regulator
Current consumption: less than 150mA @ 5V
Fix indicator LEDs
Protective case
Cable Length: 26cm
Diameter 50mm total size, 32 grams with case.

PX4 Autopilot users: The GPS RGB LED Driver Chip has been updated. Ensure the PX4 firmware is Stable Release v1.12.2 or newer for proper LED driver Support.

Ardupilot User: If unable to preform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.

PIN MAP

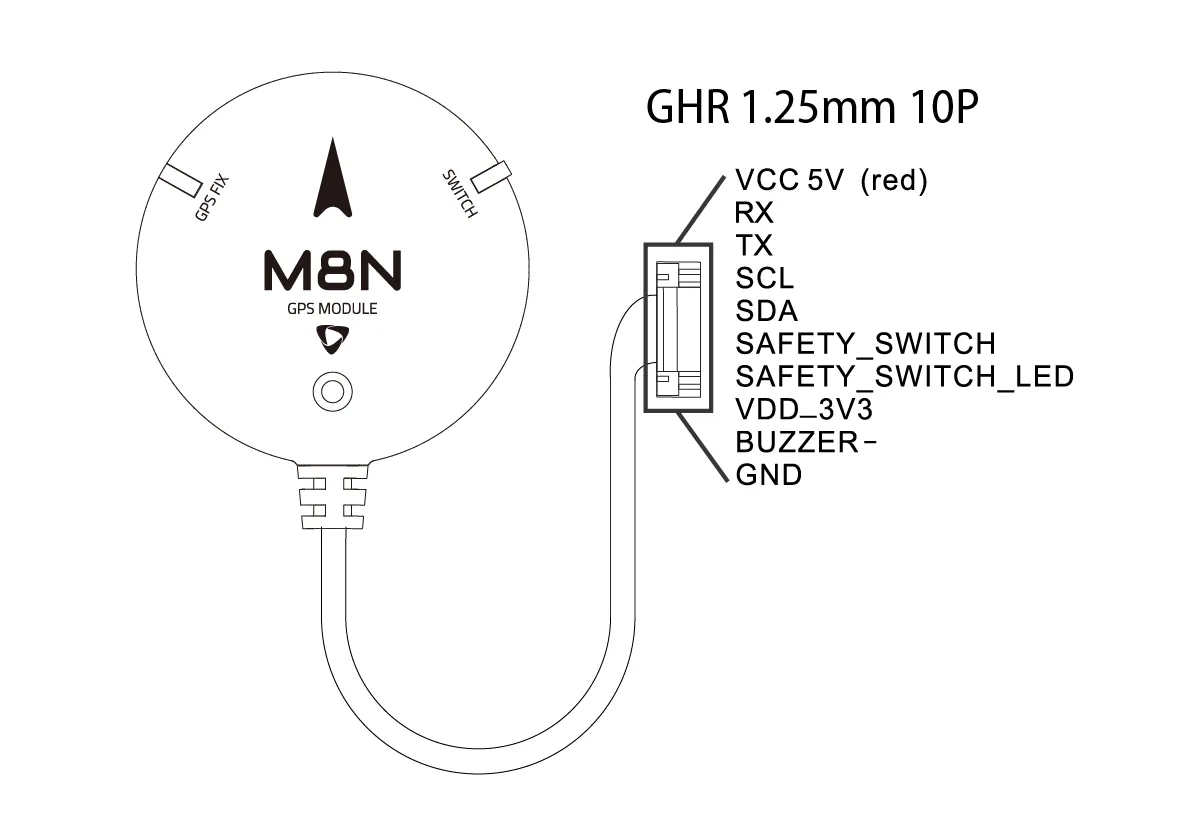

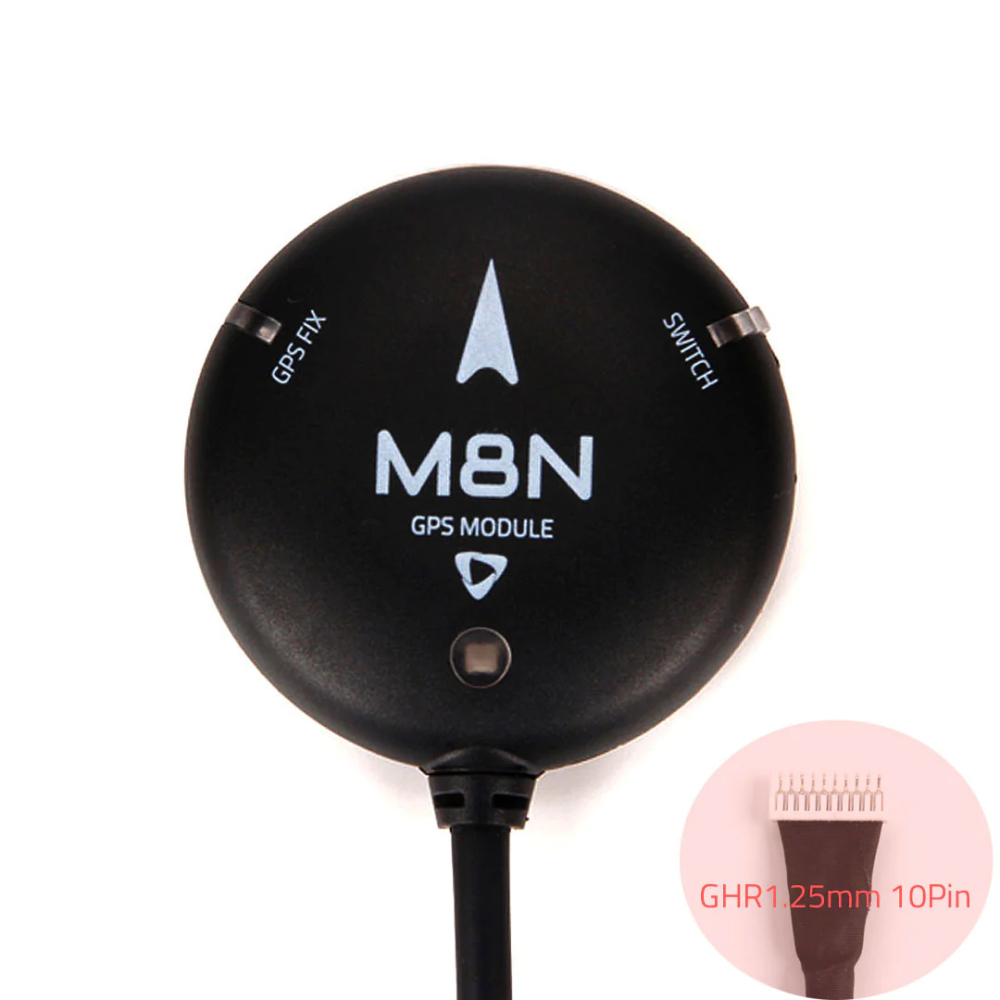

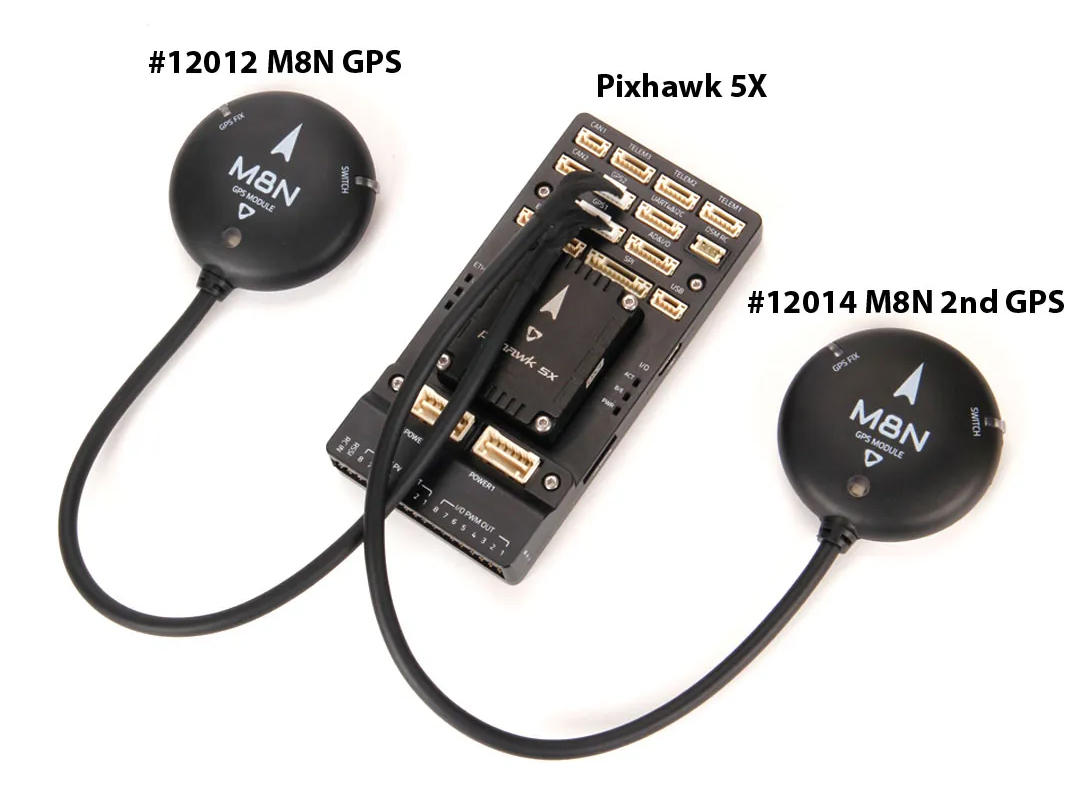

SKU12012 Holybro M8N GPS (JST GHR1.25mm 10pin cable):

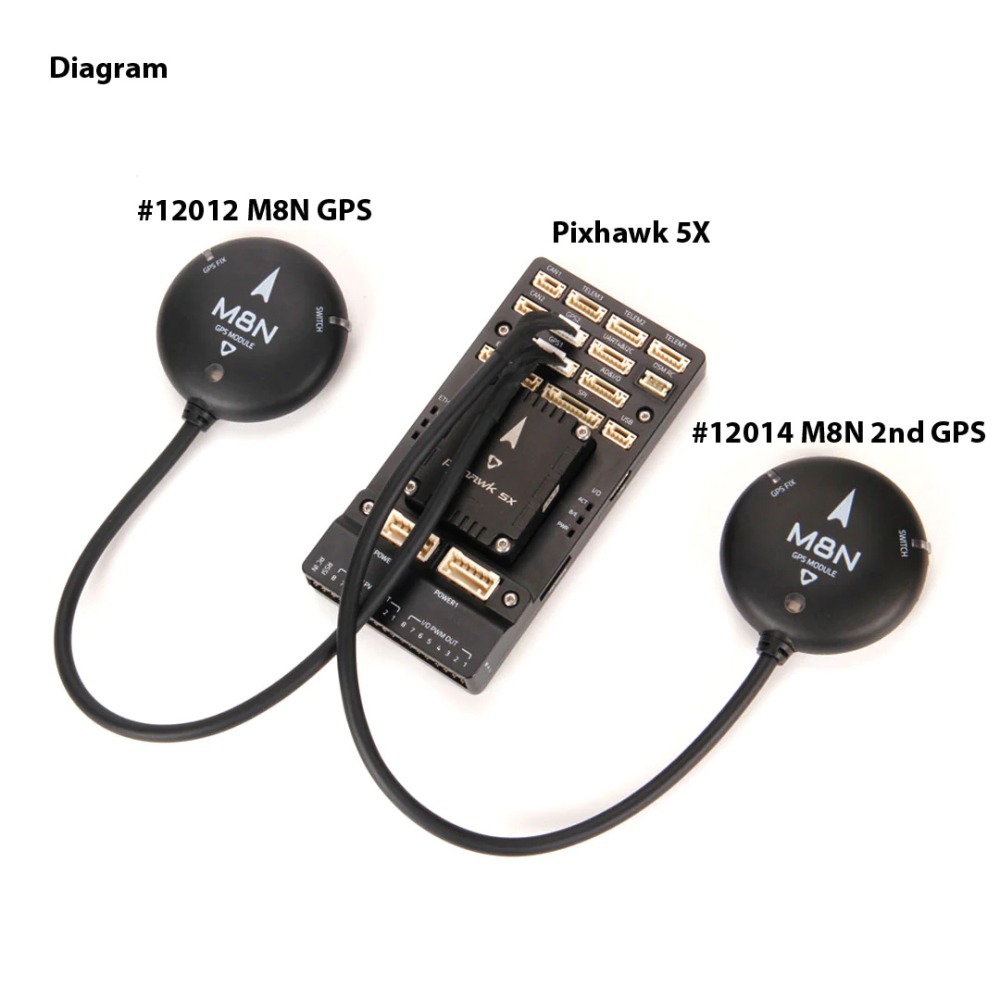

This JST GH 10Pin connector can be used on Pixhawk Standard Flight Controller 10pin“GPS Module”or "GPS1" input port.

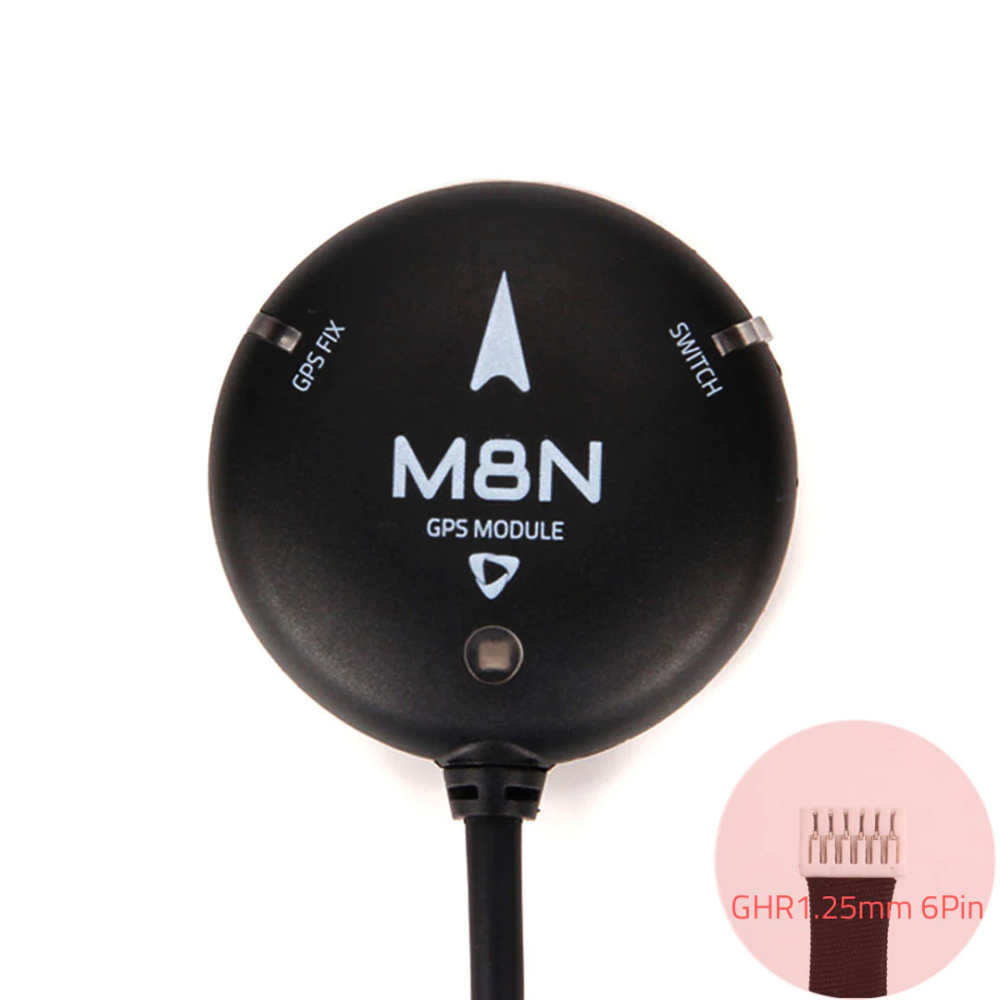

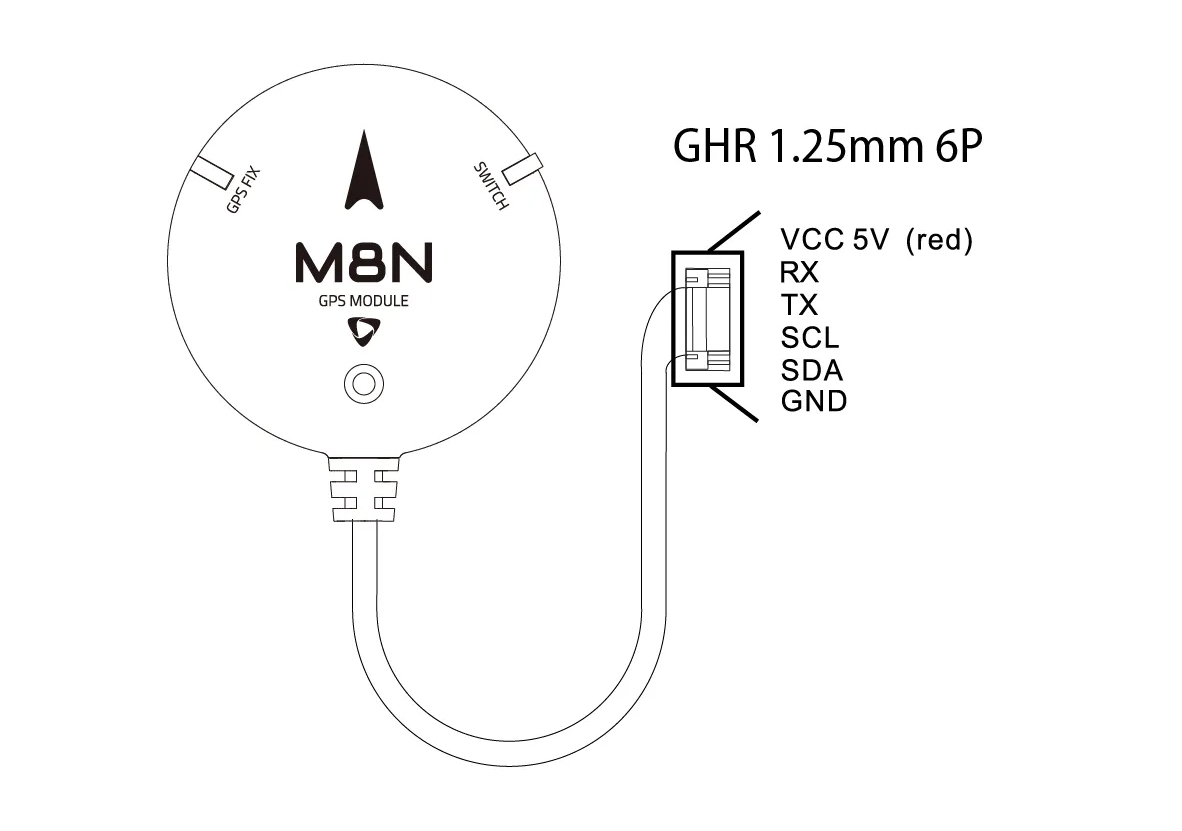

SKU12014 Holybro M8N 2nd GPS(JST GHR1.25mm 6pin cable)：
This JST GH 6Pin connector can be used on Pixhawk Standard Flight Controller 6pin“UART & I2C”or "GPS2" input port as secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

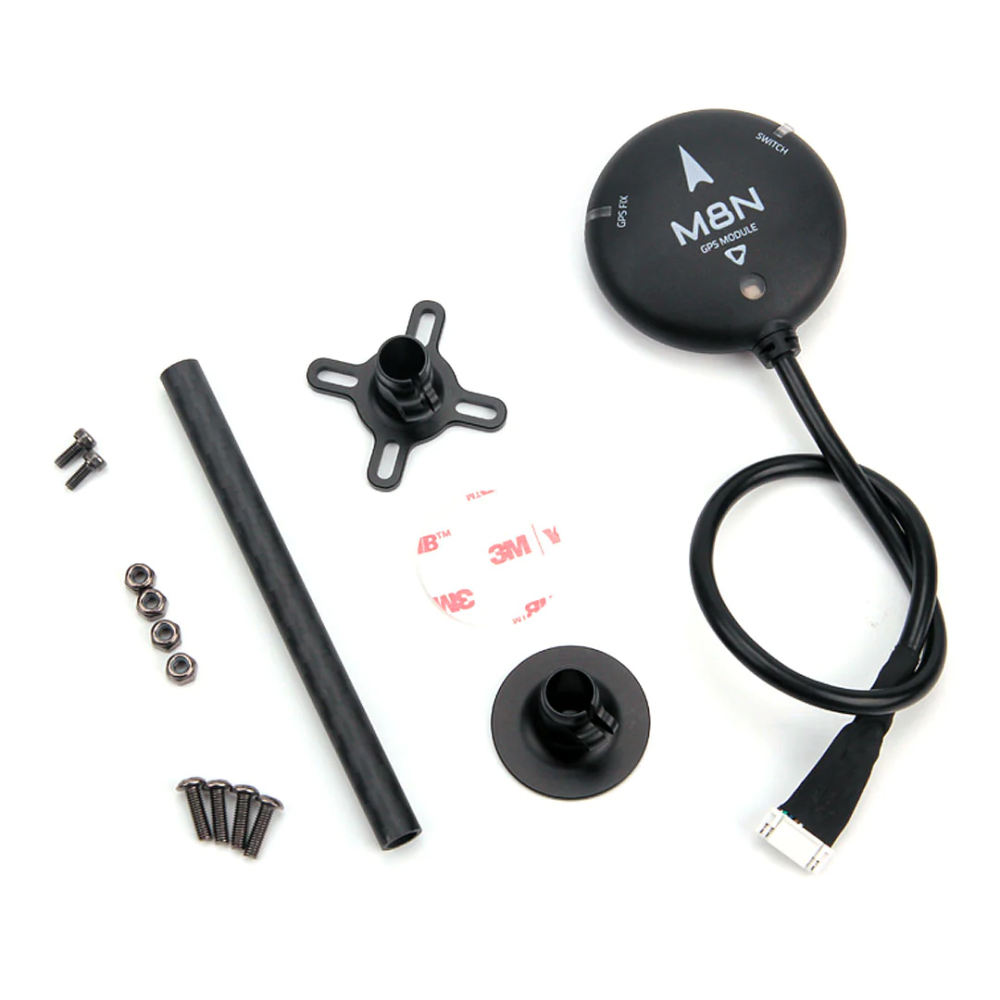

Package Includes:
NEO-M8N with compass module *1

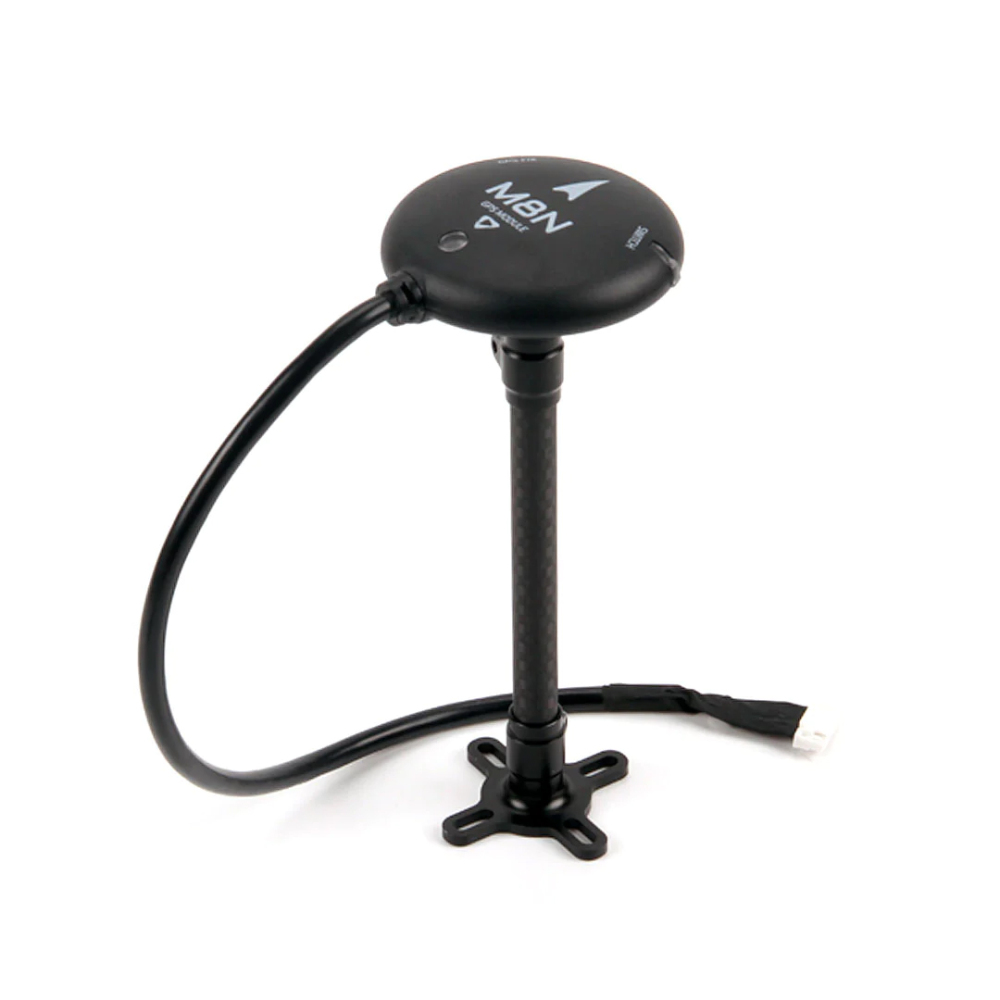

Folding pedestal mount *1
Carbon rod 70mm & 140mm *1

Note: Due to the button battery in the GPS, shipping takes longer than usual.
