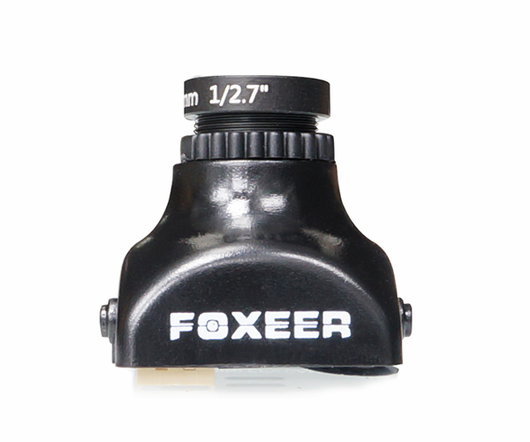

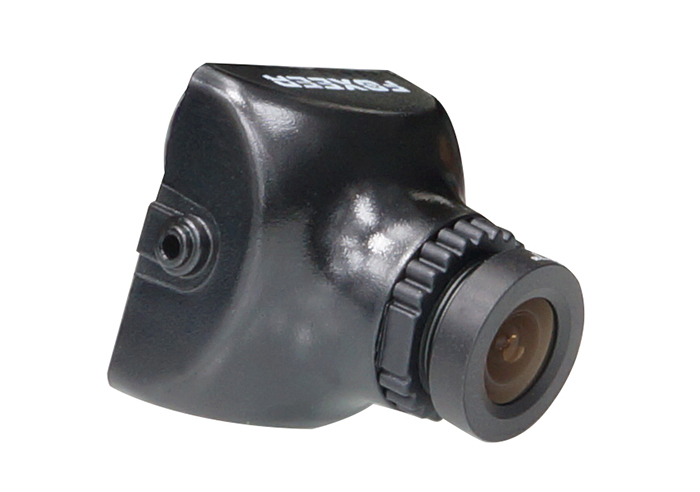

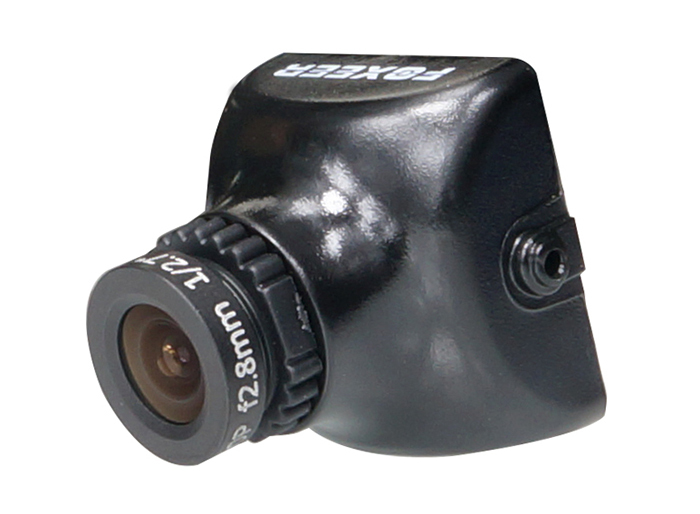

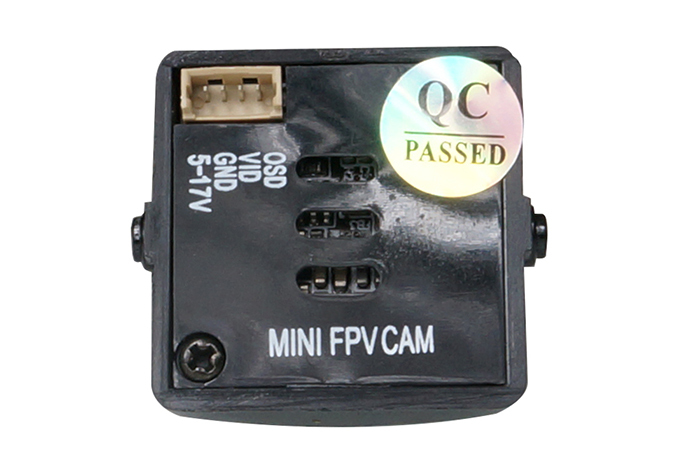

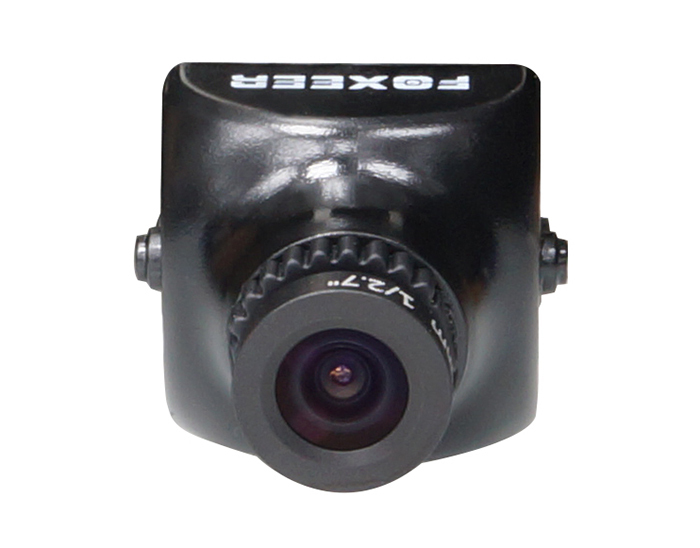

Foxeer XAT700M HS1177 fpv mini camera is specially designed for FPV. It perfoms well in both bright and dark condition with 700TVL high quality image. With the 26 x 26mm small size, it can install on most of the the drones.
Specifications:
Image Sensor: 1/3" High Sensitivity CMOS sensor
Resolution: 700TVL
TV System: PAL/NTSC(based on country)
White Balance: AUTO
WDR: super WDR
Mirror: AUTO
Min. Illumination: 0.1lux
D/N: AUTO
AGC: AUTO
Sync Mode: INTERNAL
Video Output: 1.0Vp-p, 75ohm
DNR: 2D-DNR
Power: DC5~DC17V
Current: 55mA 10%
Operating Temperature: -10℃-50℃
Storage Humidity: 20～95%
Dimension: 26 x 26mm
Package Included:
1 x Foxeer XAT700M FPV camera
1 x Cable
