Main Features:
1. Use powerful & high performance MCU. Users can set functions as their demand, fully embody Intelligent characteristics. Unique circuit design, strong anti-interference.
2. Waterproof design(Note: if there is water in the ESC, Please dry the water at the connectors).
3. Start mode can be set. throttle response fast, and it has a very smooth speed control linearity. Compatible with scale boat & racing boat .
4. Low-voltage protection threshold value can be set.
5. Built-in switch BEC, large power load with servo, lower power dissipation.
6. Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-thermal protection and throttle signal loss protection, make the ESC more reliable.
7. High power safety performance: wherever the throttle lever is, the motor will not start immediately.
8. Over thermal protection: when ESC temperature is over 100 °C， output power will automatically reduce. When it's lower than 80°C output power will return to normal.
9. Cycle menu setting, simple operation. Support setting with program box and transmitter.
Specifications:
| Model | FlyMonster-50A | FlyMonster-70A | FlyMonster-90A | FlyMonster-120A | FlyMonster-150A |
| Battery | 2-6s | 2-6s | 2-6s | 2-6s | 2-6s |
| Con.Current | 50A | 70A | 90A | 120A | 150A |
| Burst Current(10s) | 300A | 420A | 540A | 720A | 900A |
| BEC | 5.5V/5A | 5.5V/5A | 5.5V/5A | 5.5V/5A | 5.5V/5A |
| Weight | 90G | 101G | 102G | 155G | 169G |

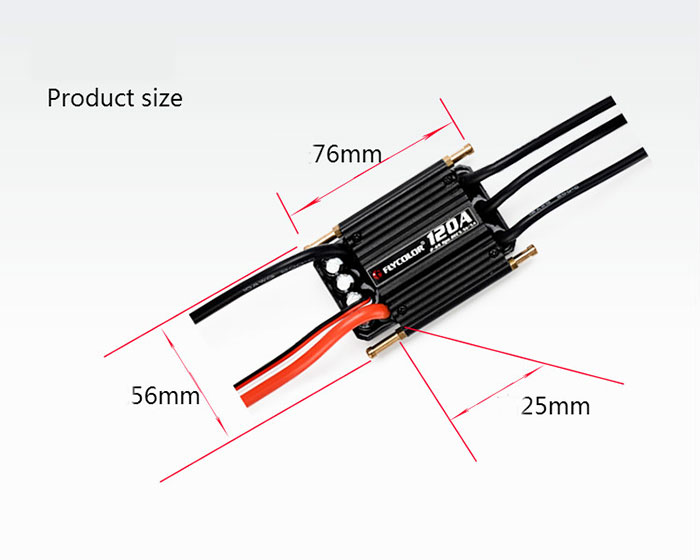

| Size | 57×49×18mm | 57×49×18mm | 57×49×18mm | 76×56×25mm | 76×56×25mm |
| Applications | Boat length＜55cm | Boat length＜70cm | Boat length＜100cm | Boat length＜120cm | Boat length＜135cm |
