Product Description

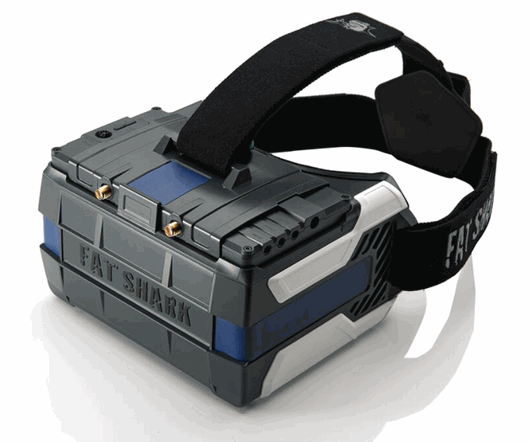

This FSV1104 bundle is a complete goggle kit with the HD monitor preinstalled into the Full Panel Viewer. In this configuration, the goggles enjoy the cost of a single panel design but in a form and comfort factor closer to micro display type goggles. The patented folded optics allow both eyes to converge onto the single display in a viewer that is less than half the size of all previous single panel style headsets. A bottom mounted access panel can be opened to change the optics for different magnifications (sold separately)
Main Features:
5.5 inches LCD screen with 1280 x 720p resolution
FOV 47 degrees (full panel viewer)
Support 16:9 and 4:3 analog display
Support side by side image for binocular viewing (analog only)
High definition media interface for 720p HD display
Built-in 5G8,32CH antenna diversity receiver
Specifications (FSV1101 Monitor):
| Electrical |
| Receiver: 4 Bands, 32 Channels, 5G8Antenna diversity receiver |
| Channel CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 Fat Shark: 5740 5760 5780 5800 5820 5840 5860 5880 Mhz Race Band: 5658 5695 5732 5769 5806 5843 5880 5917 Mhz Band A: 5865 5845 5825 5805 5785 5765 5745 5725 Mhz Band E: 5705 5685 5665 5645 5885 5905 5925 5945 Mhz |
| Working Voltage: DC input 7- 13V 500mah@7.4V (RF mode) / 320mah@7.4V (AV mode) |
| Channel: selected by buttons (up/down) |
| Mechanical |
| Grey/Orange plastic Threaded tripod mount, compatible snap fit with viewer modules |
| Display |
| 5.5in LCD Screen, 720P No Blue Screen, true snow if no signal |
| Resolution: 1280x720p, True 720P HD |
| Display Ratio: 16:9 / 4:3 |
| Brightness: 300cd/m2 |
| Working environment: -20~60℃ |
| PAL or NTSC auto selection |
| Operating Language: English Only |
| OSD Icons: Receiver Band, Receiver Channel, Brightness, Contrast,disappear after 2s |
| OSD menu for display mode selection: 1. RF SPLIT 2.AV SPLIT 3. RF 16:9 4. RF 4:3 5. AV 4:3 6.HD |
| Operation |
| Exceed 10s after power on, display mode selection is not available |
| Auto save settings after power off |
| Controls |
| Channel/band up button |
| Channel/band down button |
| Brightness / Contrast 5 way joy switch |
Specification (FSV1103 Full Panel Viewer):
Grey/white, black (removable) face foam
3 harness head strap (side, top)
Resolution: 1280 x 720 (720p HD)
FOV= 47 degrees (16:9 mode)
Display Ratio: 16:9 / 4:3
Brightness: 250 cd/m2 (50% brightness loss due to viewer optics)
Package Included:
1 x FSV1101 720p monitor with diversity receiver (antenna not included)
1 x FSV1103 HD Full Panel Viewer
1 x 18650 cell Li-Ion battery holder (battery and charger not included)
1 x Power Extension cable
1 x Manual
1 x Cleaning cloth
