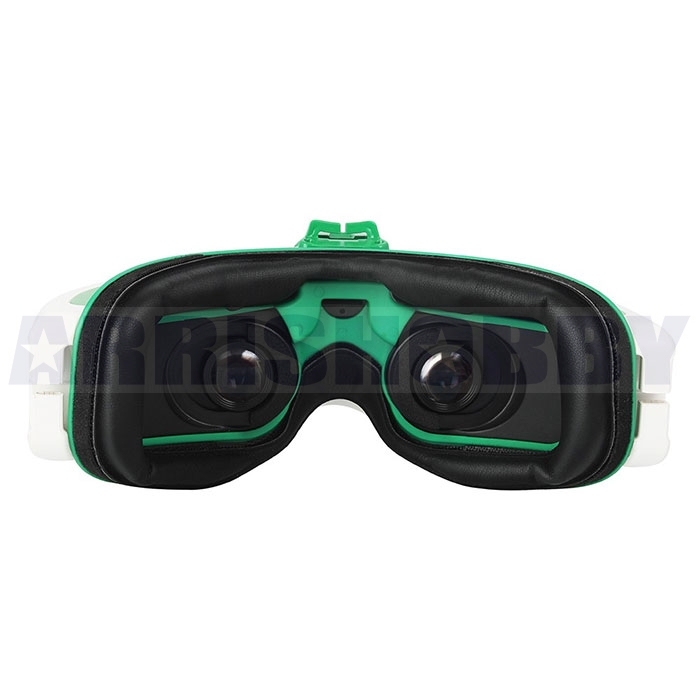

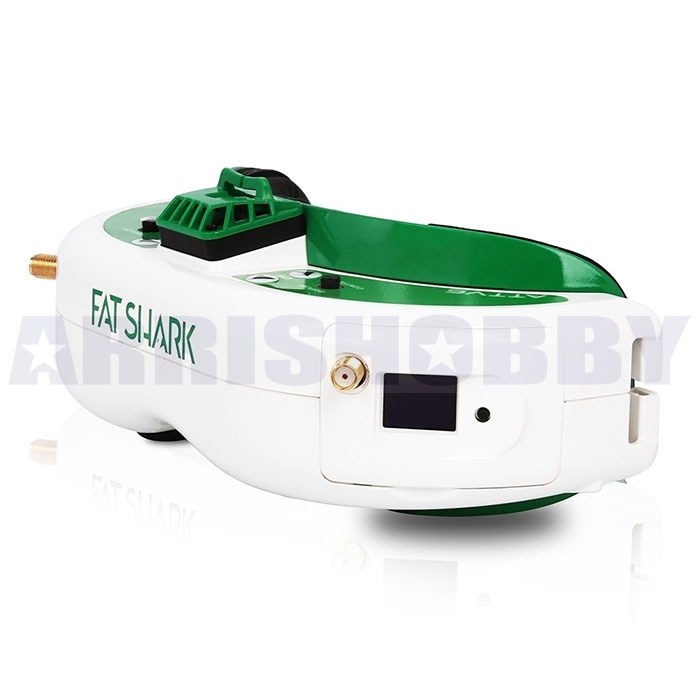

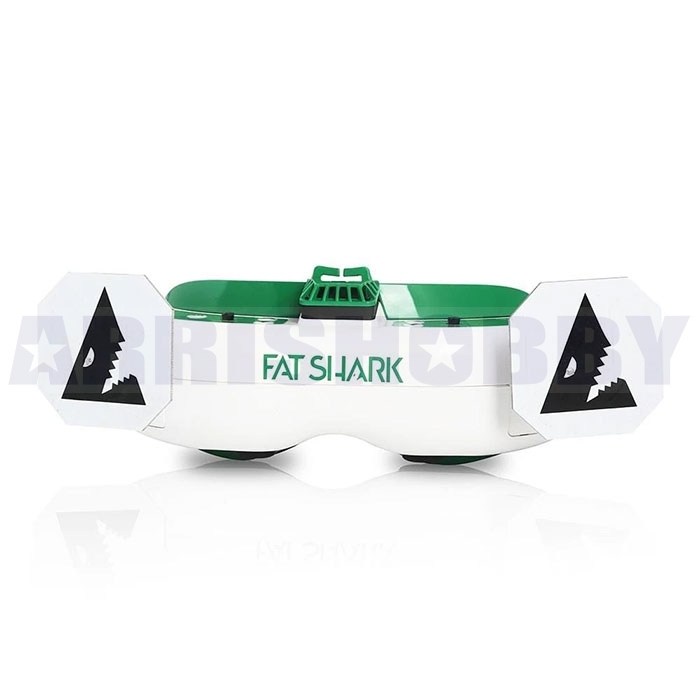

FatShark Attitude V6 FPV Goggles Headsets with DVR

BA0060
Price:
    Please select the information you wantX
Quantity:
-
+
(40 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Fat Shark Attitude V6 modular UVGA LCOS FPV goggles with integrated DVR for analog recording is only available in US warehouse. We could only ship to US based address only.

Specification:
Optics:
FOV (field of view): 39 degrees diagonal
IPD (interpupillary distance): 54 to 74 mm (adjustable)
Focus: +2 to -6 diopters (adjustable)

Display:
Two 0.4” LCOS displays
Resolution 1280 X 960
NTCS/PAL auto selecting
AV Mode 4:3
AV Mode 16:9
HDMI Mode 16:9

Audio: Stereo

Electrical:
Power Supply: 7 – 13V input voltage (2S – 3S Supply)
Power Consumption:
320mA @ 7.5V input power (no RX module)
770mA @ 7.5V input power (Rapid

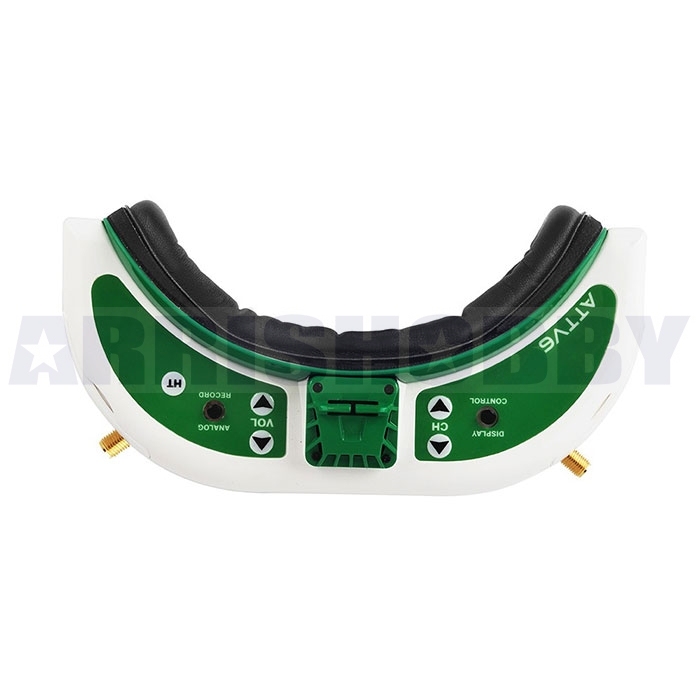

User Controls:
Channel Selection
Volume Control
Mode Selection
Display Control (Brightness and Contrast)
DVR Control
Power Button / Fan Control

Analog DVR:
MicroSD support to 32 GB
Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card

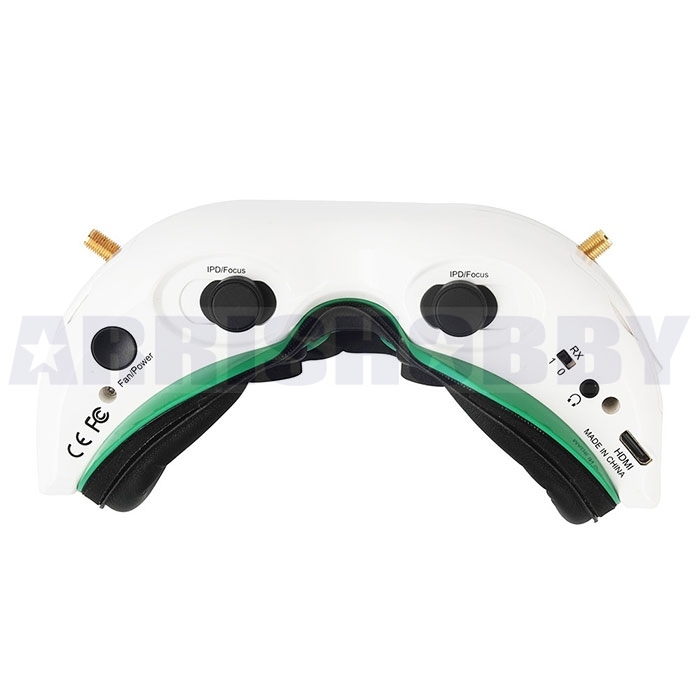

Interface:
3.5mm AV in/out port
Power input port
3.5mm 3p earphone port
MicroSD
RF Module Bay
HT connector 3 pin internal connection
Power Button

Mechanical: Ergonomic molded headset w/ adjustable headband
Dimensions: 169.2 x 80 x 45.5 mm
Weight: 199g
Battery: 7.4V, 1.8A 18650 Battery Case

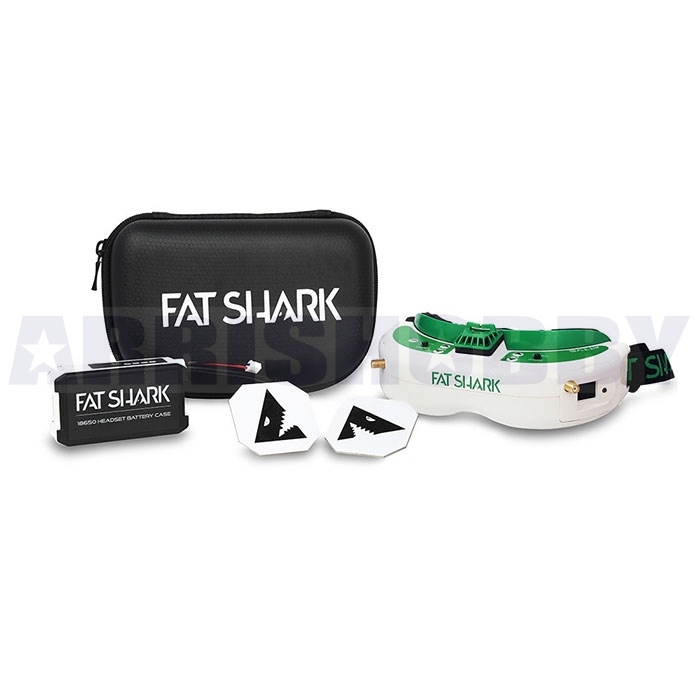

Package included:
1x Fat Shark Attitude V6 FPV Goggles with faceplate
1x Carry Case
1x 18650 Headset Battery Case (batteries not included)
1x True Diversity OLED Receiver already installed in the headset
2x Patch Antennas


Fatshark Attitude V6 User Manual
