EMAX F4 Magnum All in One FPV Electronics Stack

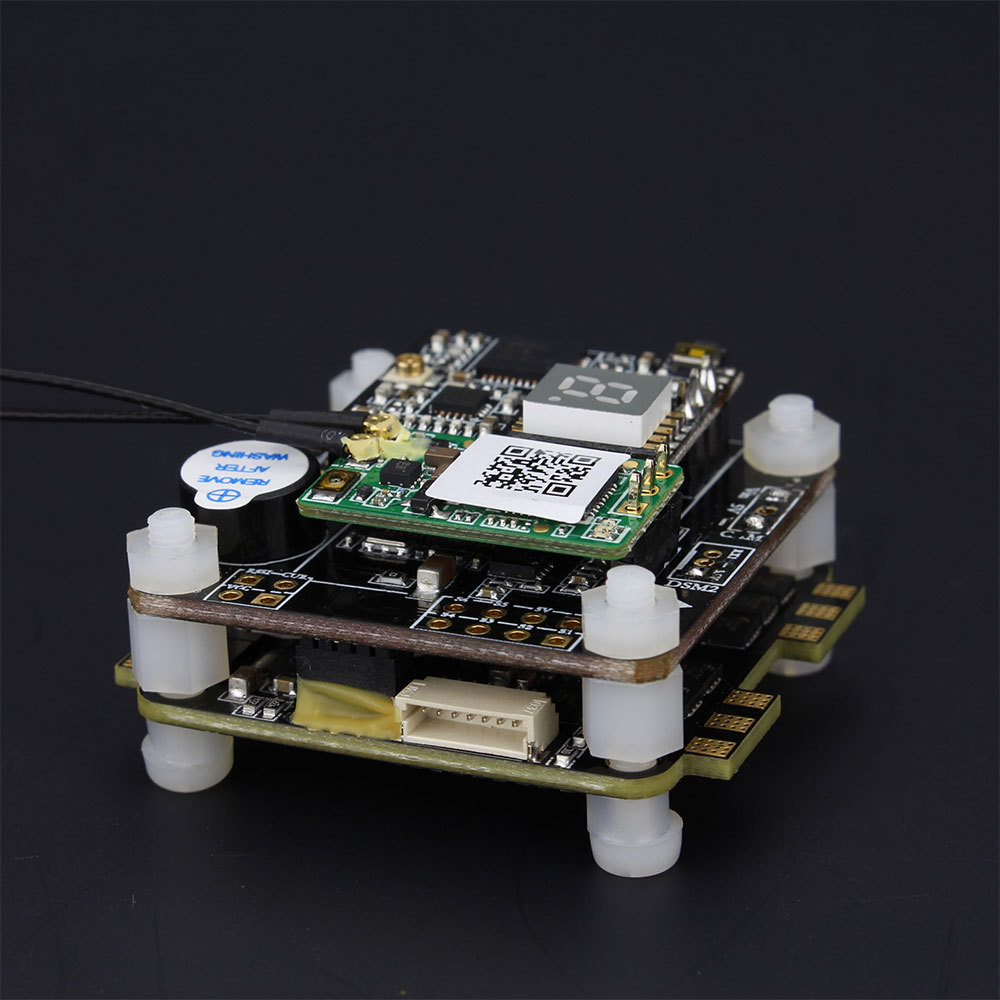

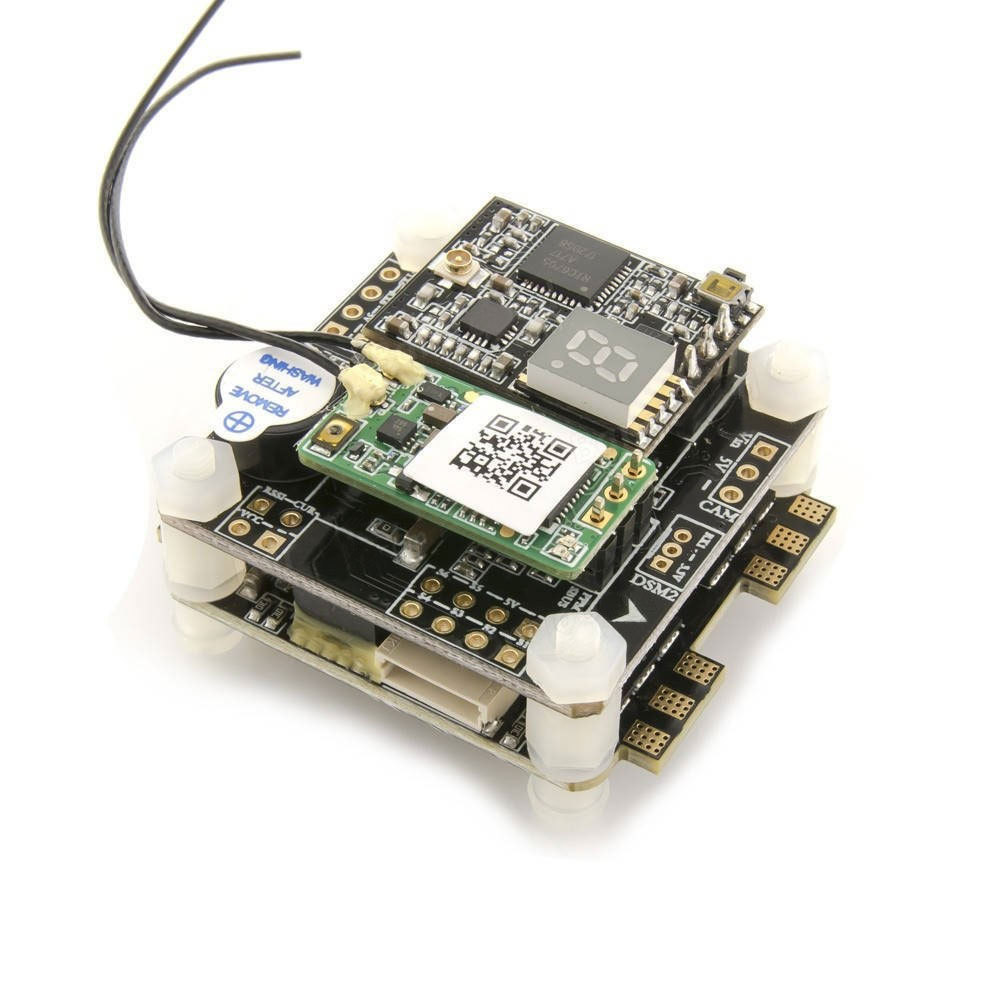

The EMAX F4 Magnum tower system is the complet solution to building a modular racing drone without mess. This tightly integrated systems packs the FC, ESC, RX, VTX, PDB, CURRENT SENSOR and OSD into neatly stacked boards that can be easily serviced or upgraded. The pinned board interconnects offer a clean wire free look and the compact stack can fit even the tightest builds with easy.
6 in 1 Main Board - F4 FC + Betaflight OSD + LC Filter + 5v Regulator + Blackbox + Buzzer
The heart of the flight control systems is a powerful STM32F405 MCU and MPU6000 gyro flashed with Betaflight for proven rocksteady flight stability. The integrated LC filter with 5v/3A voltage regulator means clean power for all the FC/OSD components and other attached boards such as VTX, RX and FPV Camera. Betaflight OSD with easily customizable layout of vital flight information and ability to change FC flight parameters. Blackbox flight log recorder with 16mb flash memory. On board buzzer for battery level warning or lost model finder functions.
48 Chanel 5.8ghz Switchable Power VTX Board
VTX allows for easy change of VTX channel/band via push button. Also transmit power is switchable from 25mw to 200mw. Included is a lightweight 5.8ghz dipole whip antenna or 80mm extension cable with SMA connecter for use with your own antenna.
Frsky XM+ 16ch Sbus Micro RX Board
Genuine FrSky XM+ receiver is included with 16 CH with RSSI. It possible to connect other brands of Serial or PPM via the dedicated RX pads.
Bullet 30A - 4 in 1 ESC + Current Sensor Board
The ESC system is comprised of 4 x 30A continuous Bullet ESC’s using top quality MOSFETs and running BLHeli_S firmware. Your choice of protocol: DSHOT, Multishot, Oneshot 125. The onboard current sensor monitors mAh consumed and pass the information to OSD for an accurate way to monitor battery level and peak power consumption.
Specifications:
6 in 1 Main Board |
Flight controller (OMNIBUSF4 Firmware) |
VTX Board |
Frequency band:5362-5945MHz |
4 in 1 ESC and Current Sensor Board |
Continuous current 30A and 40A burst per motor |
Receiver Board |
Genuine FrSky XM+ receiver |
Net Weight |
23g |
Size |
36 x 36mm |
Height |
The total height of whole F4 Magnum tower system with standoff kit installed is about 24mm to 25mm. |

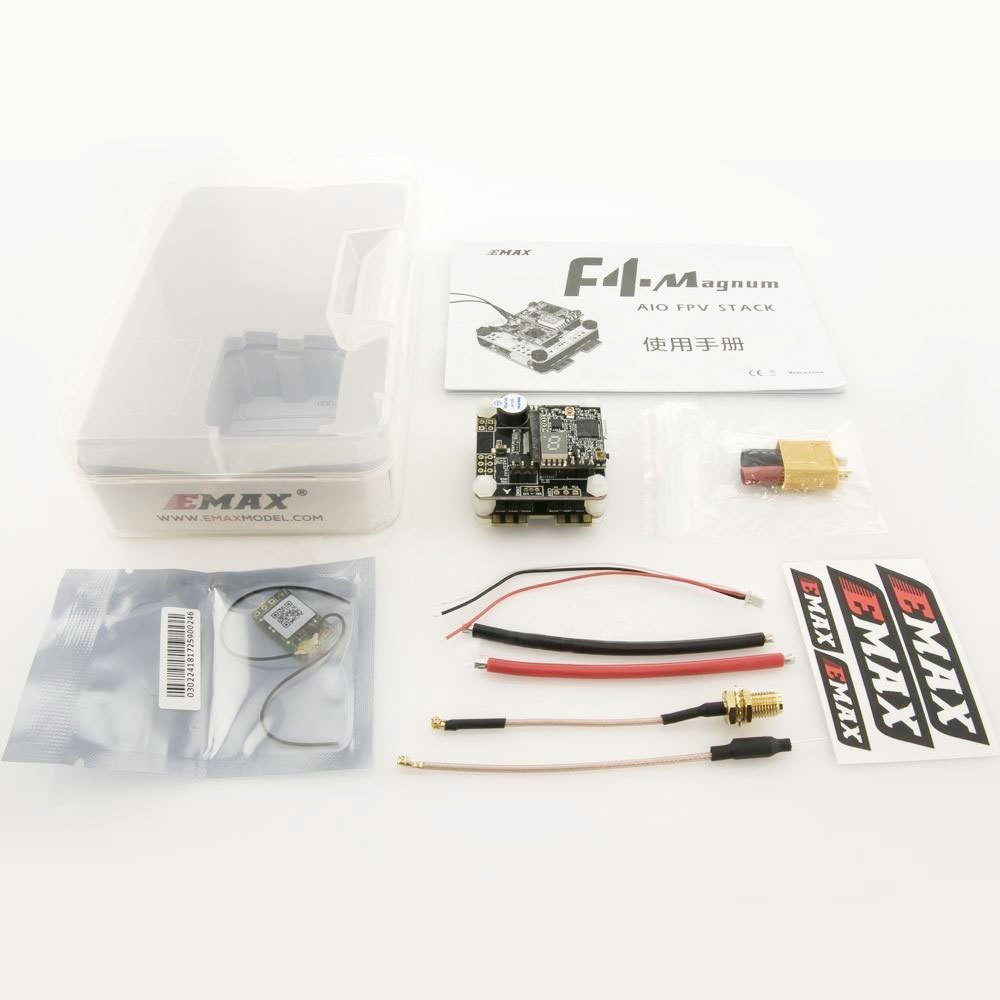

Package Included:
1 x Emax F4 Megnum Stack
1 x B-017 XT60 female connector
1 x Hot-shrinkable tube Φ4.5*0.2*L20mm red
1 x Hot-shrinkable tube Φ4.5*0.2*L20mm black
1 x Silicon wire 14AWG L=80mm red
1 x Silicon wire 14AWG L=80mm black
1 x Antenna adapter with SMA female connector L=80mm
1 x 5.8G Dipole Whip antenna L=100mm
1 x Plug with wire for LED_Strip
Standoff kit including nylon spacers, nylon screws, posts and nuts
Note: The ESC board and FC board have been changed to be in black since the second batch.
