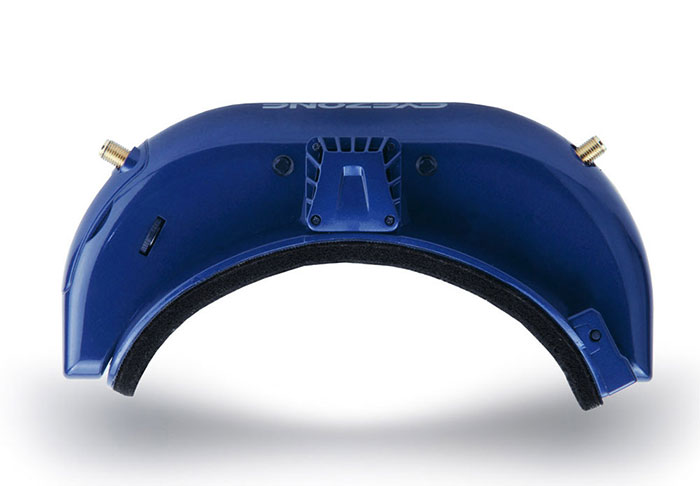

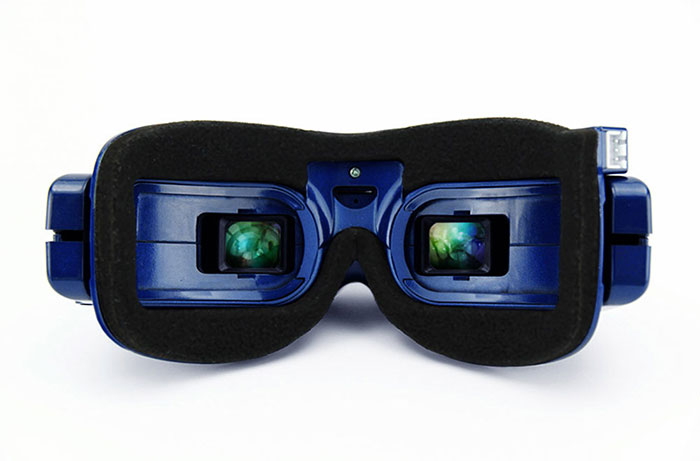

| EyeZone Yuan Goggle Specifications | |

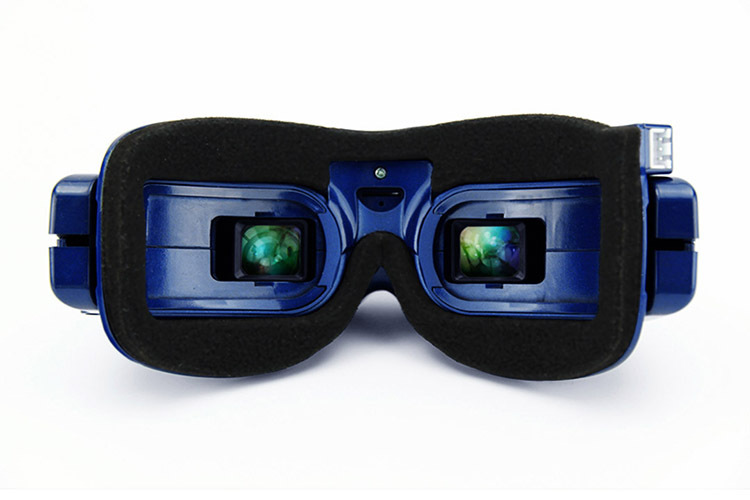

| Optics: | |
| FOV (field of view) | 28° |
| Type | plastic optics |
| Interpupillary Distance (IPD) | 59 to 69 mm (adjustable) |
| Optional Diopter Lens Inserts | -2, -4, -6 dpt （compatible with Fatshark diopter lens） |
| Display | 640x480 VGA |
| NTCS/PAL auto selecting | |
| Audio | Stereo |
| User Controls | Channel Selection |
| Volume Control | |
| Mode Selection (Wired/Wireless) | |
| Display Control | |
| DVR Control | |
| Electrical | |
| Battery | 7.4V 1000mah lipo battery |

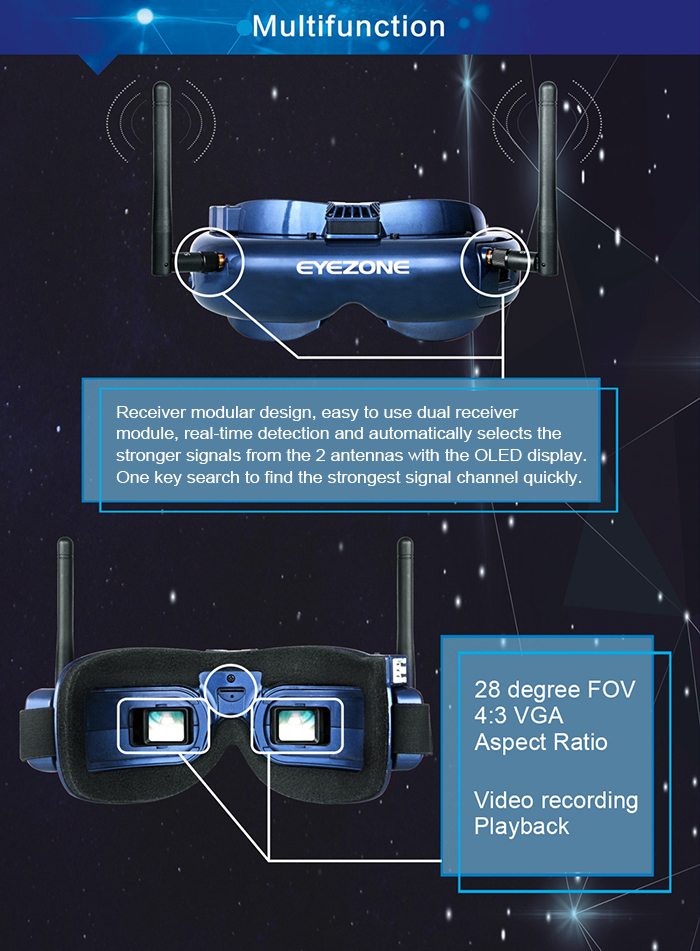

| Receiver Module | Dual receiver module with OLED display |
| DVR | Video recording MicroSD support to 32 GB Video file AVI format File playback Upgradeable via SD card Files can be saved automatically when power off |
| Interface |
DC Power port |
| Mechanical: | |
| Weight | 152 g |
| Package size | 742.5g, 21x 14 x 11cm |

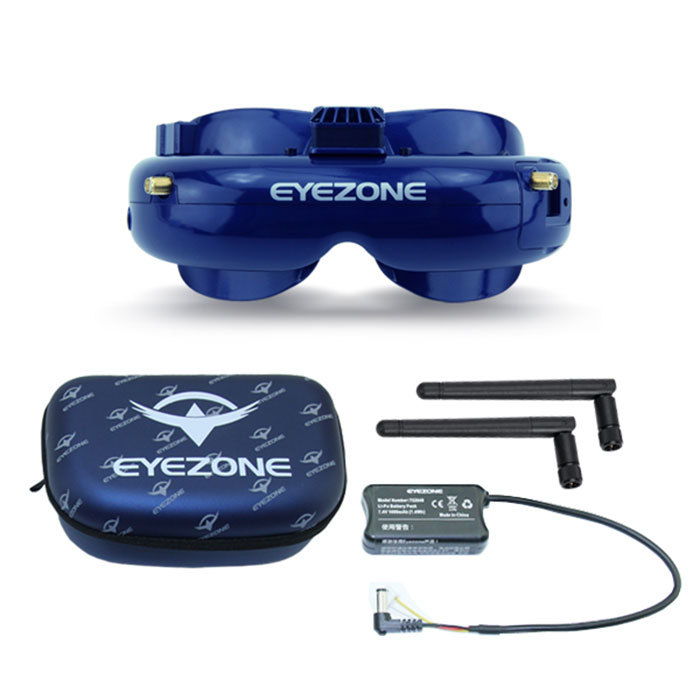

Package Included:
Eyezone Yuan FPV goggle x 1
5.8GHz antenna x 2
7.4v 1000mAh battery x 1
Zipper case x 1
