EMAX RSII series motors takes superior design points from both the Race Spec and Lite Spec series motors in order to keep any pilot in the air longer, and faster than anyone else.

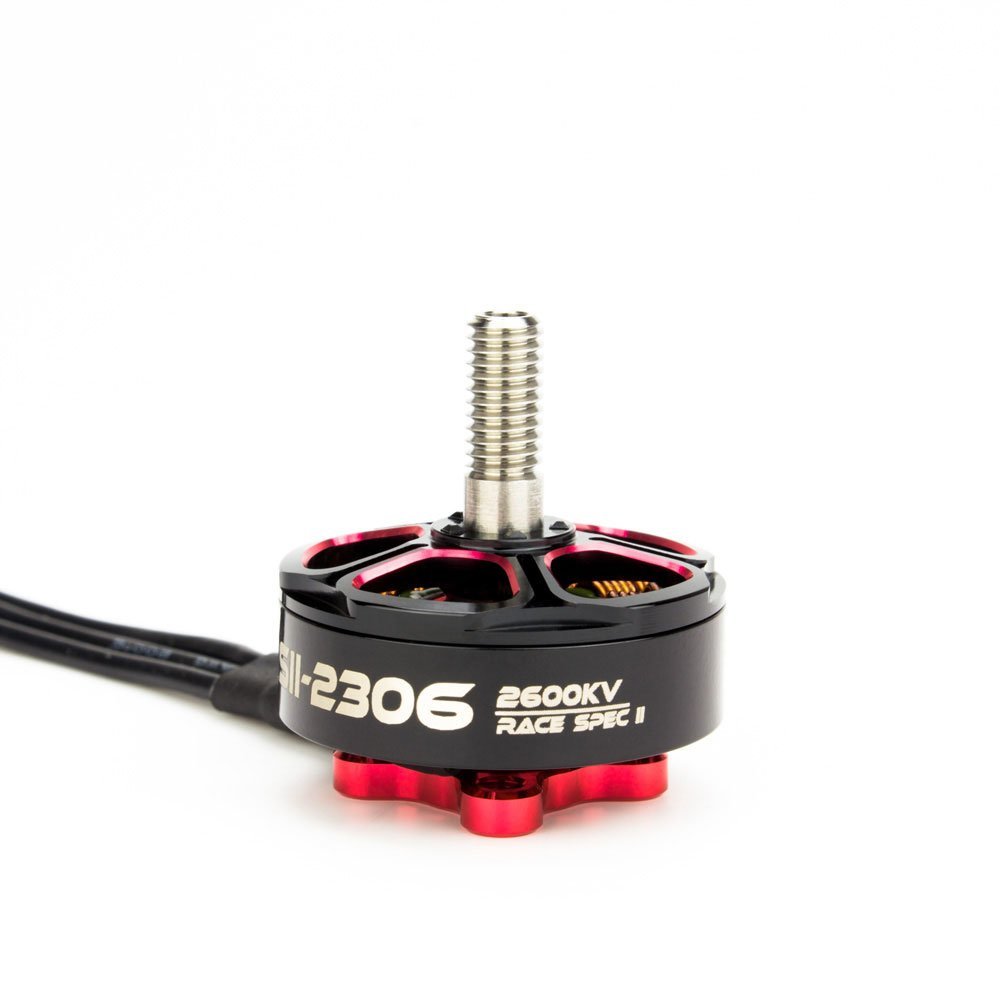

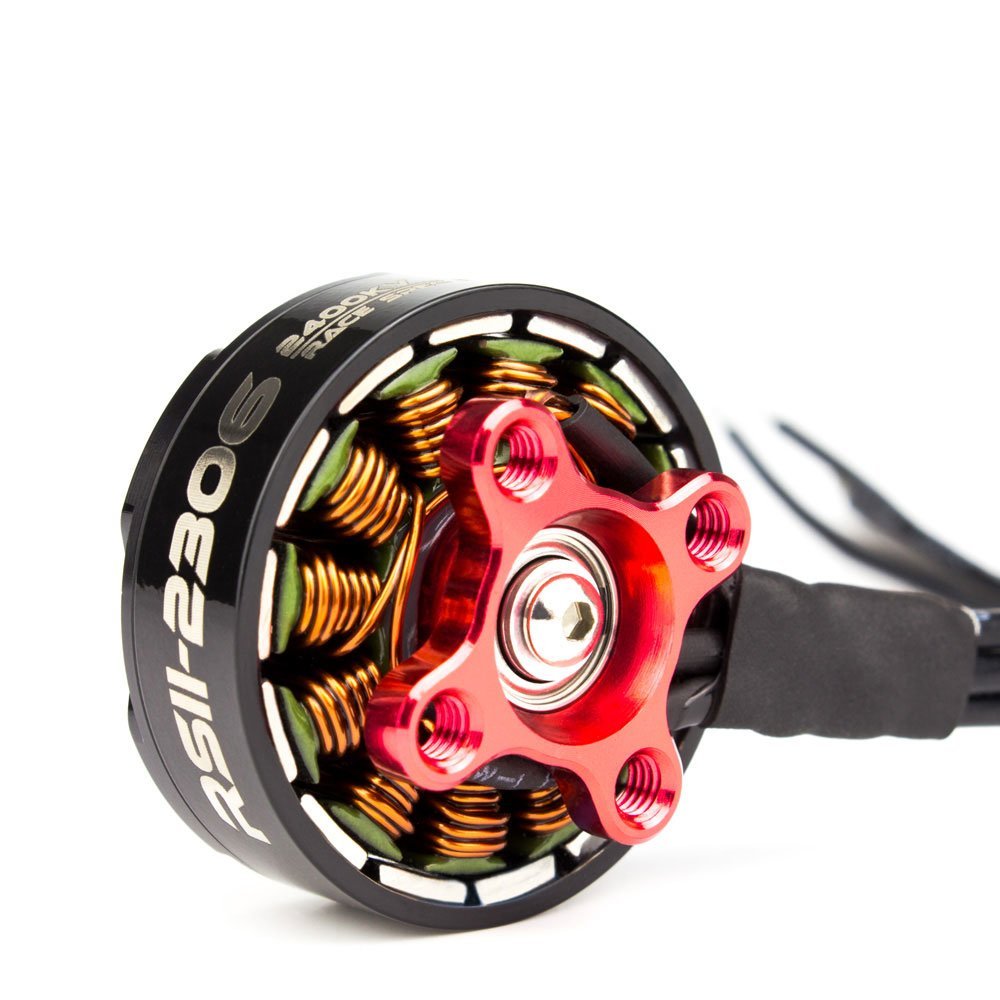

EMAX RSII 2306 2600KV Brushless Motor features a strengthened Titanium Hollow Shaft, Arc Magnet technology, paird together with single wind copper wires, the motor is durable, light in weight (only 26.1g), powerul and high efficiency.
Specifications：
Framework: 12N14P
Length: 30.2mm
Diameter: 27.7mm
No. of cells: 3-4s 2300-2700kv range
No. of cells: 3-6s 1500-1900kv range
Propeller: 5" - 5.5"

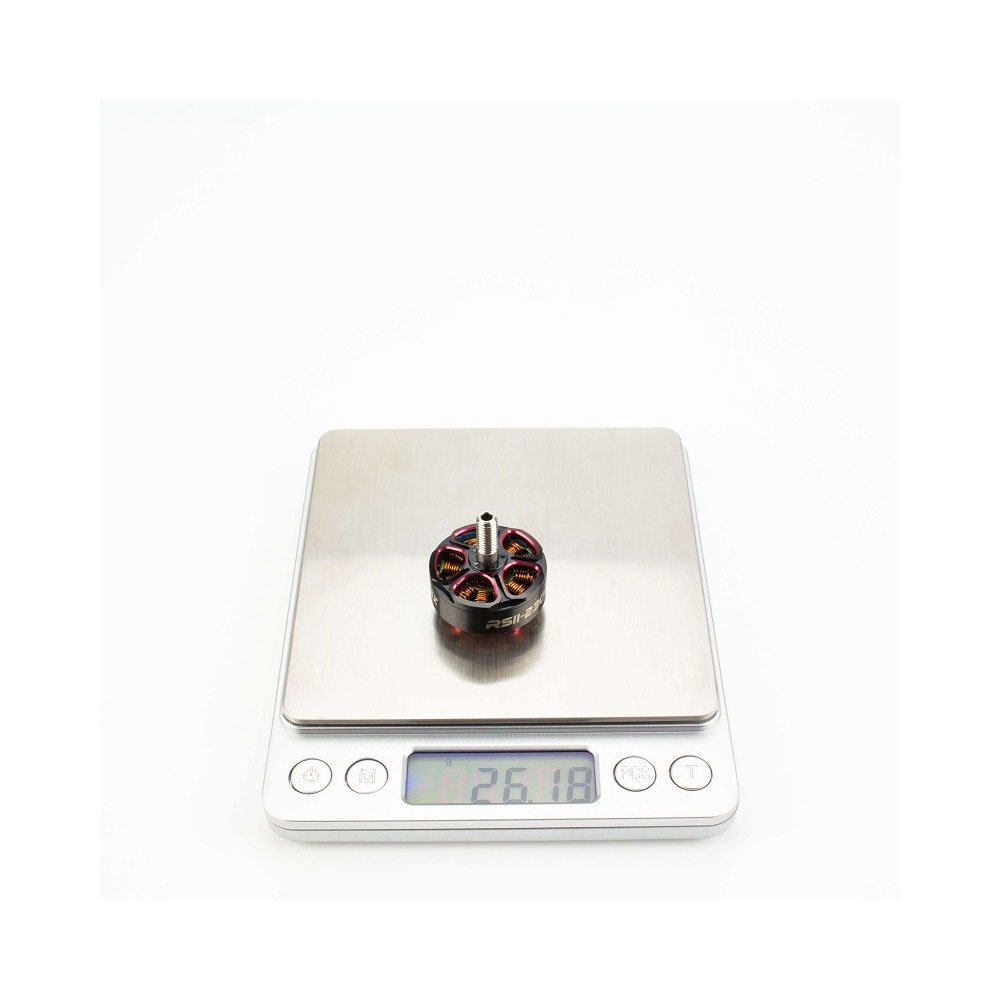

Light Weight: 26.6g (W/O Silicone Wire)
Prop adapter: M5
Bearing Shaft: 4mm
Shaft Thread: CW and CCW
Main Features:
EZO bearing
Titanium shaft
Dual anodizing
16x16mm hole pattern
Single copper winding
115mm 20 AWG silicone wire
Package Includes:
5X M3X7 Screw
5X M3X6 Screw
1X Aluminum M5 nylock nut
1X Washer and screw for shaft
| Motor type |
The voltage (V) |
Propeller |
current （A） |
thrust (G) |
power (W) |
efficiency (G/W) |
speed (RPM) |
| RSII2306-2600KV | 16.8 | DALPROP 5040 | 4.7 | 300 | 78.96 | 3.80 | 14690 |
| 16.8 | 9 | 500 | 151.20 | 3.31 | 18640 | ||
| 16.8 | 14 | 700 | 235.20 | 2.98 | 21800 | ||
| 16.8 | 39.6 | 1510 | 665.28 | 2.27 | Max | ||
| 16.8 | DALPROP 5050 | 4.7 | 300 | 78.96 | 3.80 | 12390 | |
| 16.8 | 9.3 | 500 | 156.24 | 3.20 | 15760 | ||
| 16.8 | 15.1 | 700 | 253.68 | 2.76 | 18650 | ||
| 16.8 | 54.6 | 1710 | 917.28 | 1.86 | Max | ||
| 16.8 | DALPROP T5046C | 4.6 | 300 | 77.28 | 3.88 | 13010 | |
| 16.8 | 9 | 500 | 151.20 | 3.31 | 16450 | ||
| 16.8 | 14.1 | 700 | 236.88 | 2.96 | 19270 | ||
| 16.8 | 49.3 | 1720 | 828.24 | 2.08 | Max | ||
| 16.8 | HQ 5.5*4*3 |
4.2 | 300 | 70.56 | 4.25 | 12100 | |
| 16.8 | 8.2 | 500 | 137.76 | 3.63 | 15270 | ||
| 16.8 | 13.3 | 700 | 223.44 | 3.13 | 17890 | ||
| 16.8 | 51.4 | 1880 | 863.52 | 2.18 | Max | ||
| 16.8 | HQ 5*4.3*3 |
4.5 | 300 | 75.60 | 3.97 | 13460 | |
| 16.8 | 9.1 | 500 | 152.88 | 3.27 | 17020 | ||
| 16.8 | 13.8 | 700 | 231.84 | 3.02 | 20450 | ||
| 16.8 | 42.7 | 1630 | 717.36 | 2.27 | Max | ||
| 16.8 | HQ 5*4.8*3 |
4.6 | 300 | 77.28 | 3.88 | 12950 | |
| 16.8 | 9.1 | 500 | 152.88 | 3.27 | 16290 | ||
| 16.8 | 14.4 | 700 | 241.92 | 2.89 | 19380 | ||
| 16.8 | 47.5 | 1710 | 798.00 | 2.14 | Max | ||
| 16.8 | GF 5045-3 |
4.6 | 300 | 77.28 | 3.88 | 14540 | |
| 16.8 | 9.2 | 500 | 154.56 | 3.23 | 18830 | ||
| 16.8 | 14.3 | 700 | 240.24 | 2.91 | 21830 | ||
| 16.8 | 41.3 | 1520 | 693.84 | 2.19 | Max | ||
| 16.8 | EMAX AVAN FLOW 5" |
5.4 | 300 | 90.72 | 3.31 | 12500 | |
| 16.8 | 10.6 | 500 | 178.08 | 2.81 | 15760 | ||
| 16.8 | 17.3 | 700 | 290.64 | 2.41 | 18650 | ||
| 16.8 | 59 | 1490 | 991.20 | 1.50 | Max | ||
