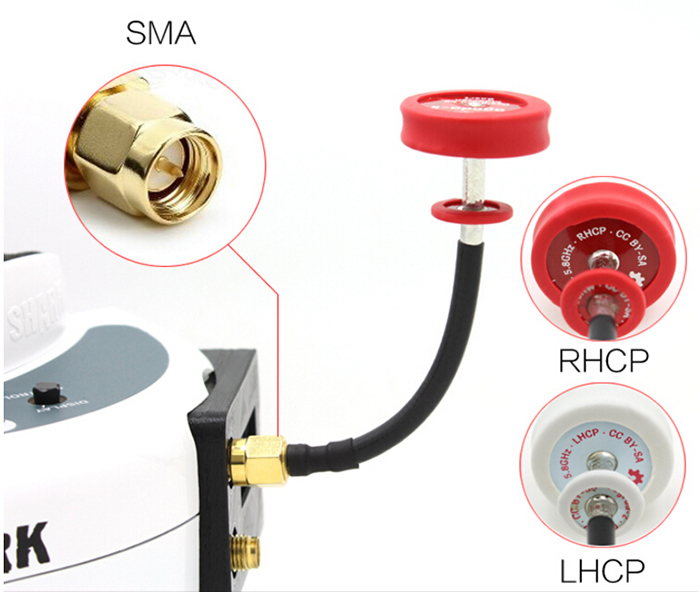

EMAX Pagoda 2 5.8G Omni FPV Antenna LHCP/RHCP SMA

Name: EMAX Pagoda 2 5.8G Omni FPV Antenna LHCP/RHCP SMA
Brand: ARRISHOBBY
SKU: MA0083-85
Price: 2.99 USD
Availability: OutOfStock

SKU: MA0083-85

0.0 (0)

$2.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

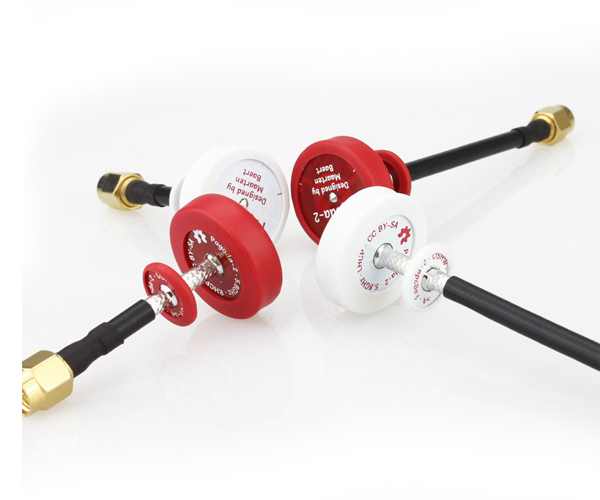

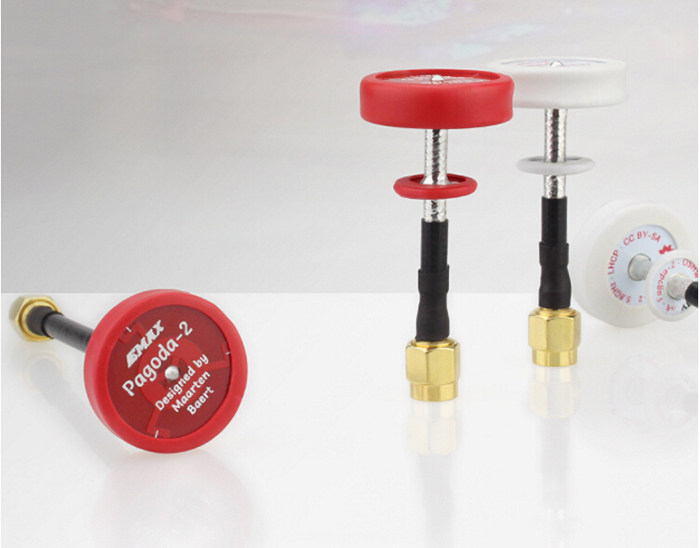

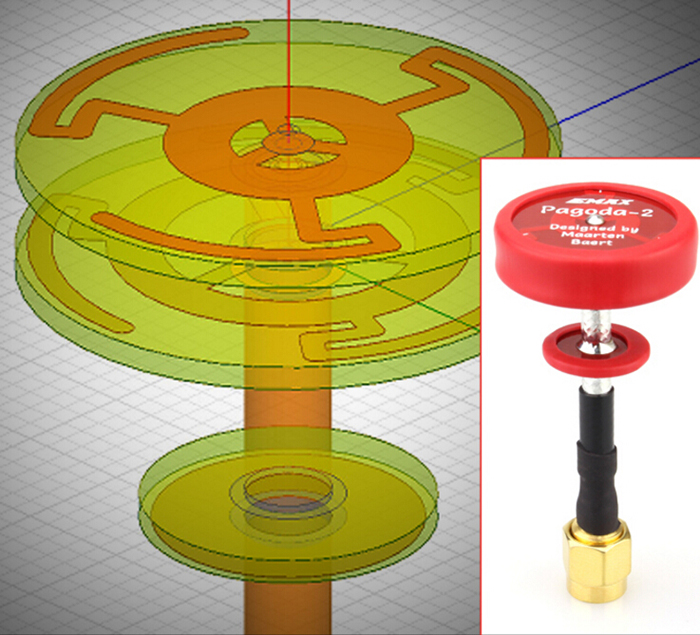

EMAX Pagoda 2 is specially designed 5.8G fpv antenna on the basis of Maarten Baert circularly polarized antenna design.The structure is made of 3 layers of PCB board, which integrated one ounce copper foil.The weight of the antenna is only 8g. It is good for both video TX and video RX.

Spefications:
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)

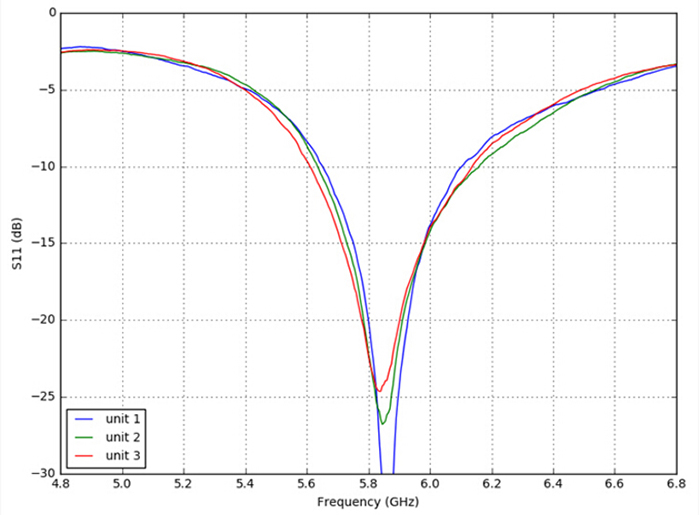

Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%

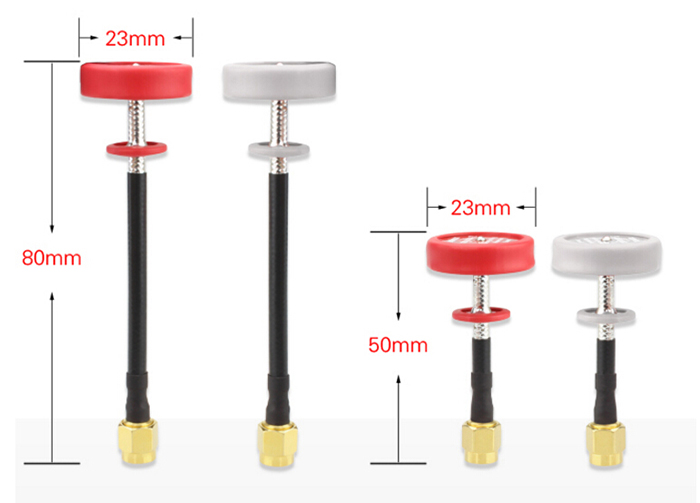

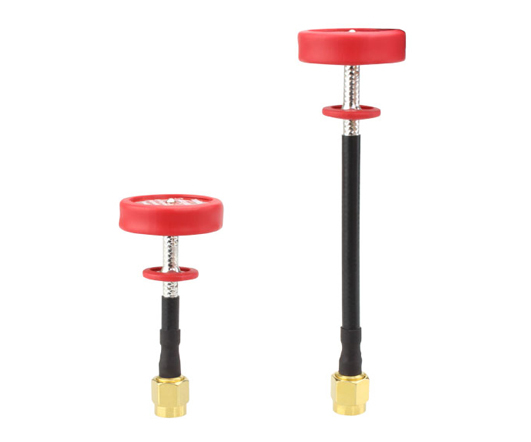

Length: 50mm/80mm (optional)

Package Included:
EMAX Pagoda 2 5.8G omni Antenna x 2
