EMAX FS2208 series motor is great for free stype racign drones. The 2500KV is suitable for 4S, and the 1800KV one is suitable for 6S power supply.
Main Features:
Precision EZO 9x4x4 Bearing
Hollow Steel Shaft
Multi-stranded Motor Winding
16*16mm hole pattern

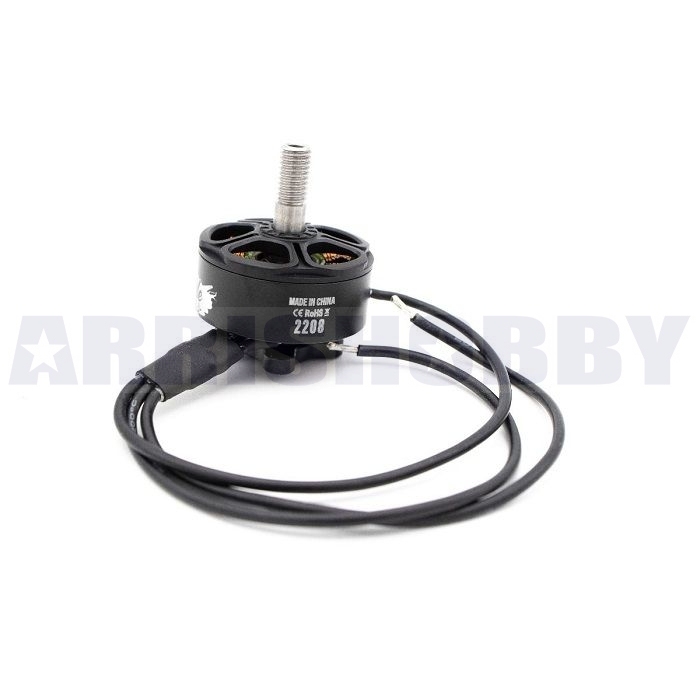

140mm 20 AWG silicone wire
Specifications:
Item Brand: Emax
Item Model: Emax FS2208
Framework: 12N14P

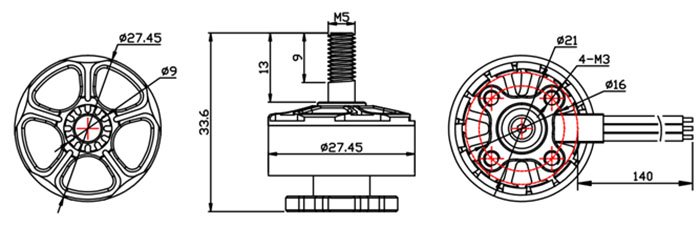

Length: 33.6mm
Diameter: 27.45mm
Propellers:5"-6"inch
No.of cells: 3-4S 2500KV/3-6S 1800KV
Internal Resistance: 36mΩ 2500KV/62mΩ 1800KV
Idle Current(10V): 2.3A 2500kv/1.5A 1800KV
Peak Current:55.6A(4S) 2500KV,47.2A(6S) 1800KV
Max Power: 934.1W (4S) 2500KV/ 1189.4W (6S) 1800KV
Weight: 34.5g 1800KV (W/O Silicone Wire),34.7g 2500KV(W/O Silicone Wire)
Prop Adapter Thread: M5 CW
Package Included:
EMAX FS2208 fpv racing drone motor x 1
