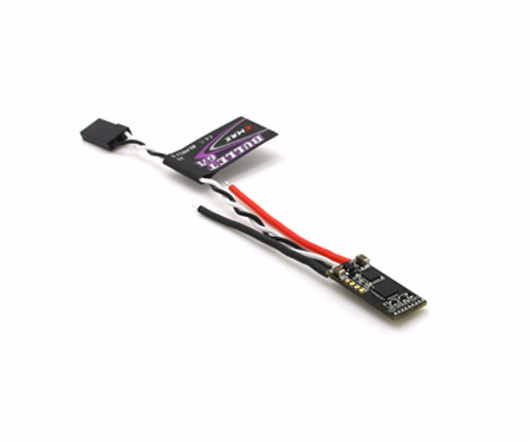

EMAX D-SHOT Bullet Series 12A 2-4S BLHELI_S ESC
(0)
$9.99
1/1
EMAX Bullet series BLHelis_S ESC is mini in size, light in weight,supports dshot and has a great performance on fpv racding drones.
Main Features:
1. Super mini size, ultra-light weight
2. BLHeli-S firmware/Supports DSHOT,MULTISHOT,ONESHOT42,ONESHOT125
3. New Heat design not only reduces the core temperature, but also avoids propeller strike damage
4. Imported MOSFET,Japanese ceramic capacitors,3oz High-TG PCB board, significantly reduces electrical heat soak and improves system efficiency.
Specifications:
| Item | Cons. Curent | Burst Current | Input Voltage | Dimension(L x W)mm | Weight(g)W/O wires | BEC |
| Bullet 6A | 6A | 10A | 2S | 9.4 x 21.5 | 2.1 | NO |
| Bullet 15A | 15A | 25A | 2S-4S | 11.9 x 19.6 | 3.5 | NO |
| Bullet 20A | 20A | 30A | 2S-4S | 11.9 x 19.6 | 3.5 | NO |
| Bullet 30A | 30A | 35A | 2S-4S | 11.9 x 19.6 | 3.9 | NO |
| Bullet 35A | 35A | 40A | 3S-6S | 14.4 x 29.0 | 6.3 | NO |
