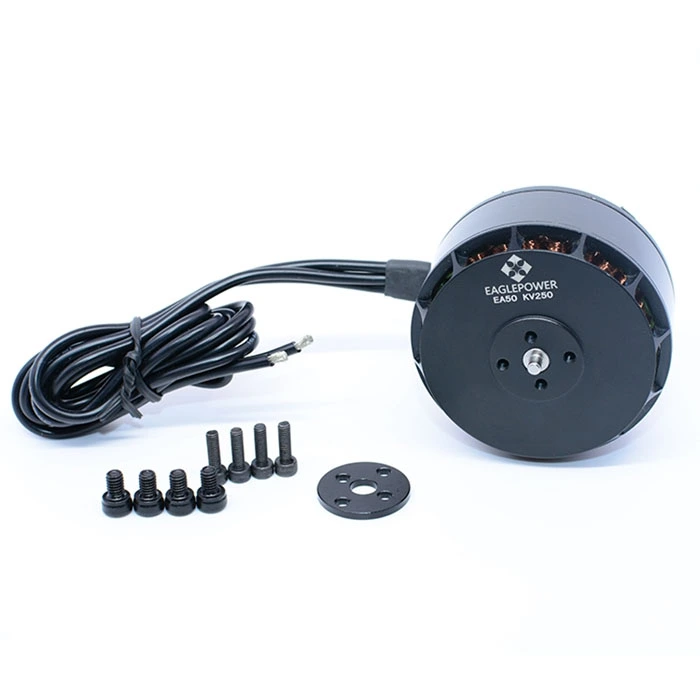

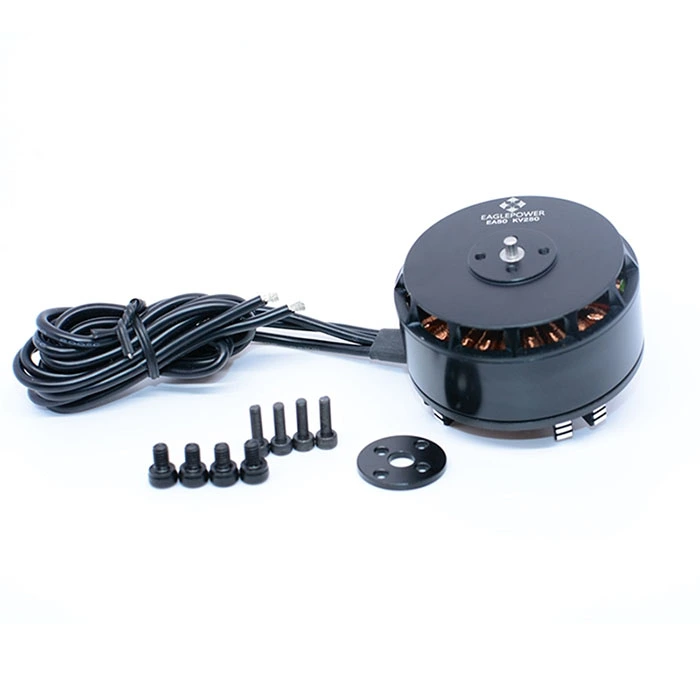

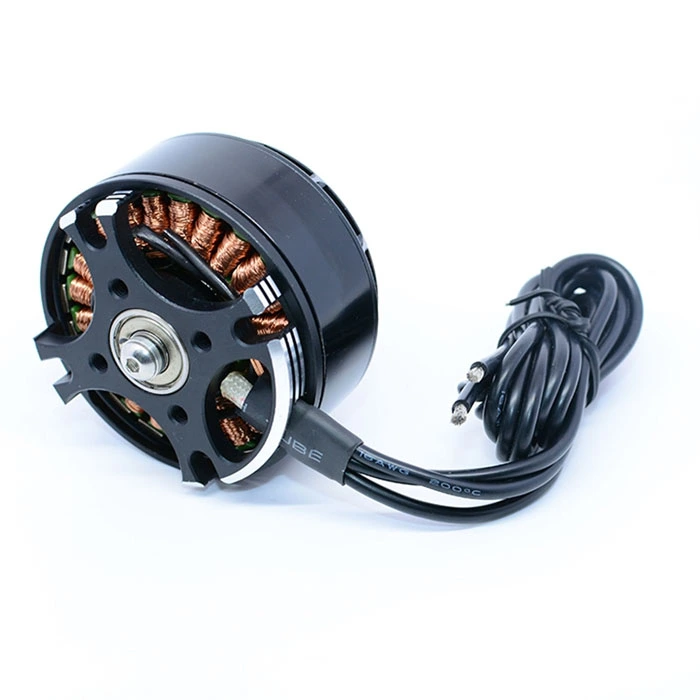

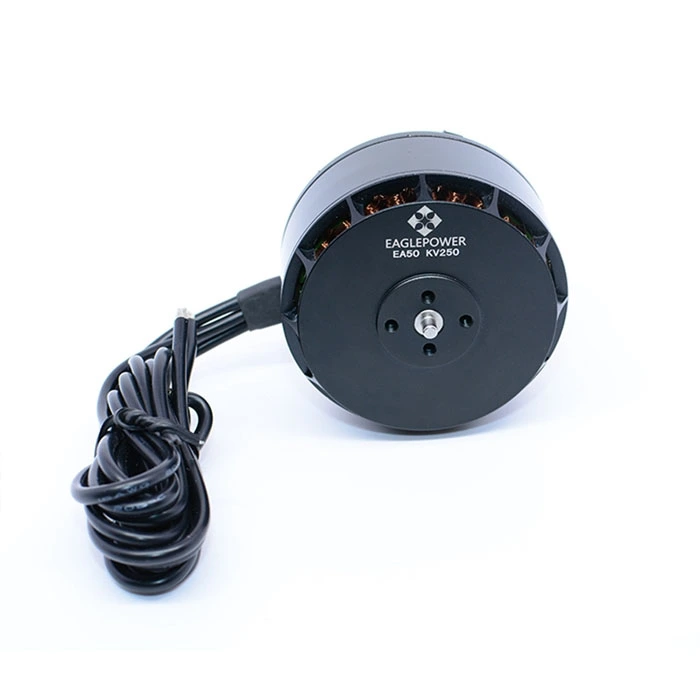

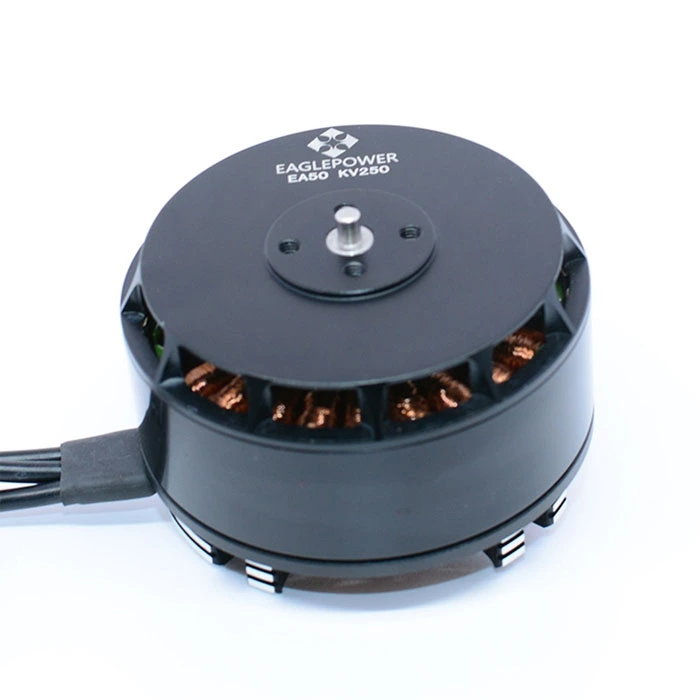

Eaglepower EA50 5215 220KV Brushless Motor for RC Drones

GA0271
suitable for 20 inches to 22 inches propellers
Great 6S brushless motor for rc drones
    Please select the information you wantX
Quantity:
-
+
(57 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
Eaglepower 5215 220KV brushless motor is great for 6S powered drones with 20-22" propellers.

Specifications:
Item Brand: Eaglepower
Item Model: 5215 220KV
Configuration: 24N22P
Motor Size: 59x35mm
Weight: 268g
Idle Current (24V): 0.85A
Battery Voltage: 6S Lipo
Max Continuous Current: 25A
Max Continuous Power: 1150W
Internal Resistance: 0.104Ω

Package Included:
Eaglepower EA50 5215 220KV Brushless Motor x 1
Test Parameters
Motor Type

Battery

Propeller

Appropriate take-off weight
4 Axis 6 Axis 8 Axis
5215 220KV 6S 2055 5.6-6.8kg 8.4-10.2kg 11.2- 13.6kg

Current(A) 2 4 6 8 10 12 14 15.5
Thrust(g) 604 1040 1438 1742 2097 2336 2611 2835
Power(w ) 44.4 88.8 133.2 177.6 222 266.4 310.8 344.1
Efficiency(g/w) 13.6 11.7 10.8 10.9 9.4 8.769 8.401 8.239

Motor Type

Battery

Propeller

Appropriate take-off weight
4 Axis 6 Axis 8 Axis
5215 220KV 6S 2255 6.4-7.8kg 9.5-11.7kg 12.7-15.6kg

Current(A) 2 4 6 8 10 13 16 20
Thrust(g) 685 1146 1585 1913 2248 2641 3159 3537
Power(w ) 44.4 88.8 133.2 177.6 222 288.6 355.2 444
Efficiency(g/w) 15.4 12.9 11.9 10.9 10.1 9.151 8.894 7.966
