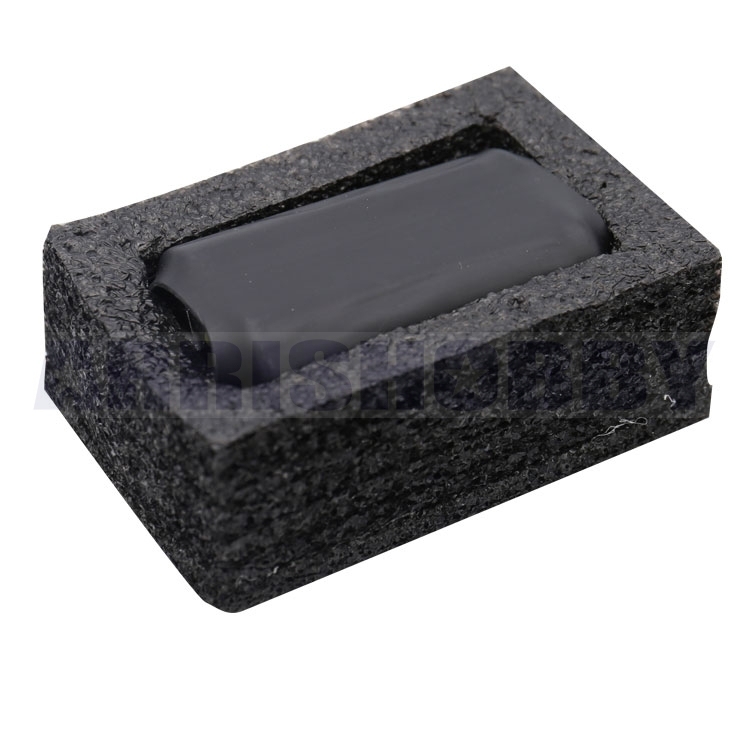

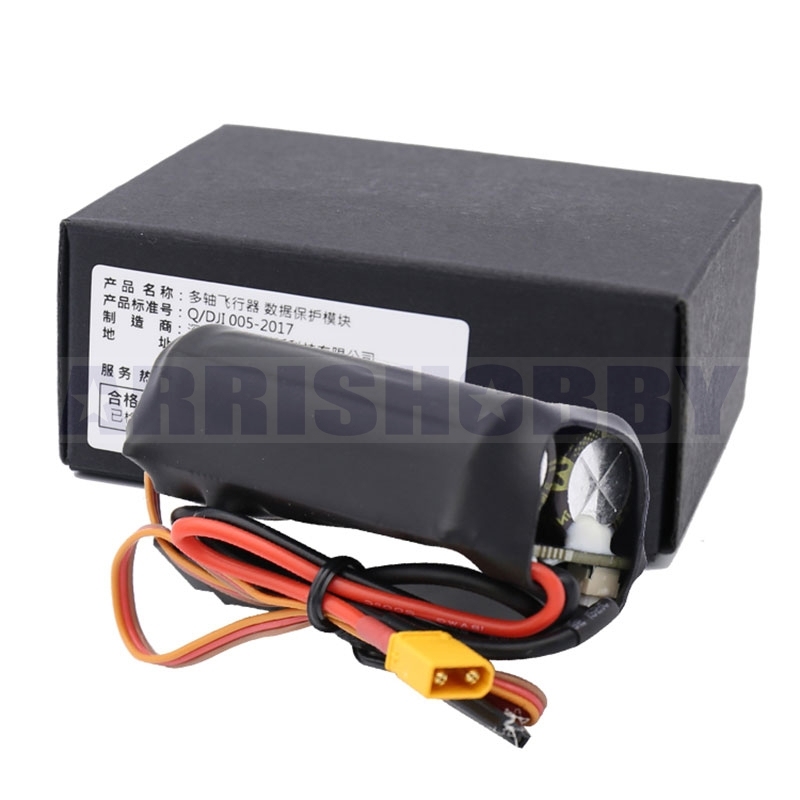

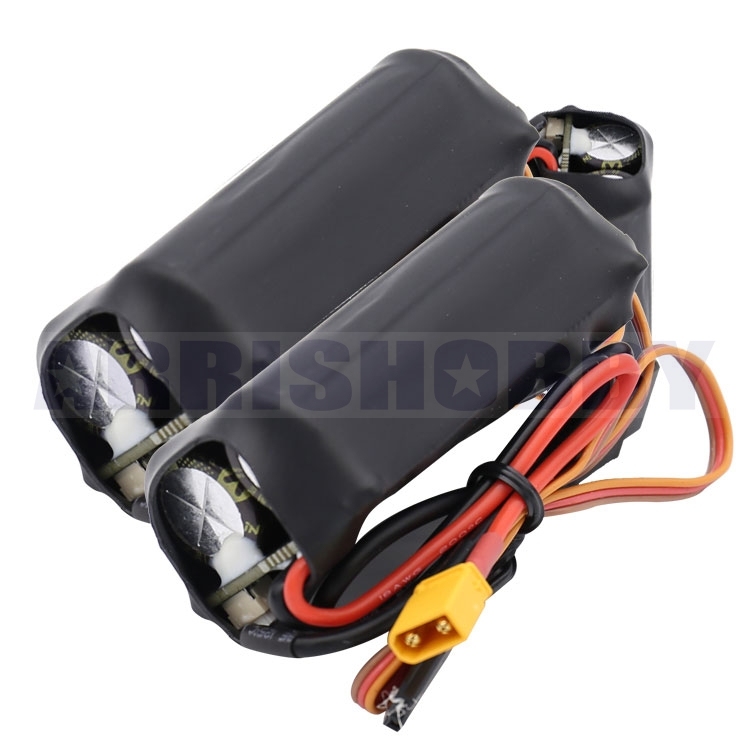

DJI System Data Protection Module features enables the aircraft to retain vital system data (e.g., Point A, Point B, breakpoint) for about 30 seconds after the aircraft is powered off.Retaining vital system data allows the aircraft to rescume operation after a short, temporary pause.
Here is the instrucstions to use this feature:
1. Exit smart operation mode or F-mode (if using the Datalink 3). The current location of the aircraft will be recorded as the breakpoint.
2. Land the aircraft and stop the motors.
3. Once the aircraft is powered off, system data protection is automatically triggered, indicated by the aircraft status indicator glowing solid green.
4. Replace the battery within the 30-second window.
5. Restart teh aircraft and enter manual operation mode.
6. Ensure that the GNSS signal is strong, then start the motors.
7. Follow the instructions in Operation Resumption on resume the operation.
Note: System data can only be retained for 30 seconds. DO NOT power off the aircraft for more than 30 seconds if you want to resume operation, as system data will be lost.
