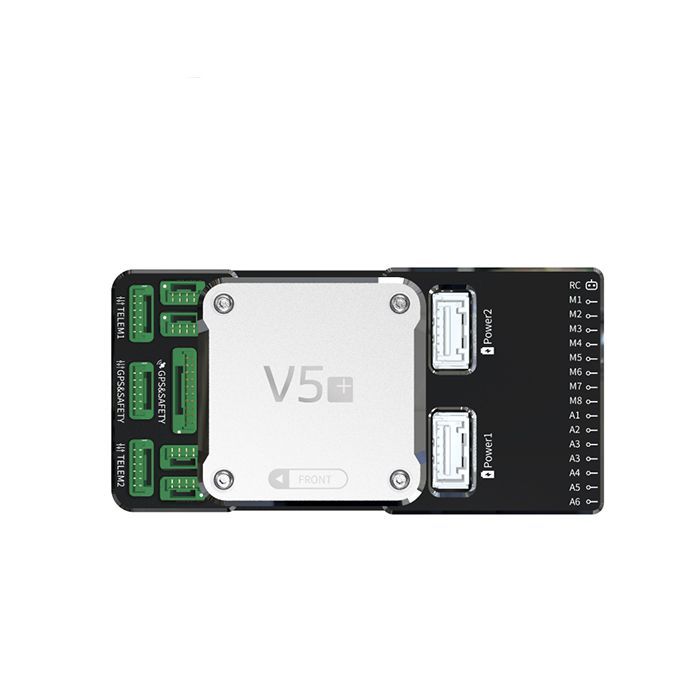

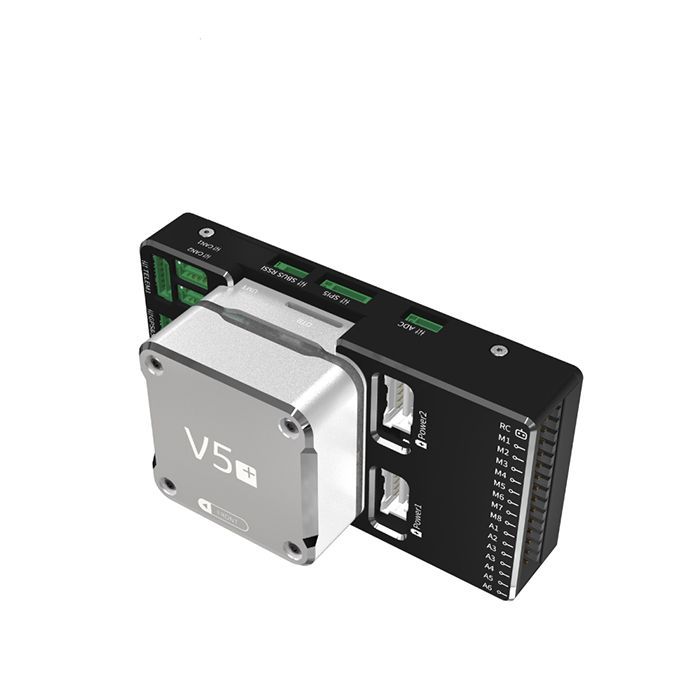

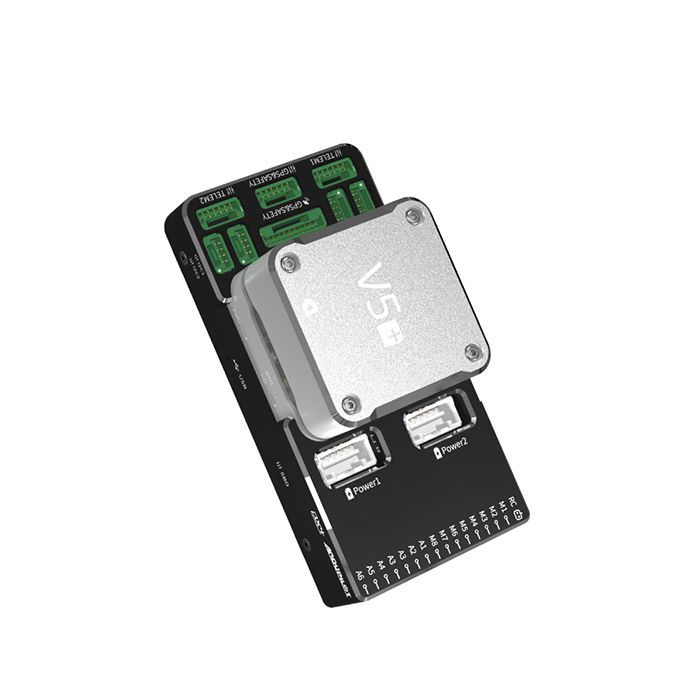

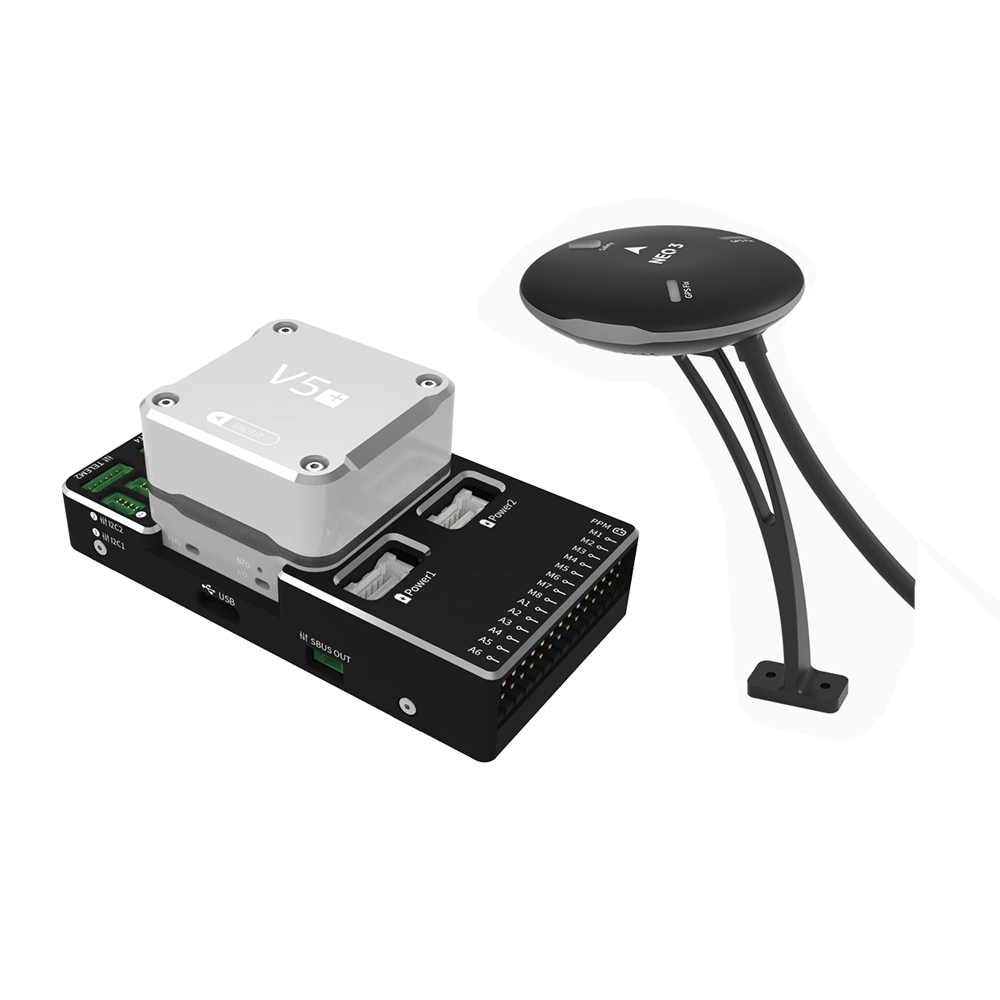

CUAV Pixhack V5 Plus Autopilot Flight Controller with Ublox NEO M8N GPS Combo

CUAV Pixhack v5+ fc
Compatible with PX4 and Ardupilot firmware
    Please select the information you wantX
(87 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
CUAV Pixhack V5+ AutoPilot® is an advanced autopilot designed and made in CUAV. The board of the pixhack v5+ is based on the FMUv5 open hardware design, the external interface uses the Dronecode standard pinouts, and the modular design allows the user to design its backplane. It is fully compatible with PX4 and ArduPilot firmware. Mainly used for academic and business development.


Main Features:
Detachable Core Design
The Pixhack V5+ Autopilot still adopts a modular design, which is convenient for user integration.The core part of the flight control is integrated on the V5 core. The lower plate is detachable and serves only as an external interface carrier, giving consumers a customized space. Users can design their own lower plate according to their own needs.

New Open Source Hardware Design
Pixhack V5 AutoPilot is a new high-performance flight control system based on FMU V5 open source hardware. FMU v5 open source hardware features more advanced processors than FMU V3, larger flash and RAM, and more stable and reliable sensors.

Built-in Patented Damping System
The sensor and the main board of the Pixhack V5+ flight controller are seperated and designed with a built-in high-performance shock absorption system to adapt to various severe enviroments, and the applicability is stronger.

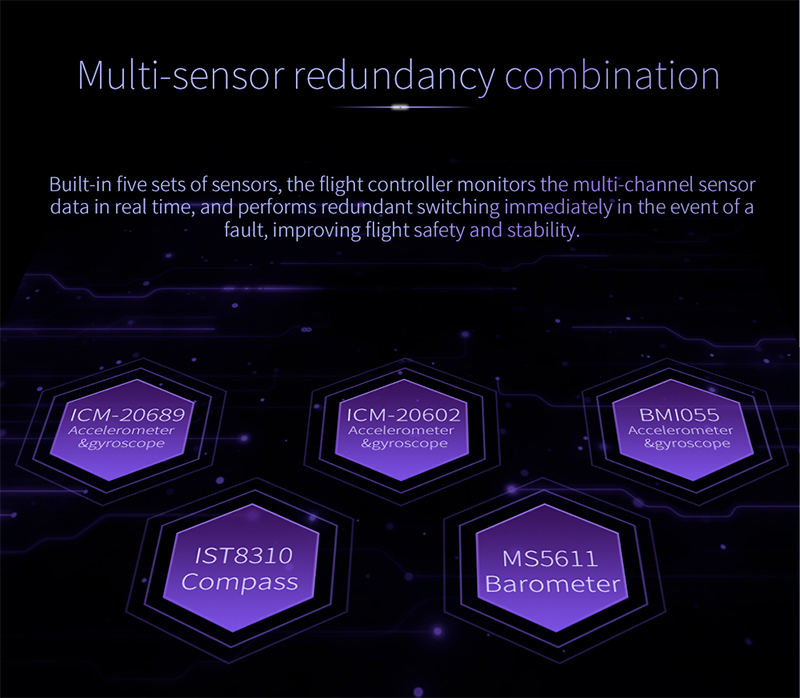

Multi-sensor Redundancy Combination
CUAV Pixhavk V5+ autopilot comes with built-in 5 sets of sensors, the flight controller monitors the multi-channel sensor data in real time, and performs redundant switching immediately in the event of a fault, improving flight safety and stability.

Faster Processor
In terms of hardware configuration, Pixhack V5+ autopilot flight controller abandoned the original STM32F427 processor of the px4 family and selected a more advanced STM32F765 processor with a clock speed of 216MHZ and 2MB FLASH/512K RAM, higher frequency and larger RAM.The clock speed is higher, the RAM is larger,the speed will be greatly improved.


-STM32F765 (32-bit ARM Cortex M7,216 Mhz/512 KB RAM/2 MB Flash,512KB RAM)
-STM32F100 (32-bit ARM Cortex-M3, 24MHz, 8KB SRAM)
-Accelerometer: ICM-20602/ICM20689/BMI055
-Gyroscope: ICM-20602/ICM20689/BMI055
-Barometer: MS5611
-Magnetometer: IST8310
-8-14 PWM outputs (6 from IO, 8 from FMU)
-3 dedicated PWM/Capture inputs on FMU
-Dedicated R/C input for CPPM
-Dedicated R/C input for PPM and S.Bus
-analog / PWM RSSI input
-S.Bus servo output
-5 general purpose serial ports
-4 I2C ports
-4 SPI buses
-2 CANBuses with serial ESC
-Analog inputs for voltage / current of 2 batteries
-Operating power: 4.3~5.4V
-USB Input: 4.75~5.25V
-Servo Rail input: 0-36V

-Weight: 91g
-Dimensions: 42mm x 85.5mm x 33mm
-Operating temperature: -20 ~ 80°c





flight controller for drones

pix flight controller

pixhack flight controller

cuav flight controller

CUAV NEW Ublox NEO M8N GPS Module integrates dual-mode GNSS, safety switch, RGB status light and Electronic Compass, it is specially designed for Pixhack V5/V5 Plus flight controllers.

The built-in dual mode GNSS module provides high sensitivity and minimal acquisition time while maintaining low system power and simultaneous acquisition and tracking of different GNSS systems: Parallel receiv GPS (QZSS) and GLONASS OR BeiDou, or receiv both GLONASS and BeiDou. Built-in SAW and LNA with advanced RF architecture and interference suppression ensure optimal performance in a weak GPS signal enviroment.

GPS Location: U-BLOX M8N
RGB Status light: NCP5623C
Compass: IST8310
Buzzer: Passive buzzer
Safety switch: Physical buttons
Accuracy: 3D Fix
Update rate: 10Hz(Max)
Acquisition: Cold start 26S/Hot start 1.5S/Aided start 2S/ Reacquisition 1S

Receiver Type: 72 Channels (GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN)

Tracking&Navigation -167dBm
Cold start: -148dBm
Hot start: -156dBm
Reacquisition: -160dBm

Advanced jumping
Fast search satellite speed
Security and integrity protection
Receiving up to three GNSS at the same time

Input voltage: 5V
Operating temperature: -10 ~ 70°c

pix gps

Package Included:
