BS30D 30A 2-6S Dshot brushelss esc comes with the latest version BLHELI-S firmware, which support DSHOT by default.The 30A Dshot ESC with small size and light weight is good for fpv racing quads.The ESC adopts high quality thickened PCB material,original imported QFN5 MOS,the output is more stable. The ESC also comes with RGB three color LED, the color can be set in the BLHELI software.
Specification:
Item name : BS30D 2S-6S BLHELI_S ESC with RGB LED
Work voltage: 2S-6S
Firmware: BLHeli-S
Firmware update:Yes
Firmware Target: J_H_15
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42
Continuous Current: 30A
Burst Current: 40A(10s)
Input Voltage: 2 - 6S
Size:30mm x 15mm x 6mm

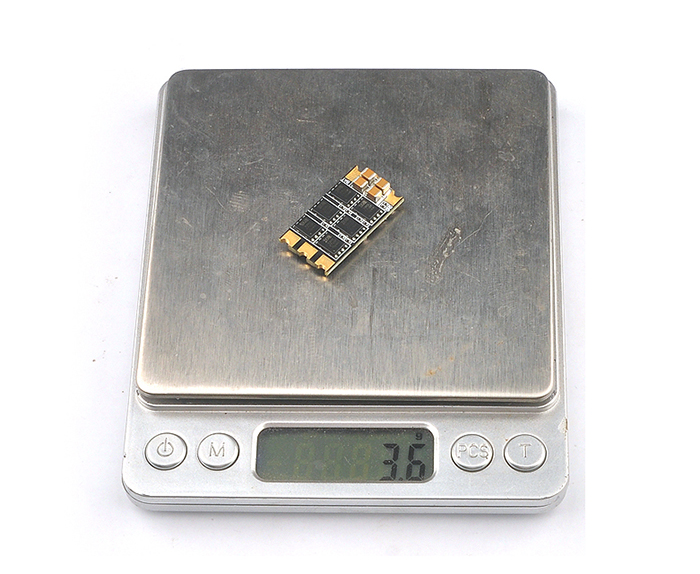

Weight:3.6g
Feature:
BB21MCU 48MHZ working frequency
Latest BLheli_s Dshot firmware
25V max.input
QFN5x6 power MOSFET
Better cooling ,less heat

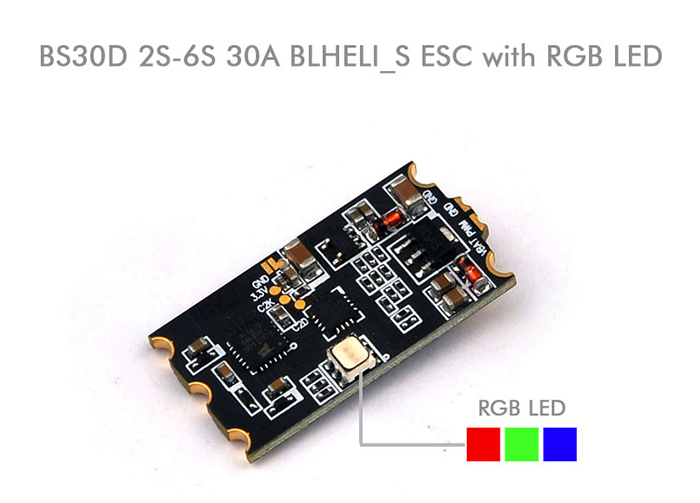

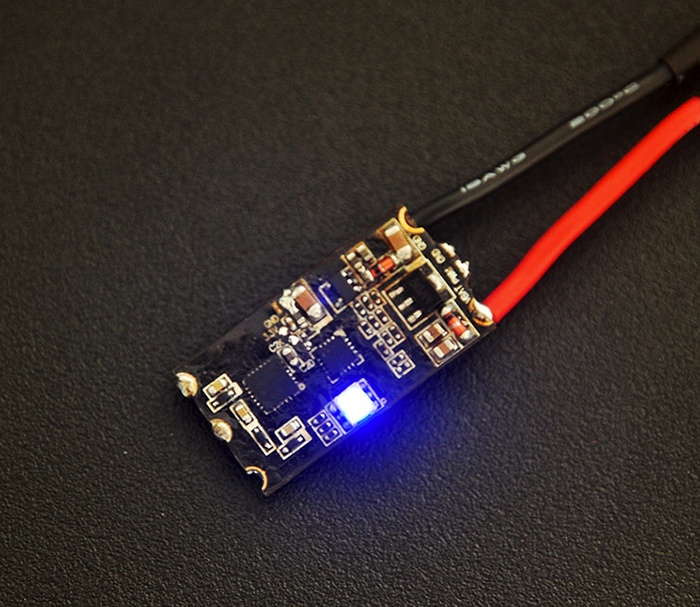

With RGB LED
Betaflight/ Cleanflight pass-throught

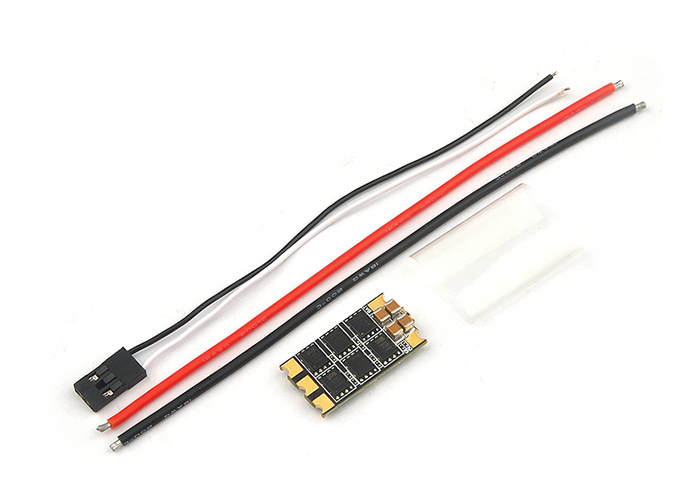

Package included:
BS30D ESCx1
Signal wire x1
18AWG 10cm x2
heat shrinkable tube x1
