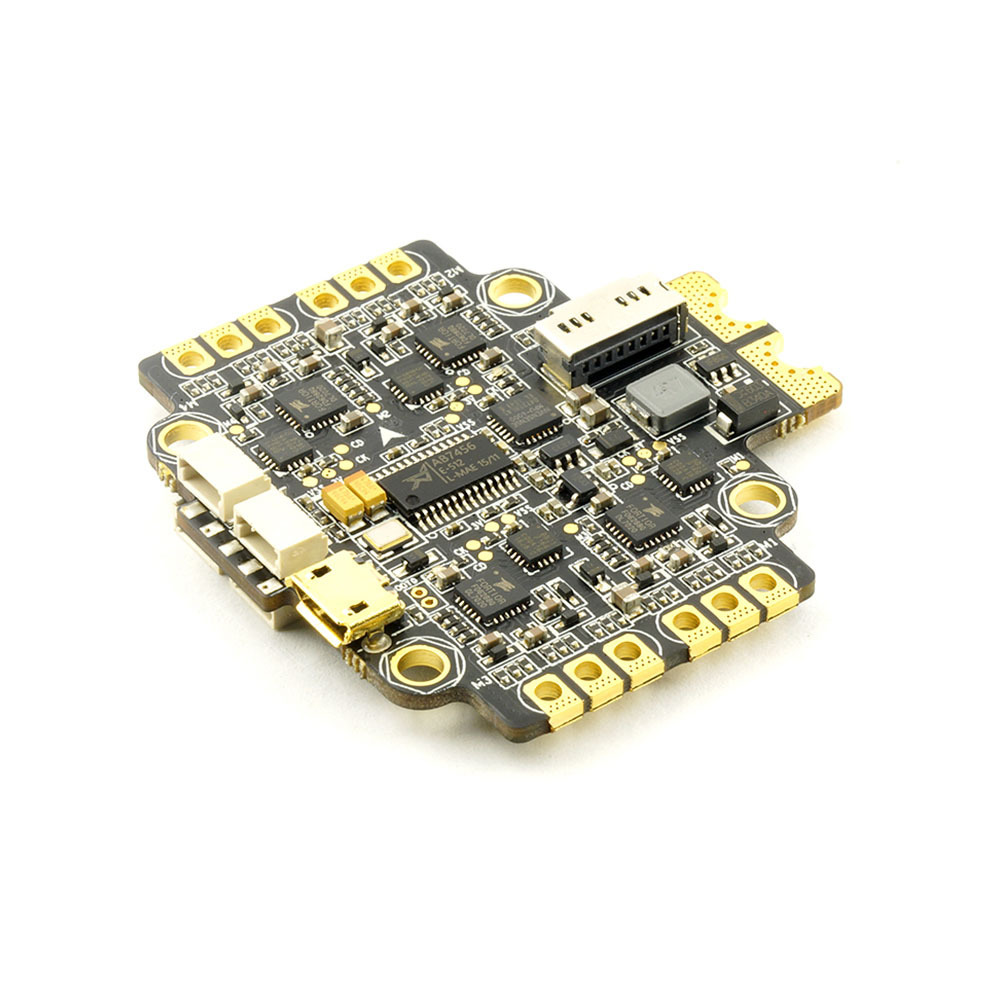

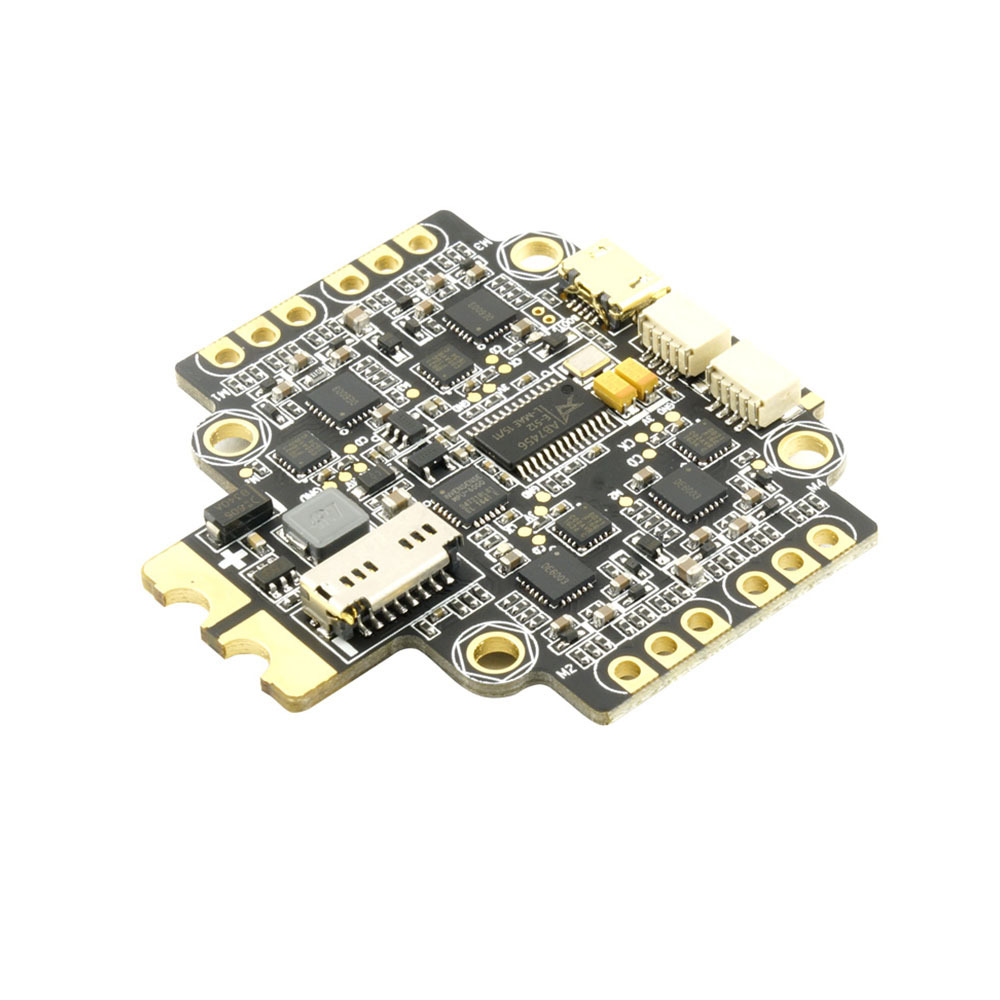

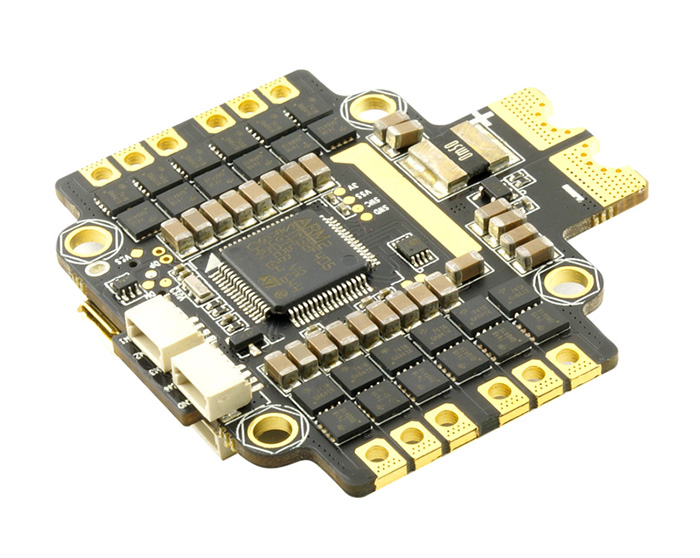

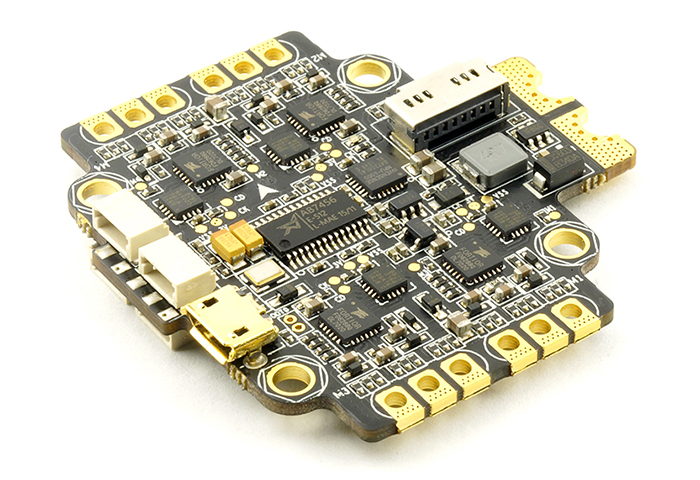

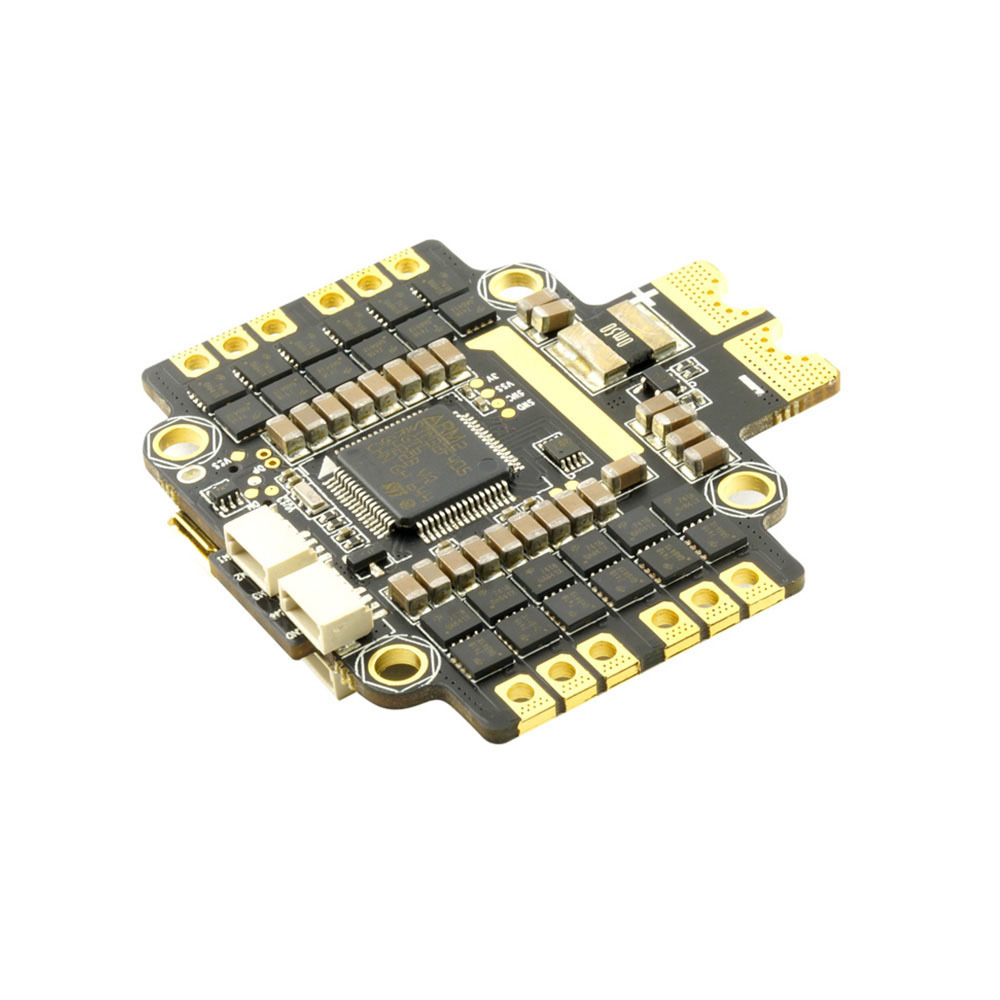

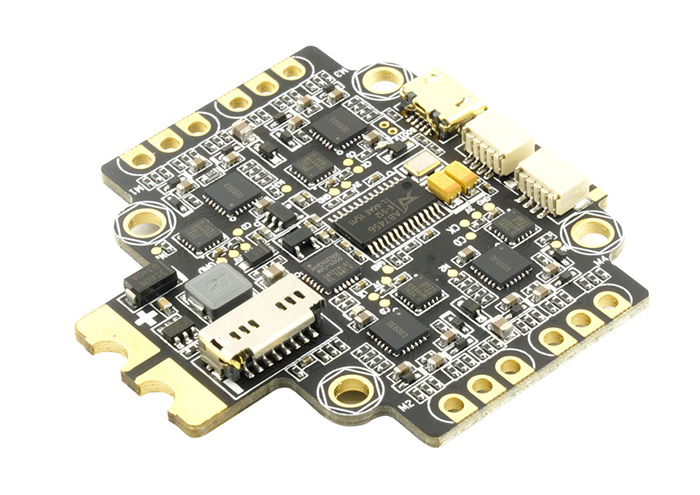

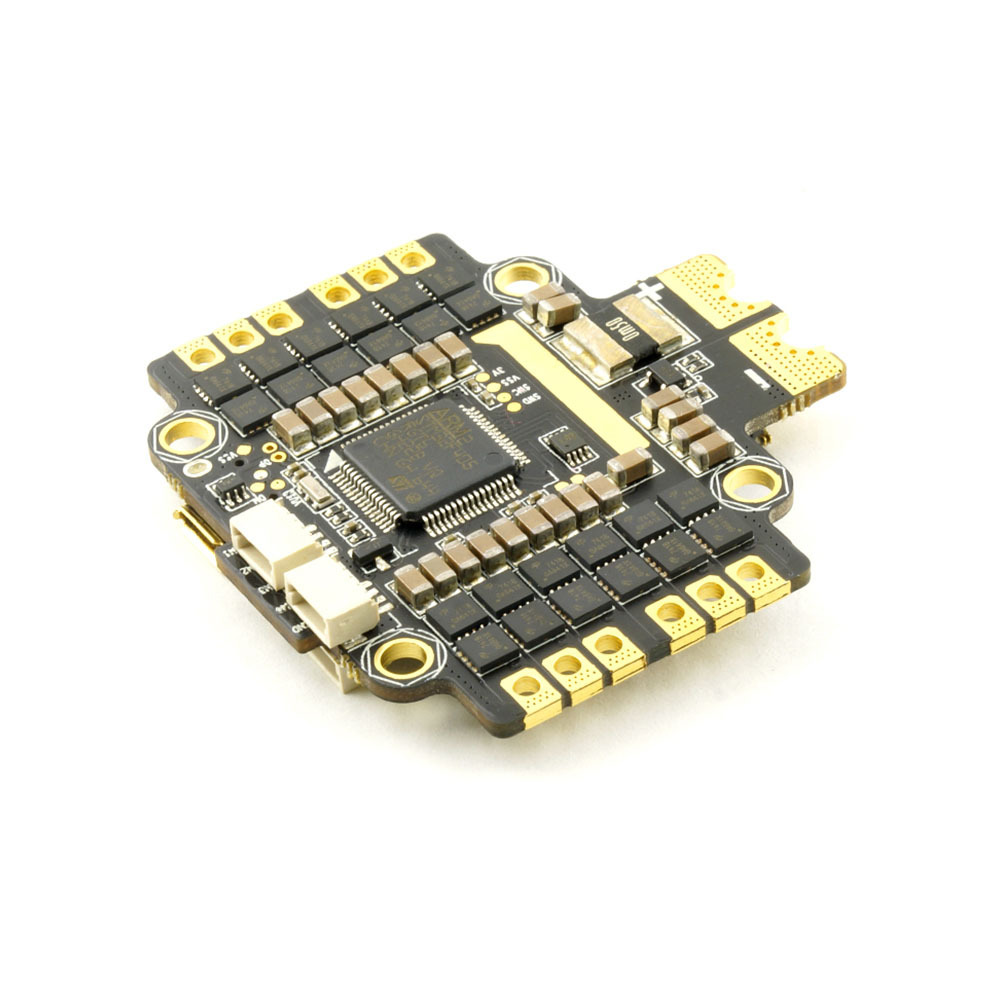

Asgard V2 Flight Controller (Integrated with Omnibus F4 FC,4in1 24A Dshot ESC,OSD and BEC)

Name: Asgard V2 Flight Controller (Integrated with Omnibus F4 FC,4in1 24A Dshot ESC,OSD and BEC)
Brand: ARRISHOBBY
SKU: NA0079
Price: 79.99 USD
Availability: OutOfStock

SKU: NA0079

0.0 (0)

$79.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Asgard V2 flight controller integrated with Omnibus F4 flight controller, 24A 4in1 BLHeli_S ESC (Dshot Ready),OSD, current sensor and 5V BEC.
The 4in1 ESC supports Dshot, it uses J_H_15 firmware.

Main Features:
SPI Gyro MPU6000
On-Board OSD (controllered by Betaflight, FC over SPI bus)
MicroSD Blackbox
F4 Processor (F405)
5v1a SBEC
Built-in Current Sensor
4x BLHELI_S ESC(DSHOT Ready)
2x UART
Buzzer output
WS2812B LED output
30.5mm x 30.5mm Mounting Hole

Package Included:
Asgard V2 flight controller kit x 1
