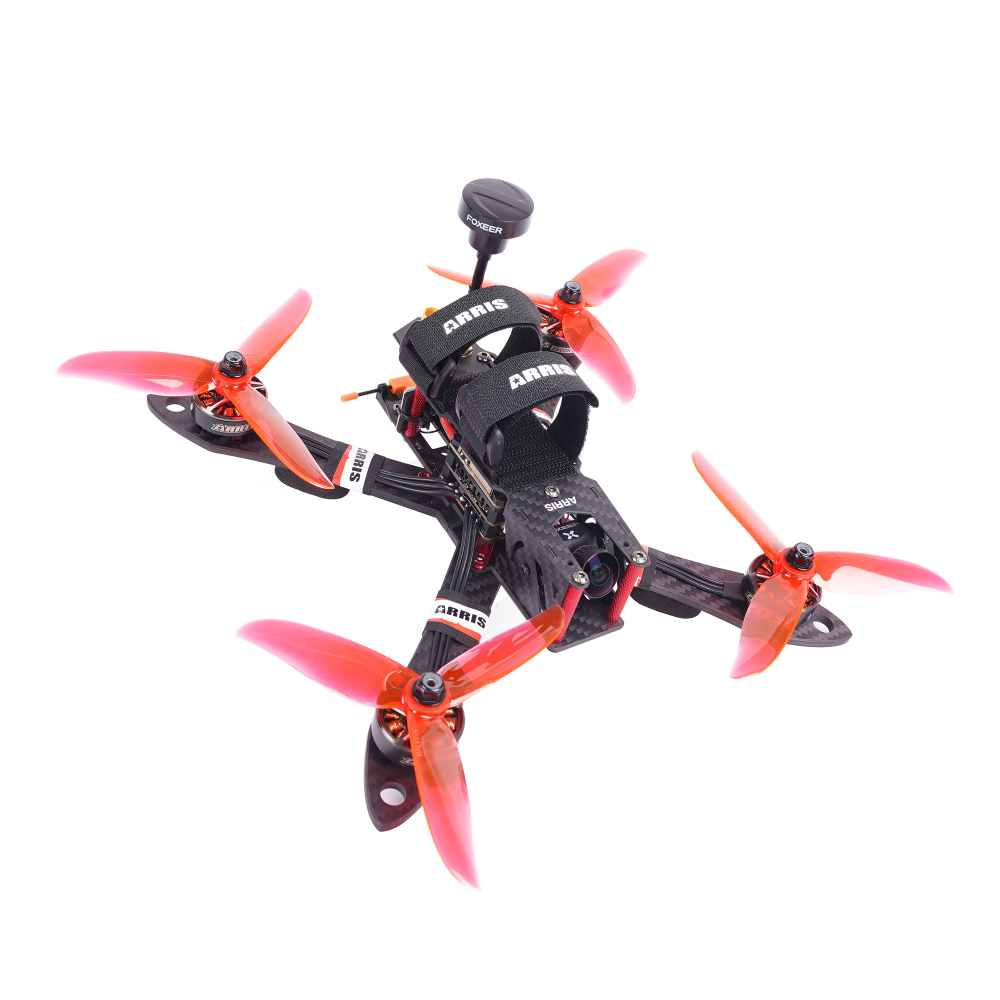

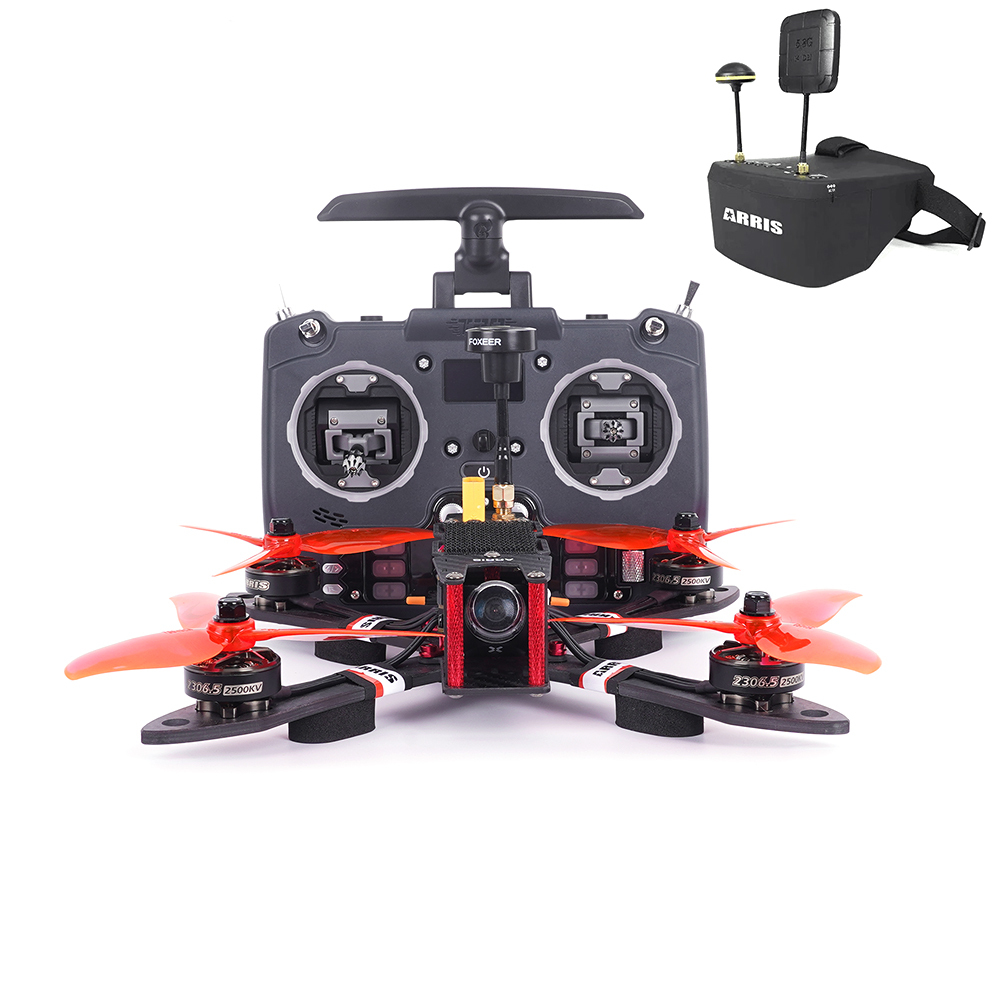

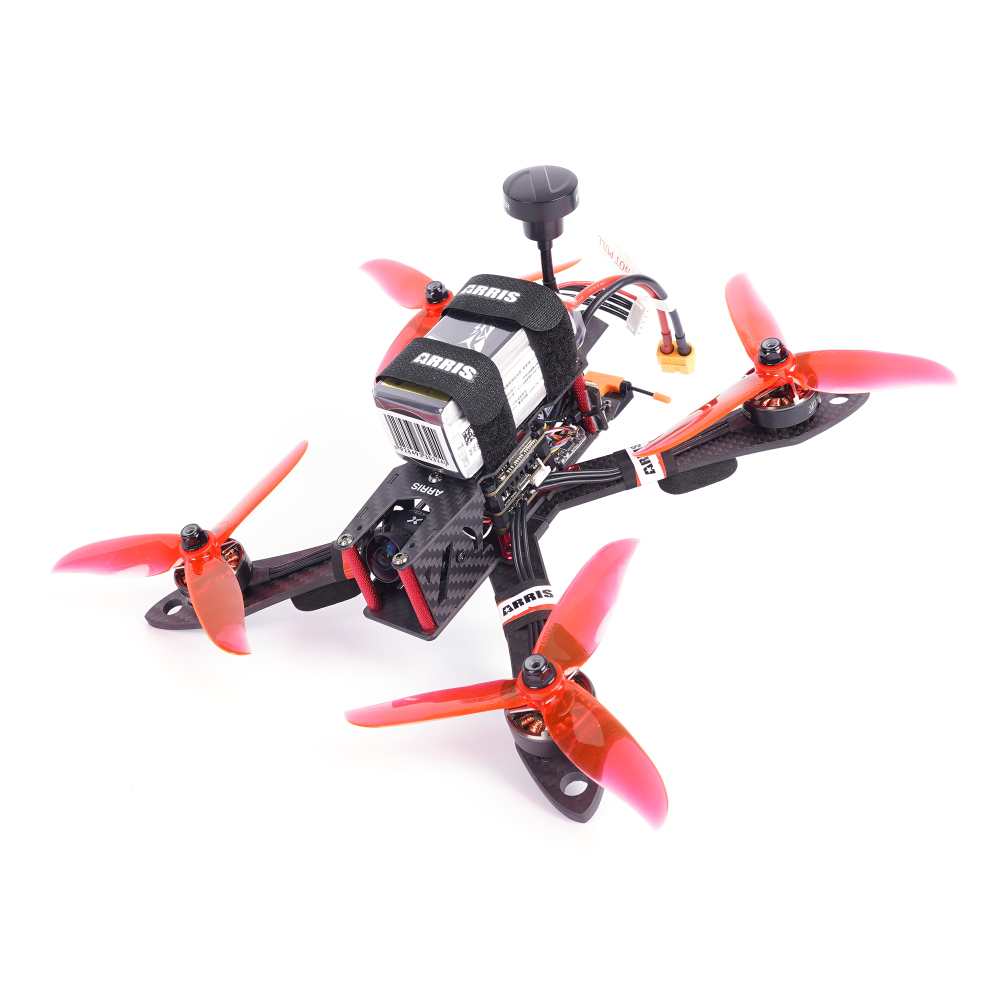

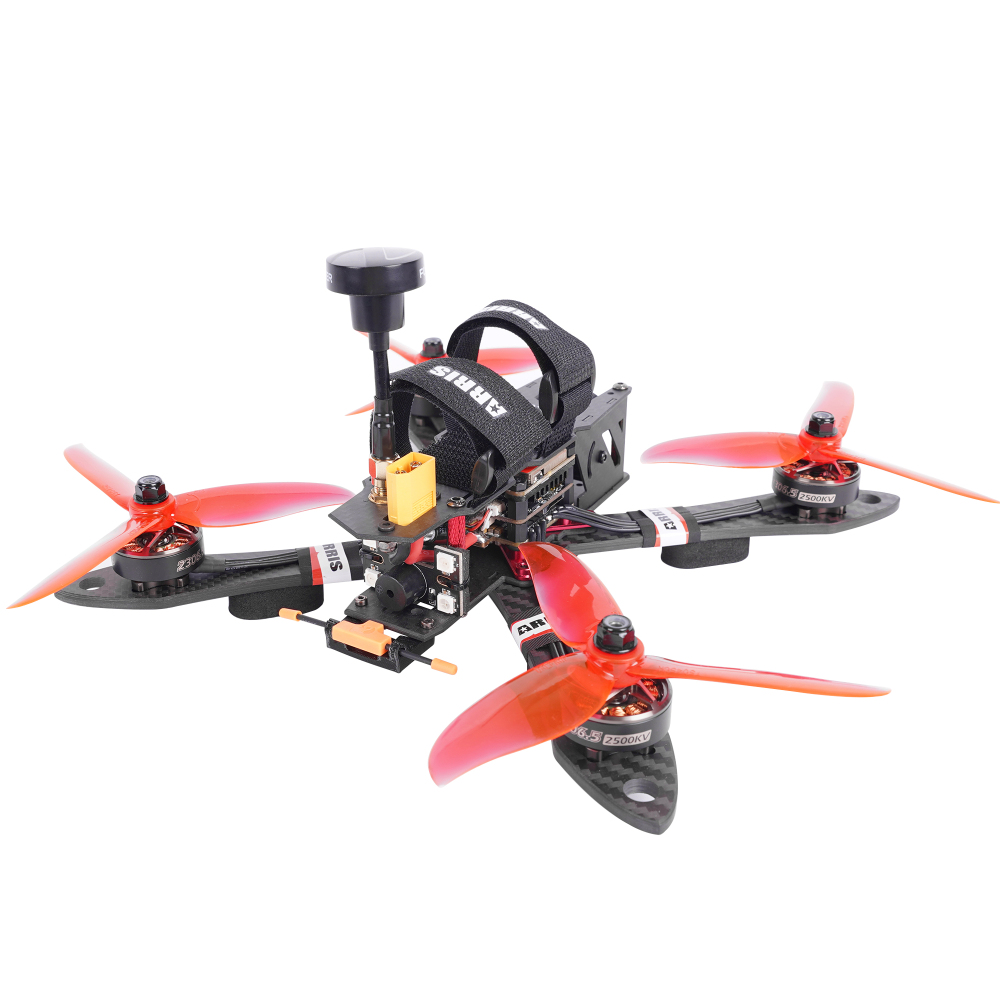

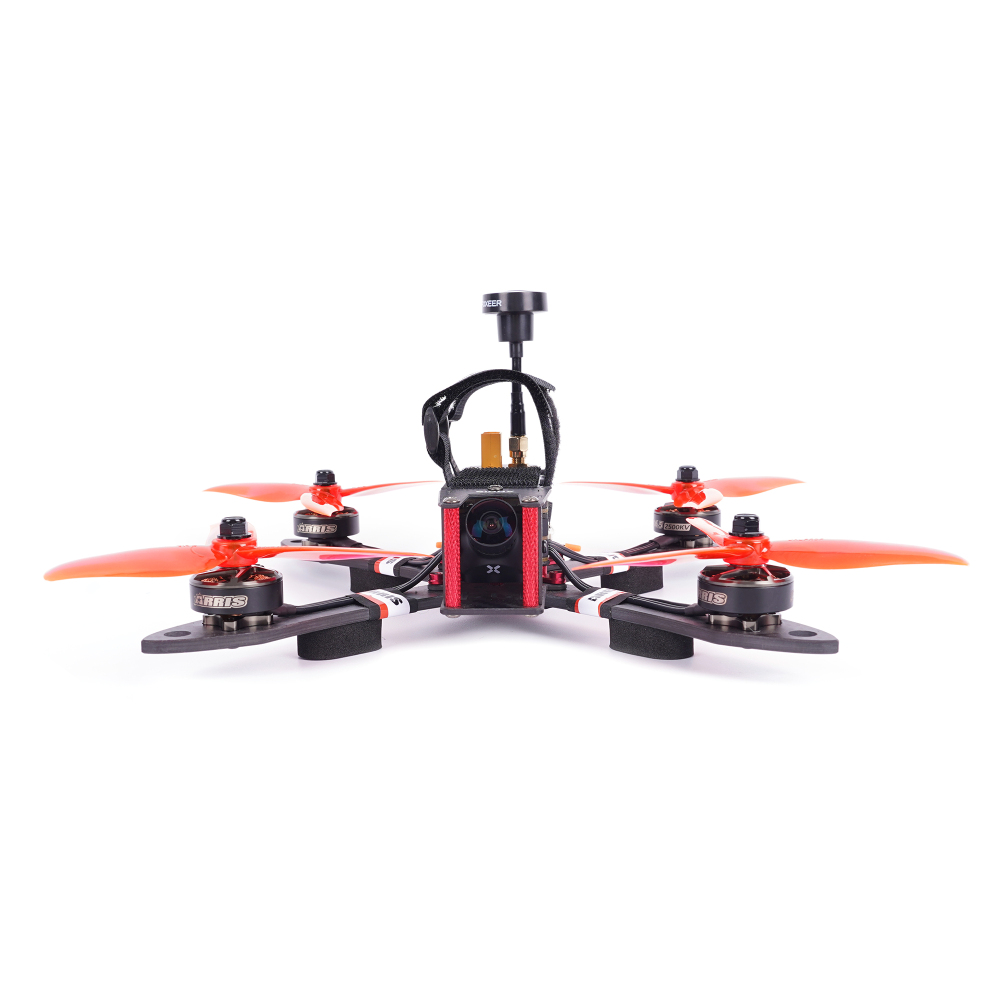

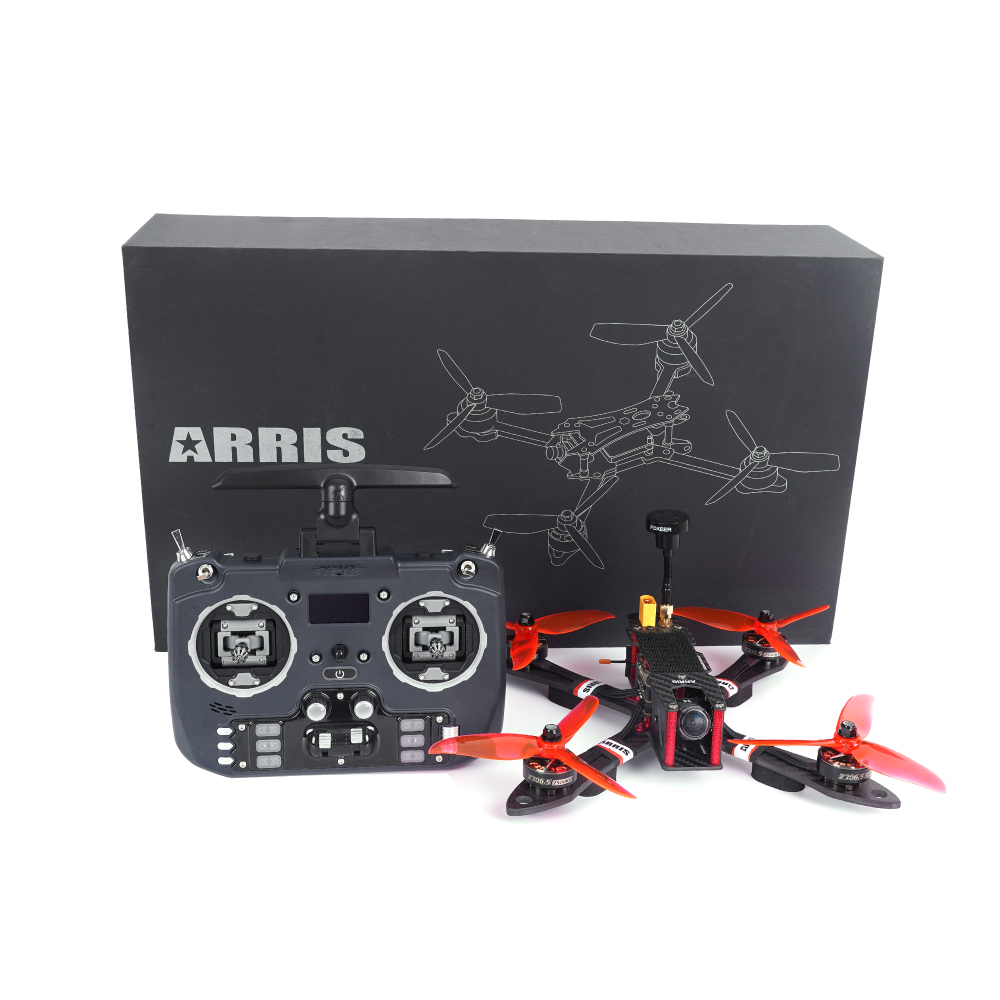

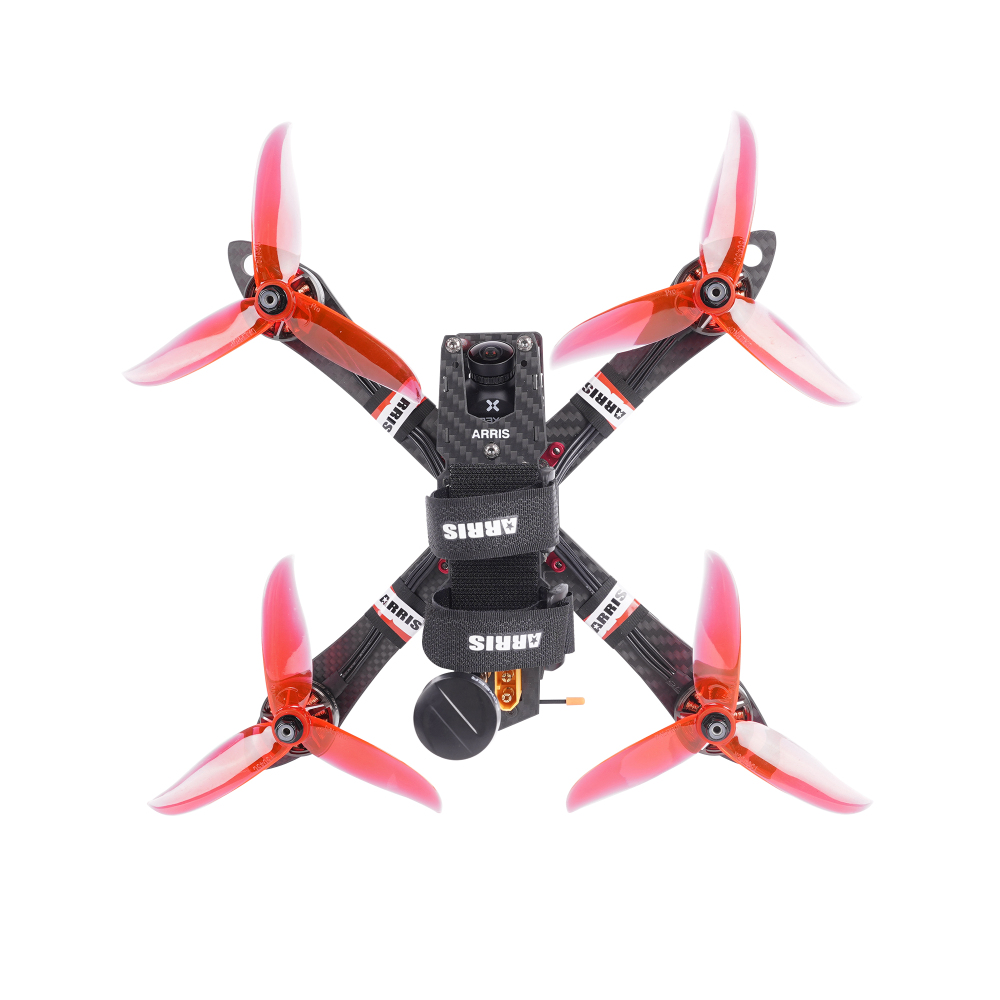

ARRIS X220 V3 220MM 5" FPV Racing Drone with EV800D FPV Goggle

ARRIS X220 V2 Parts

ARRIS X220 V3 220mm FPV racig drone RTF is fully assemble and tuned, it is ready to fly. It is one of the best racing quad for freestyling. ARRIS X220 RTF comes with ARRIS X2306.5 2500kv high quality brushless motor, Flycolor Raptor S-Tower 4-in-1 30A ESC + F4 + PDB + OSD board, Dalprop T5045C high efficiency propeller, FOXEER Razer MINI 1200TVL FPV Camera,5.8G 48CH long range mini video TX, Jumper T20 V2 ELR Radio with receiver and 4S 1550mah 75C lipo battery.

Specifications:
Diagonal Wheelbase: 220mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon Fiber
BNF weight:329.5g

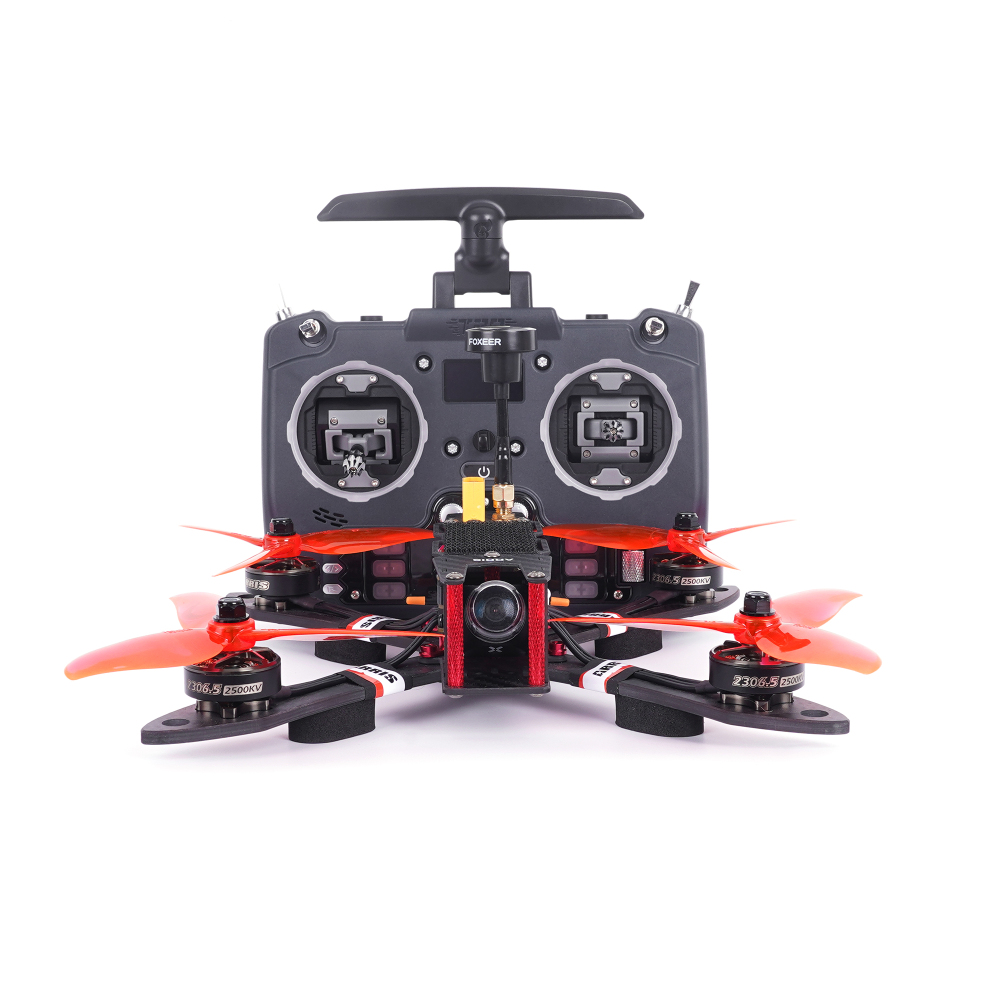

Radio System: Jumper T20 V2 with Receiver
Camera:  FOXEER Razer MINI 1200TVL FPV Camera
FPV TX: 5.8G 48CH switchable VTX
Antenna: Foxeer Pagoda Pro antennaa
Flying Time: About 12 minutes (hovering)
Battery: TATTU 4S 1550mah Battery

The main feature of the ARRIS X220 is the "X" symmetrical design,light weight,simple structure,durable and agile.The ARRIS X220 comes with the chamfered edge design on the arm, which gives the quad a sleek look.It comes with 4mm pure carbon fiber plate arm, make the frame super strong.The ARRIS X220 is made of pure carbon fiber with alloy pats, the weight is quite light.The structure of the X220 is simple, it is easy to maintain.

Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 30A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports ?PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the tower on the ARRIS X220, the wires are tidy and concise. And it is more convenient to maintain in the future.

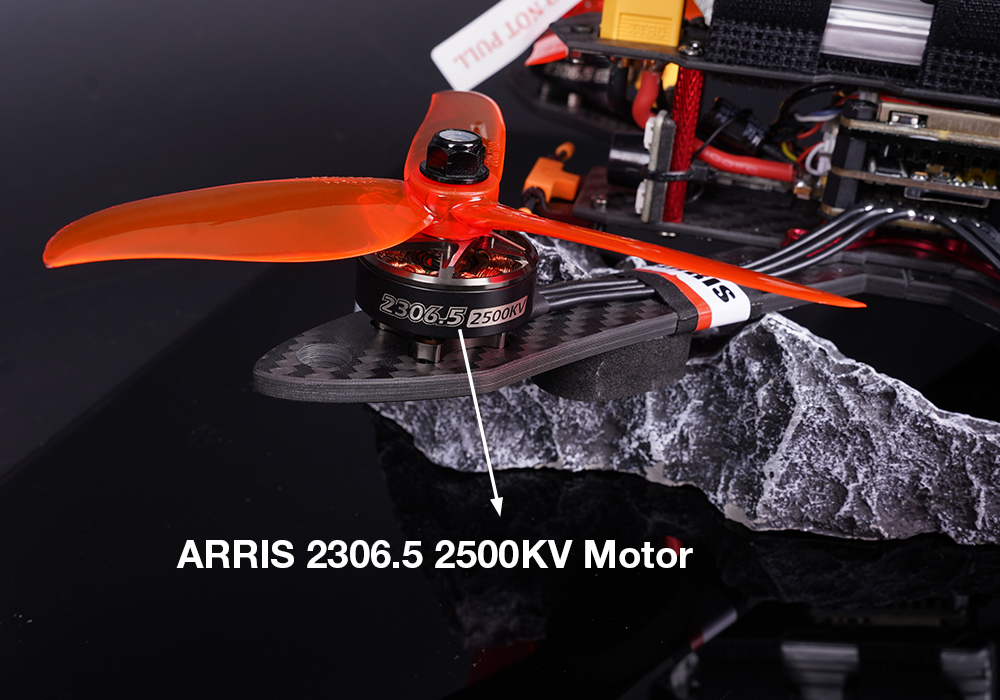

ARRIS X2306.5 2500KV Brushless now. It is high end brushless motor specially designed for high performance fpv racing drones.It adopts brand new M5 steel shaft, improving the structure strength. It had been upgraded to centrifugal fan design, optimizing the heat dissipation.

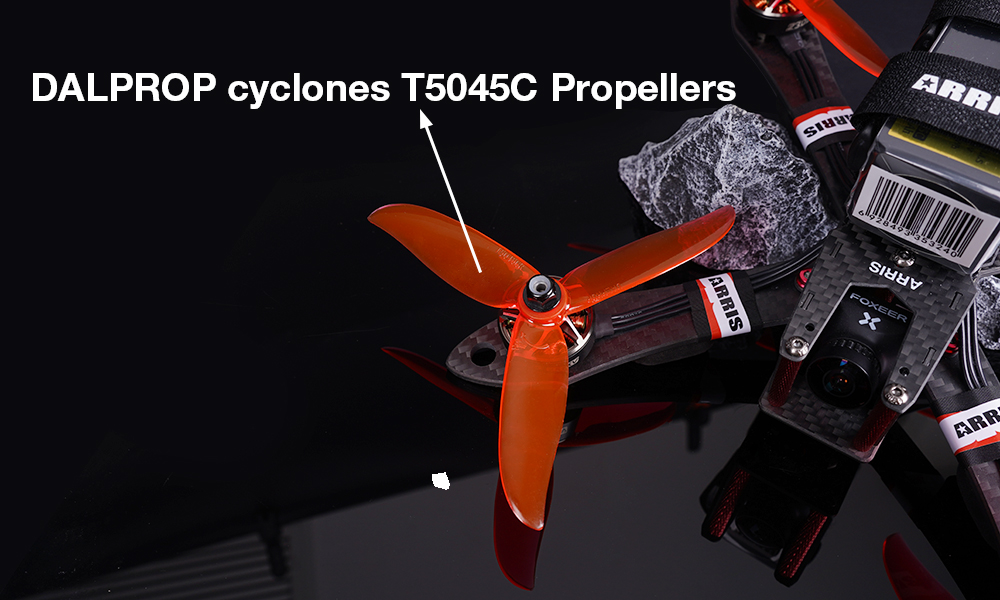

DALPROP cyclones T5045C series propeller is newly released high end dynamic balanced prop for fpv racing drones.
The propeller is made of imported PC,the strength is high, and the root is thickened,which make the propeller is not easily broken. The smooth surface design on the prop decreased the windage resistance,increasing the efficiency of the propeller.

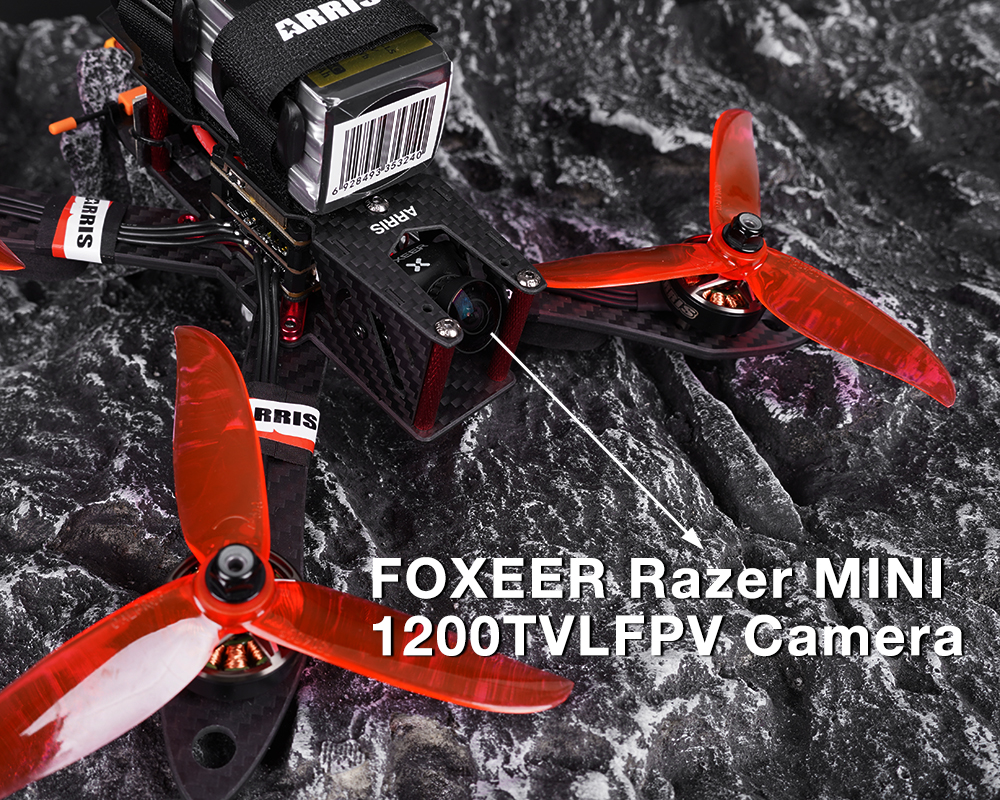

FOXEER Razer MINI 1200TVL FPV Camera replaced the ARROW mini fpv camera now. It comes with excellent WDR, which works well in the fast change of the dark and bright environment, support 5-35V super wide voltage, and built-in microphone and FPV OSD.The angle of the camera is adjustable on the ARRIS X220.

AKK 40CH 1.6W 200mw/400mw/800mw/1600mw Switchable Video Transmitter.It has stable output power, long transmission range, 4 power switchable,Output power and frequency setting can be done in OSD interface through remote controller, perfect for fpv racing quads.

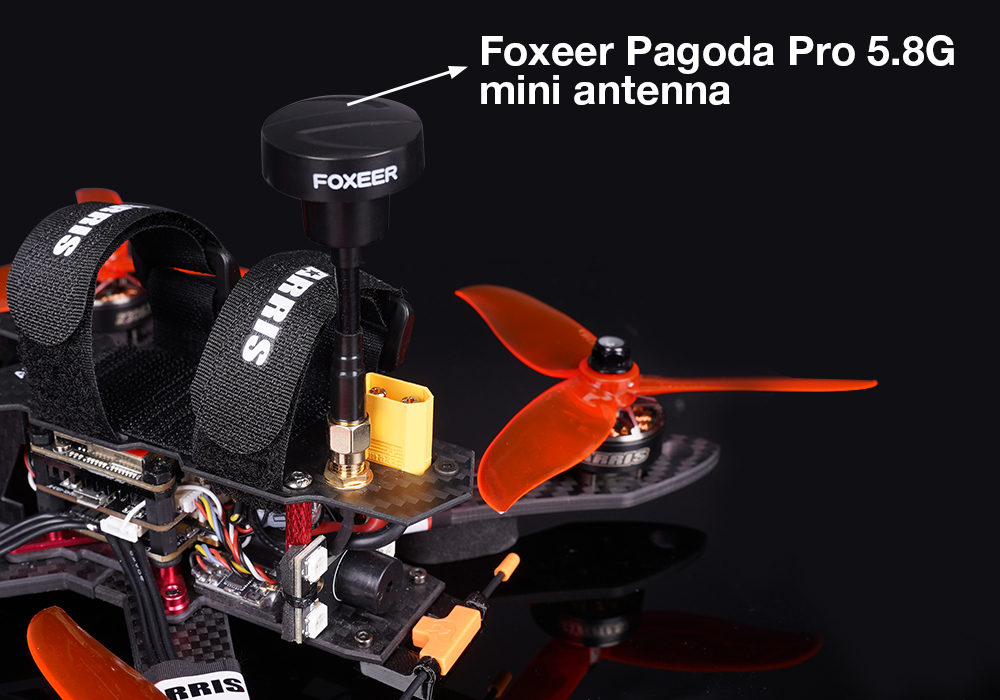

Foxeer Pagoda Pro 5.8G mini antenna. The body adopts imported PC+ABS material, can withstand high strenghth impact. Double-jacket semi-rigid cable for heavy impact resistance. Lower feeder loss, easy to install, can be bent at any angle and maintain.

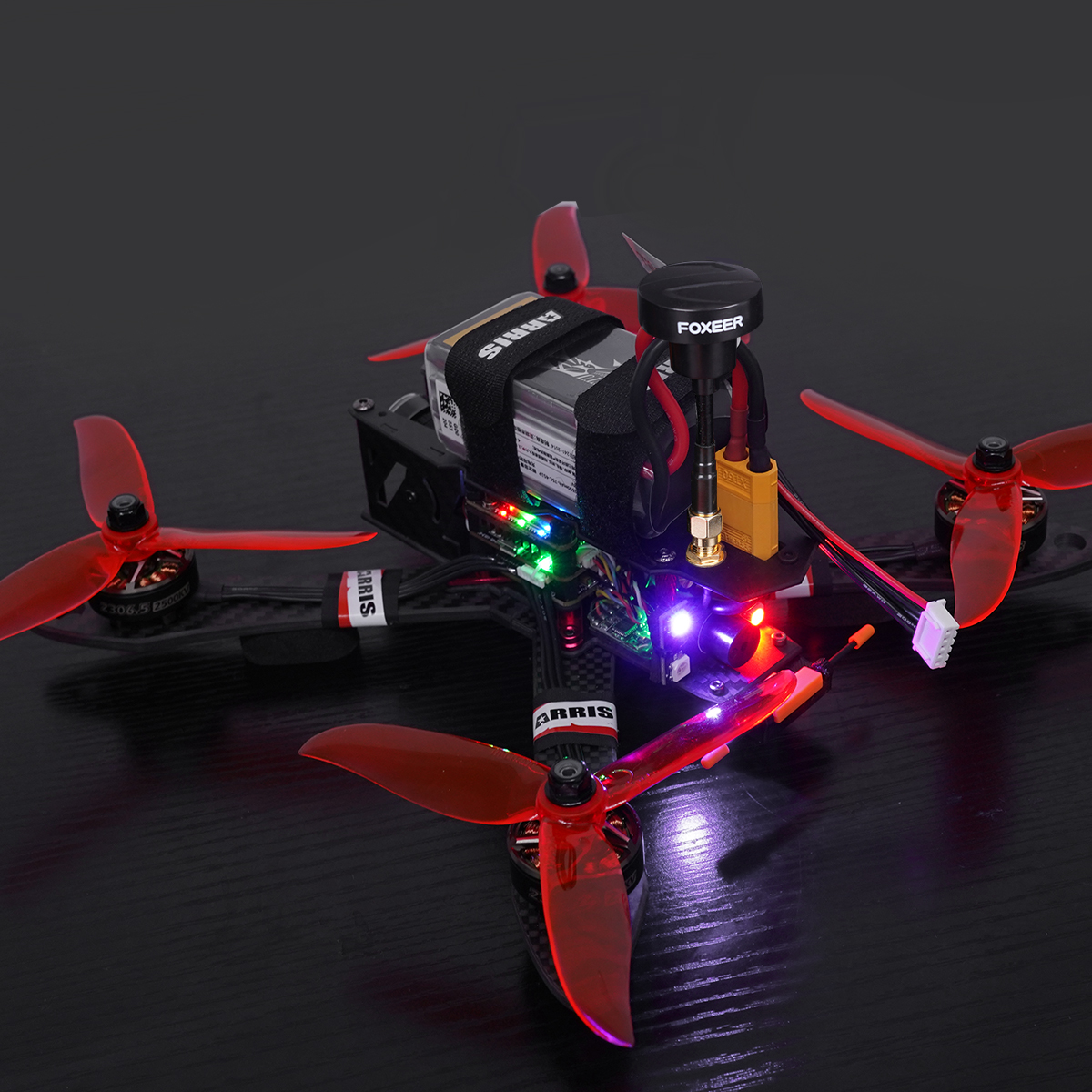

Highlight LED on the rear of the drone.

ARRIS X220 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable)according to CF parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch D on the transmitter.

There are three flight mode on the radio: Attitude Mode (Self-level mode), Acro Mode(Manual Mode) and Air Mode.

Jumper T20 V2 ELRS Radio is full featured ELRS GEMINI Radio.Added an external cooling fan, a powerful backing for high-power ELRS.Added a full range of standard zipper bags.

TATTU FPV 1550 mAh 75C14.8V 451P Battery with XT60 plug

Main Features of ARRIS EV800D Goggle:

-With DVR,you can record videos anytime and anywhere;
- Low power consumption;
- Double antenna reception to make the signal more stable;
-Auto-Searching,support a key search frequency;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time for DVR OFF and 2.5 hours for DVR ON;
- Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as back-up power source, to prolong the working time;
- Ergonomic design fit your faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the adage of screen;
- Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
- 5 inch 800*480px HD high brightness LCD screen
-Universal USB charging interference;
-Real-time video return,very low time-delay;
-Support external video signal input;
-Support Audio signal output;
