The ARRIS TS5823 pro transmitter packs 600mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter with LED display! The ARRIS TS5823 pro is transmitting a full range of 40 channels and only weighs 5.0g.
Main Features
40 channels: Cover A, B, E bands and F bands
Micro sized and light weight
Transmitter frequency: 5645-5945MHz with 600mW power output
LED display
Specifications:
TX Frequency: 5.8G
Power output: 600mw
Frequency Points: 40
Input Voltage: 7-24V
Antenna Connector: SMA
Working Current: 230mA
Working Temperature: -10℃~85 ℃
Weight: 5.0g
Frequency and channel frequency table:
Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

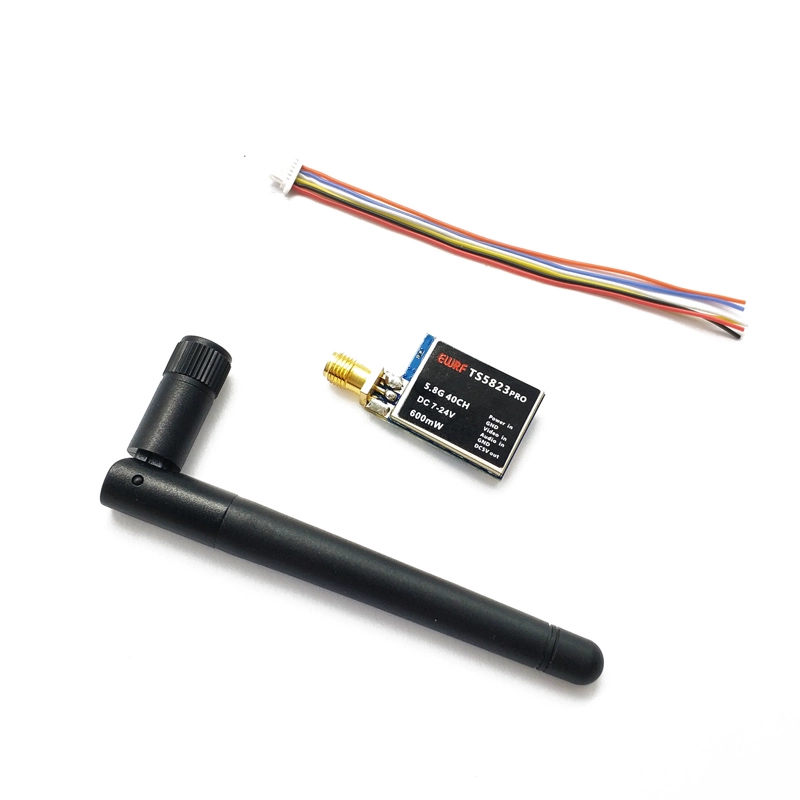

Package Included:
1 x transmitting unit (TX)
1 x antennas
1 x 5p cable
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
