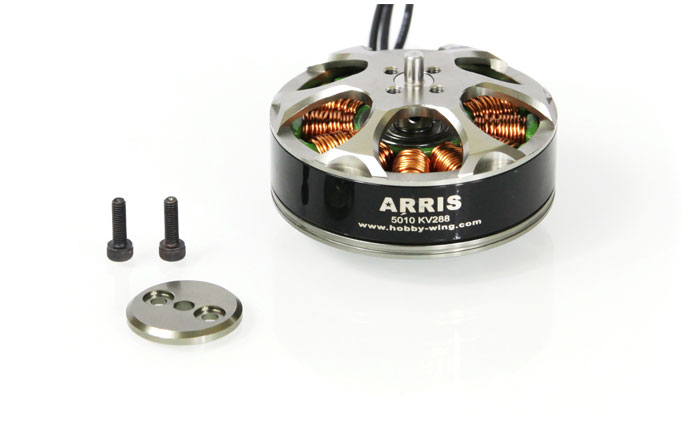

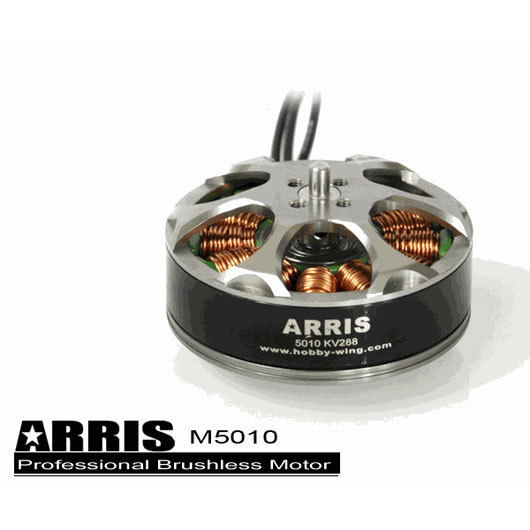

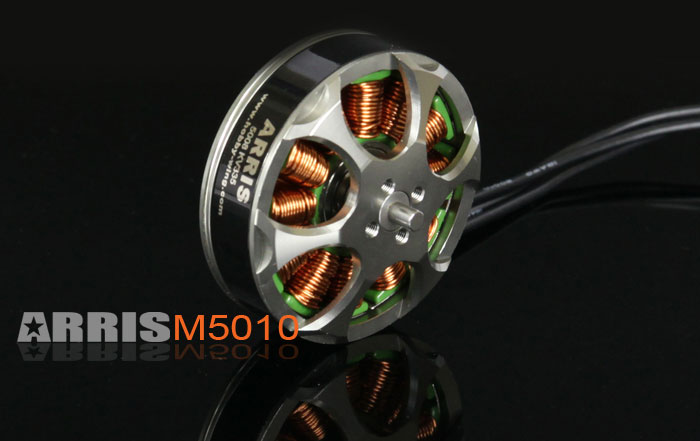

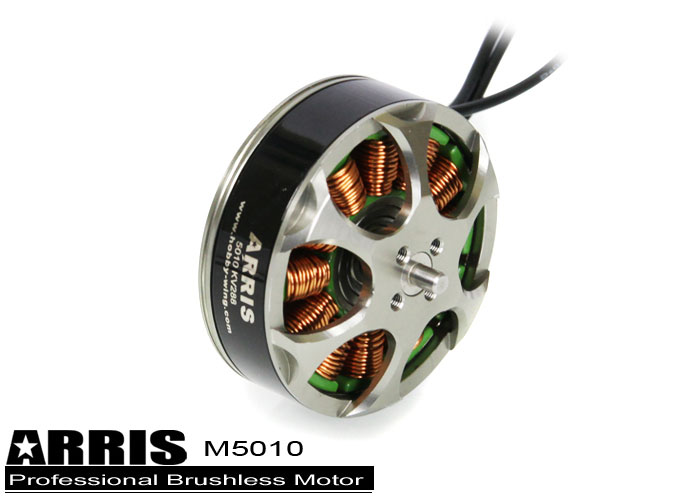

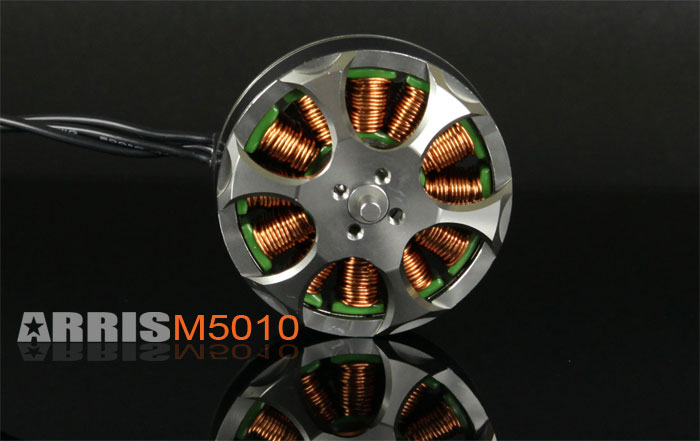

ARRIS 5010 288KV High Quality Brushless Motor for Multi-rotors

ARRIS Brushless Motor is jointly developed by ARRIS and the most professional motor manufacturer in China. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.

The advantage of ARRIS Motors is as follows:
Motor Spindle: ARRIS motor adopts authentic Japan Imported Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
Bearings: ARRIS4010PRO adopts authentic EZO bearing
Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)

Specification:
No Load Current: 0.4A
Maximum Power: 685W
Internal Resitance: 325ohms
Number of Poles: 12N14P
Maximum Propeller: 18 inches, recommend the 1861 propeller

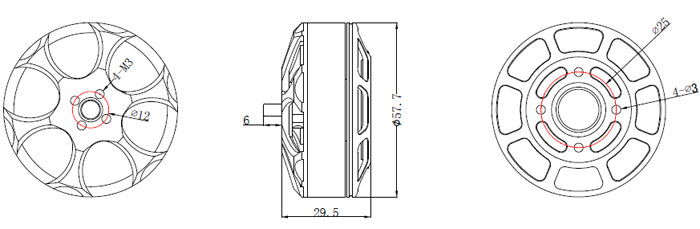

Technical Data
Motor Diameter 57.7mm
Motor Length 29.5mm
Stator Diameter 50mm
Stator Length 10mm
Shaft Diameter 4mm
Weight 208.5g
Batteries 6Cells
Top Mounting Holes 12mm*12mm
Bottom Mounting Holes 25mm*25mm

Package Include:
ARRIS 5010 288KV Brushless Motor x 1
