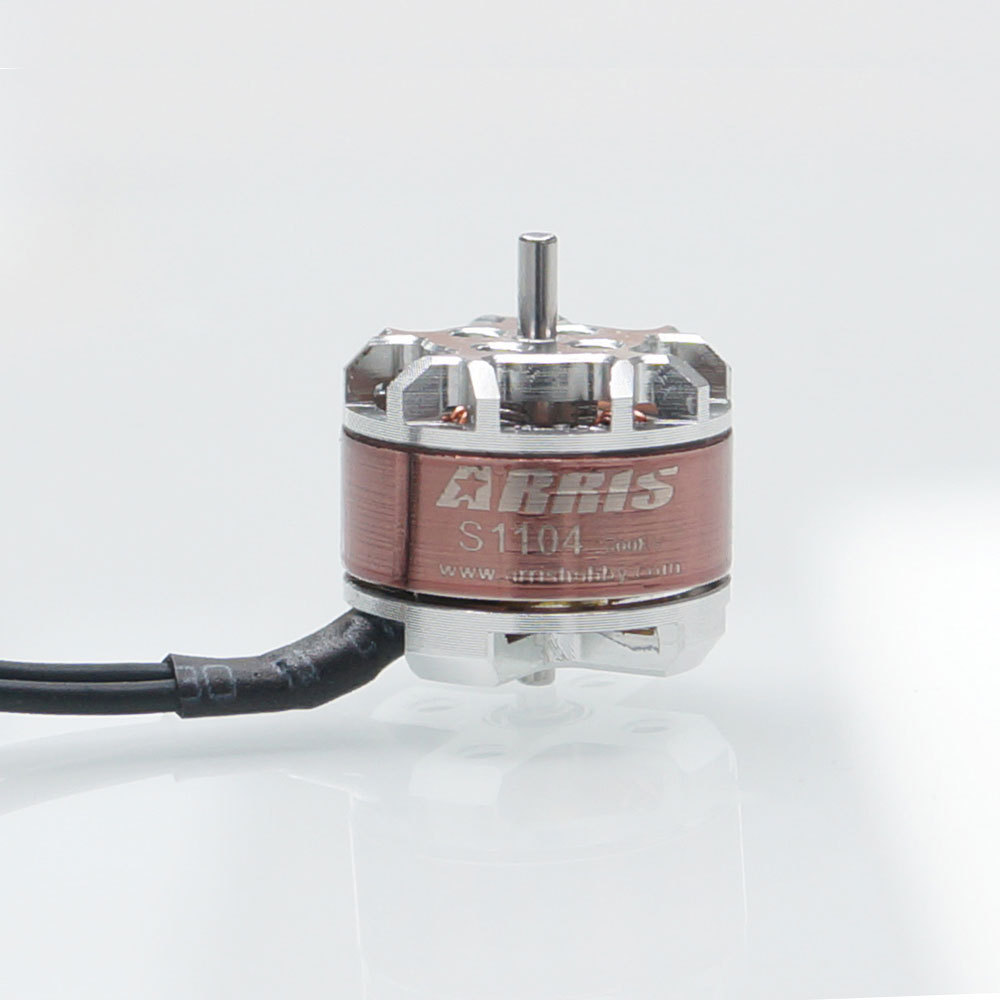

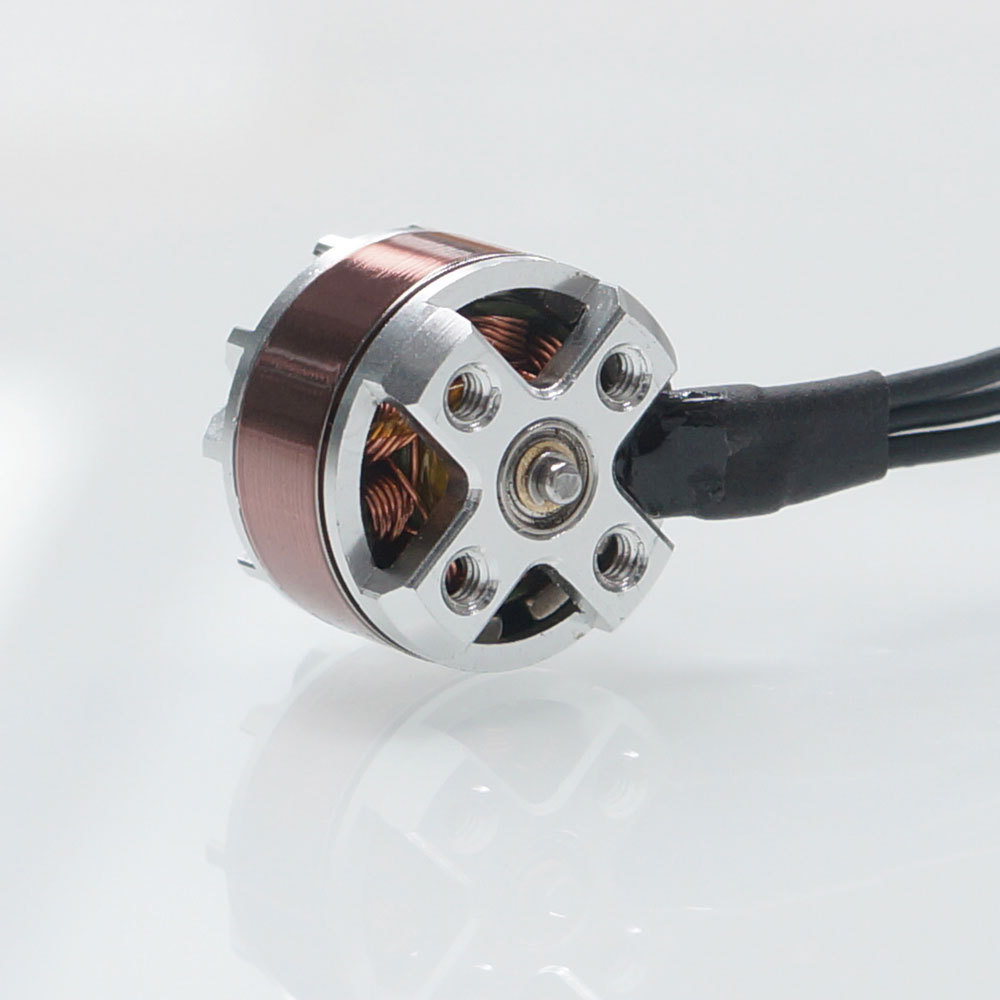

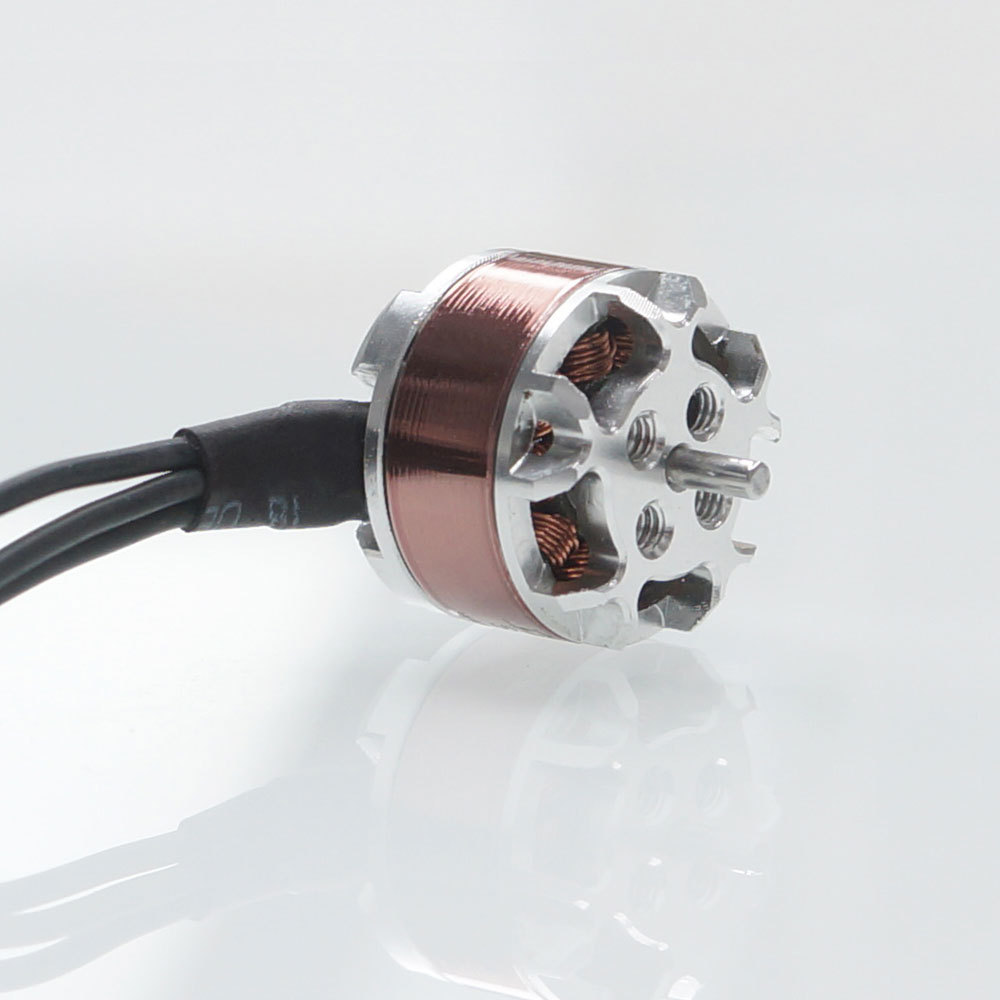

ARRIS 1104 7800KV Brushless Motor
SKU: GA0134
(0)
$7.99
1/1
Specifications:
Model Type: 1104
KV: 7800KV
Configuration: 9N12P
No. of Cells (Lipo): 2S
Shaft Diameter: 1.5MM
No-load Current: 8V/0.8A
Dimension: Φ14.4*H12.0
Weight: 5.4g
Package Included:
ARRIS 1104 7800KV Brushless Motor x 1
M2 X 4 screws x 4
| Voltage | Propeller | Current/A | Power/W | Thrust/G | Efficiency/GW |
| 8V | GF2035-4 |
2
|
16
|
42
|
2.63
|
|
3
|
24
|
59
|
2.46
|
||
|
5
|
40
|
91
|
2.28
|
||
|
7
|
56
|
118
|
2.11
|
||
|
Max.8.6
|
69
|
139
|
2.02
|
