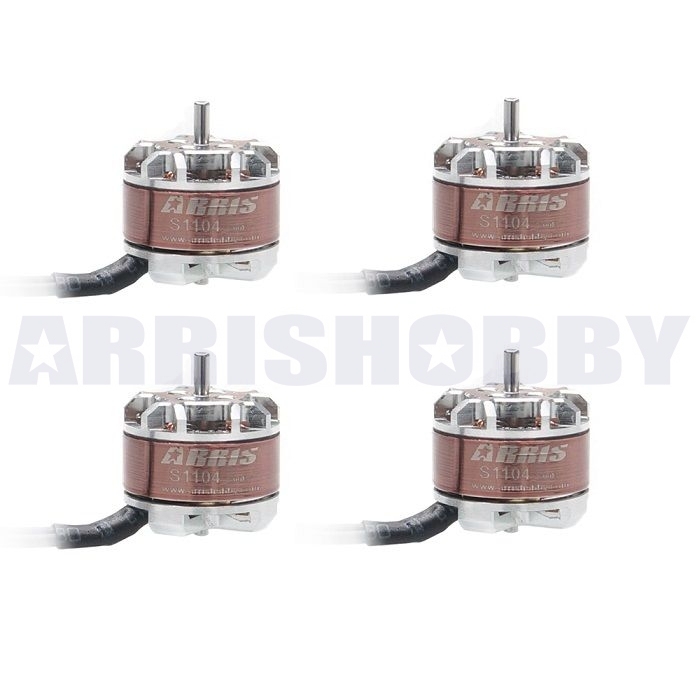

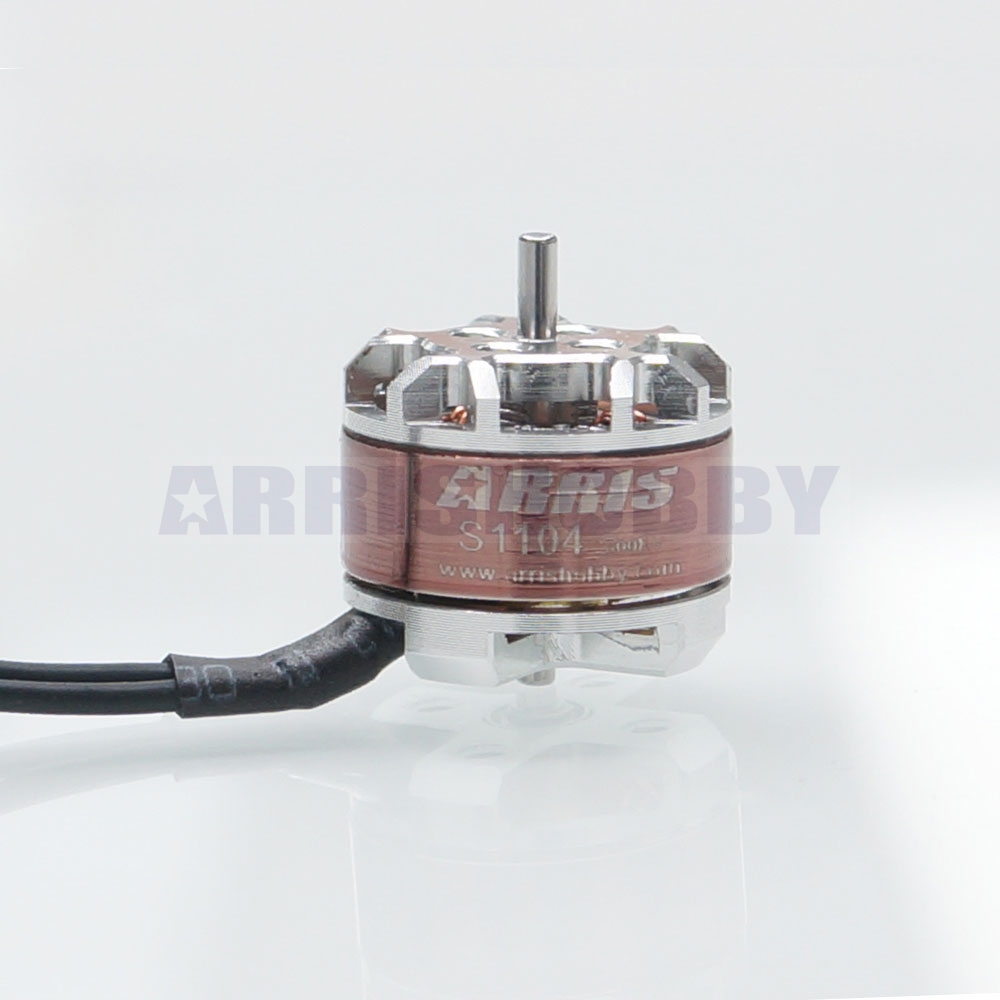

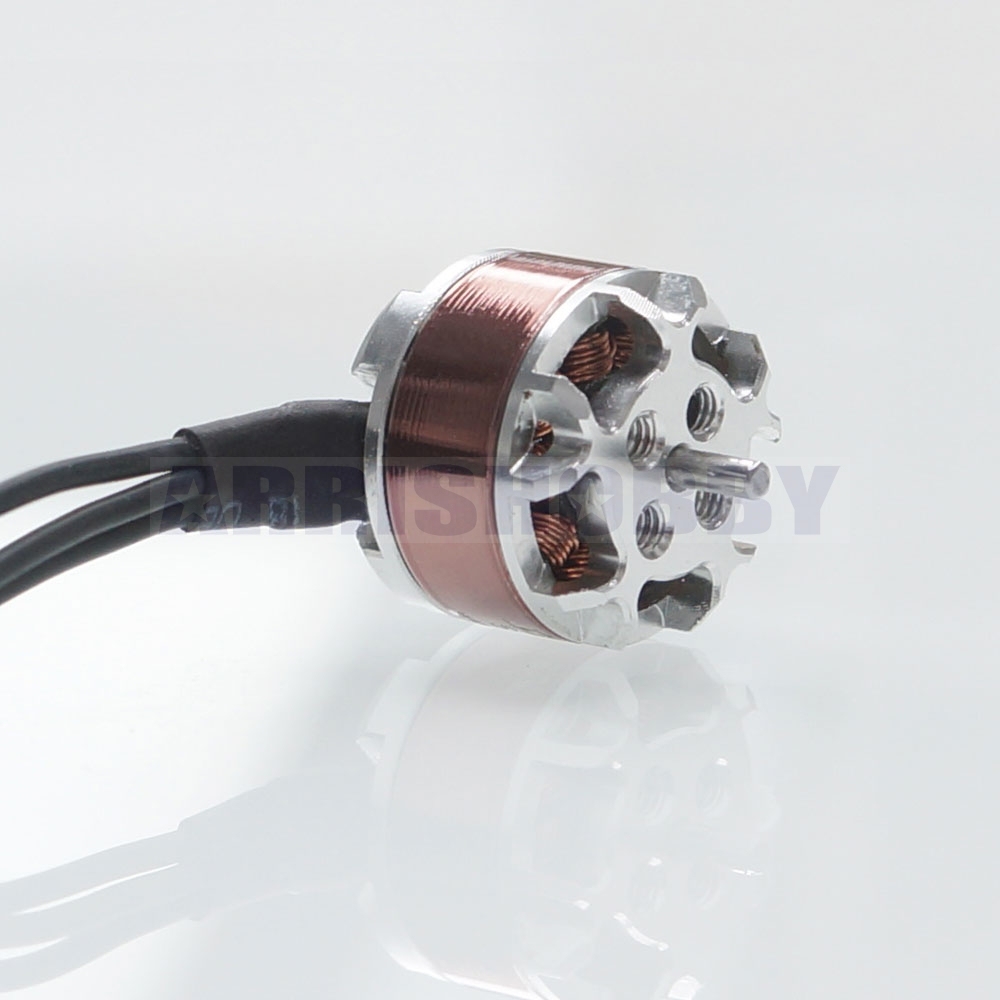

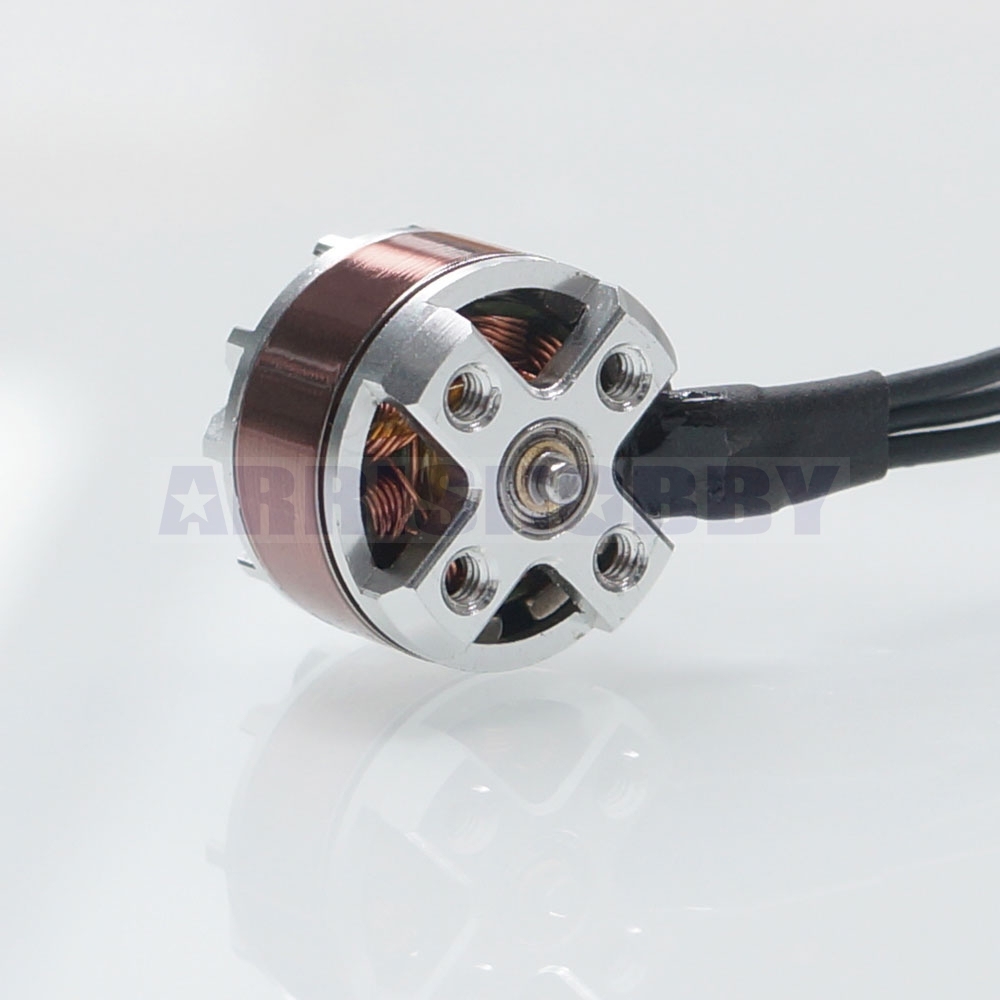

ARRIS 1104 7800KV Micro Brushless Motor (4pcs)

GA0134-4PCS
    Please select the information you wantX
Quantity:
-
+
(115 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Specifications:
Model Type: 1104
KV: 7800KV
Configuration: 9N12P
No. of Cells (Lipo): 2S
Shaft Diameter: 1.5MM
No-load Current: 8V/0.8A
Dimension: Φ14.4*H12.0
Weight: 5.4g

Package Included:

ARRIS 1104 7800KV Brushless Motor x 4
M2 X 4 screws x 16


Voltage Propeller Current/A Power/W Thrust/G Efficiency/GW
8V GF2035-4
2
16
42
2.63
3
24
59
2.46
5
40
91
2.28
7
56
118
2.11
Max.8.6
69
139
2.02
