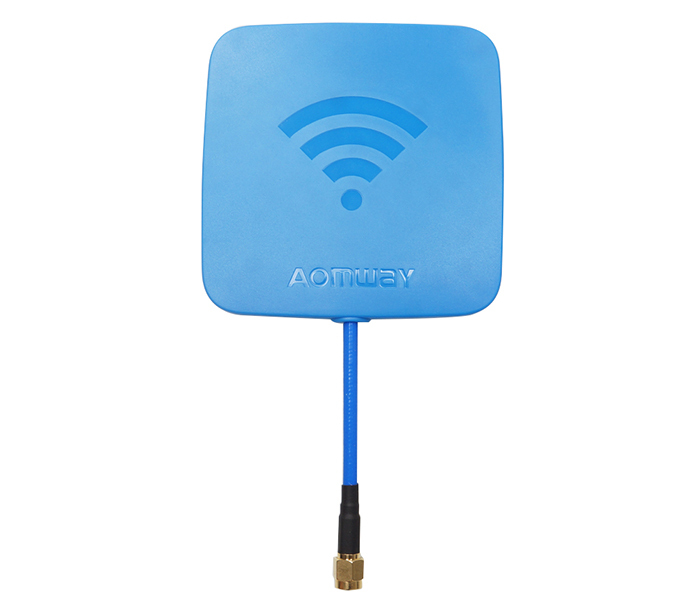

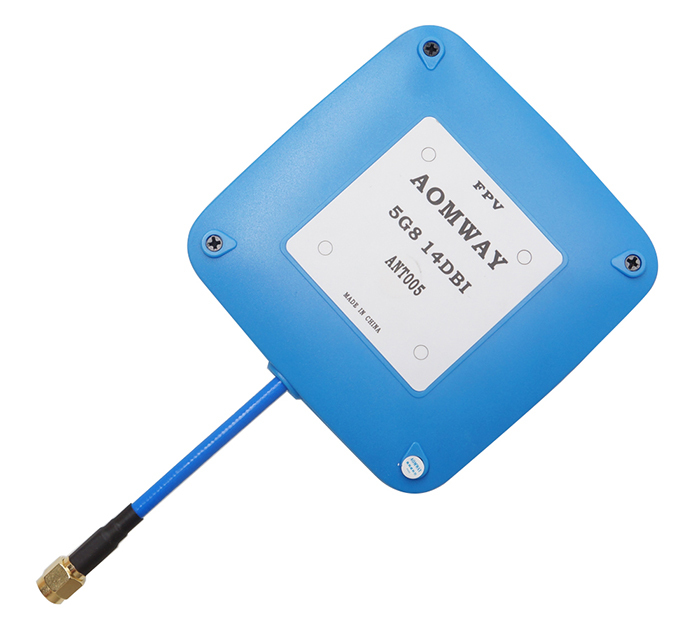

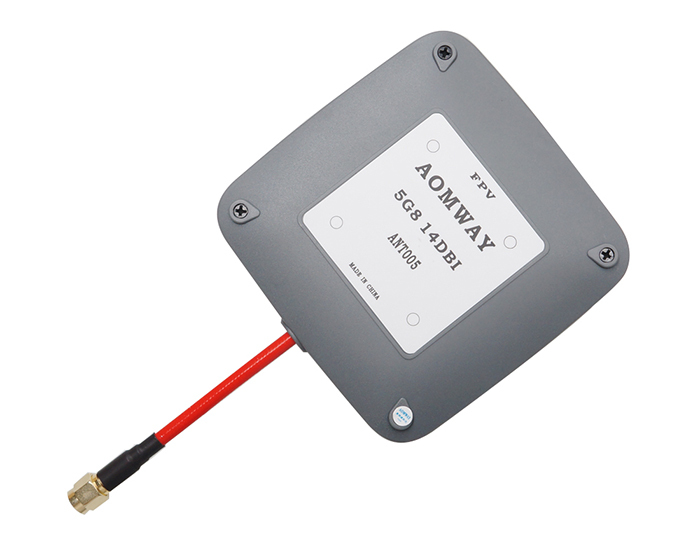

Aomway 5.8GHz 14dbi Circular Polarized Patch Antenna V2 (RHCP)

MA0076-77
    Please select the information you wantX
  • Versions:
    SMA
    RP-SMA
Quantity:
-
+
(99 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

The circular polarized patch antenna is lightweight, headset-mountable and reaching to an unbelievable long distance. Specially designed for FPV hobbyists, with 14dBi antenna gain, it pushes the range limit up to multi-kilometers on 5.8GHz system.

Specifications:
Connector: SMA (Blue) or SMA-RP(Grey)
Polarization: Right-hand Circular Polarized 5.8GHz ISM Band
Gain: 14dBi
Beam width: 36 Degrees (H + V)
F/B ratio: 26dB, VSWR is ‹ 1.5:1 (5740 ~ 5860MHz)
Impedance: 50 ohm
Size: 85 x 85 x 8mm
Weight:46g

Package Includes:
Aomway 5.8GHz 14dbi Circular Polarized Patch Antenna x 1

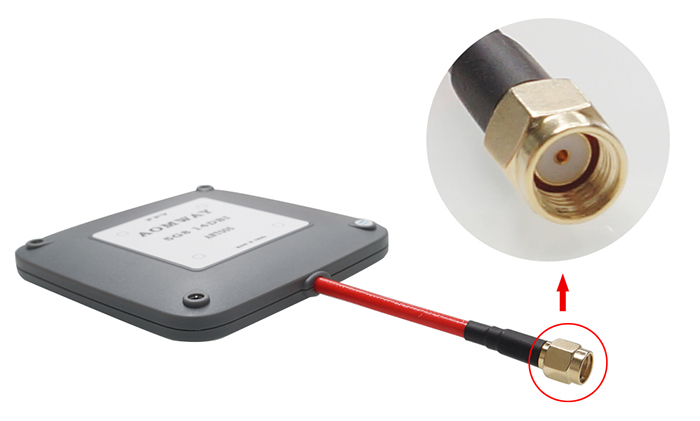

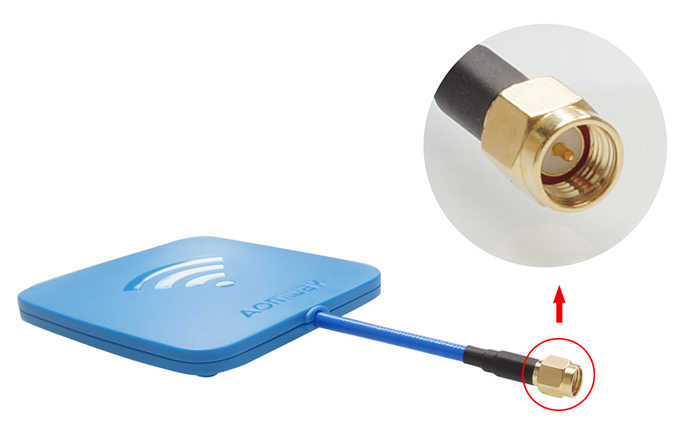

Note: SMA connector is Blue. RP-SMA connector is Grey.
