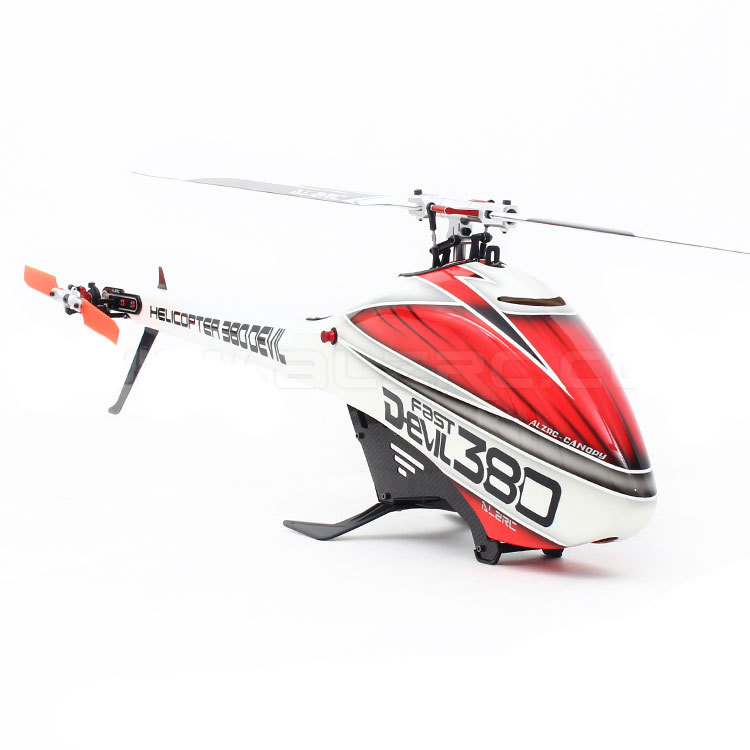

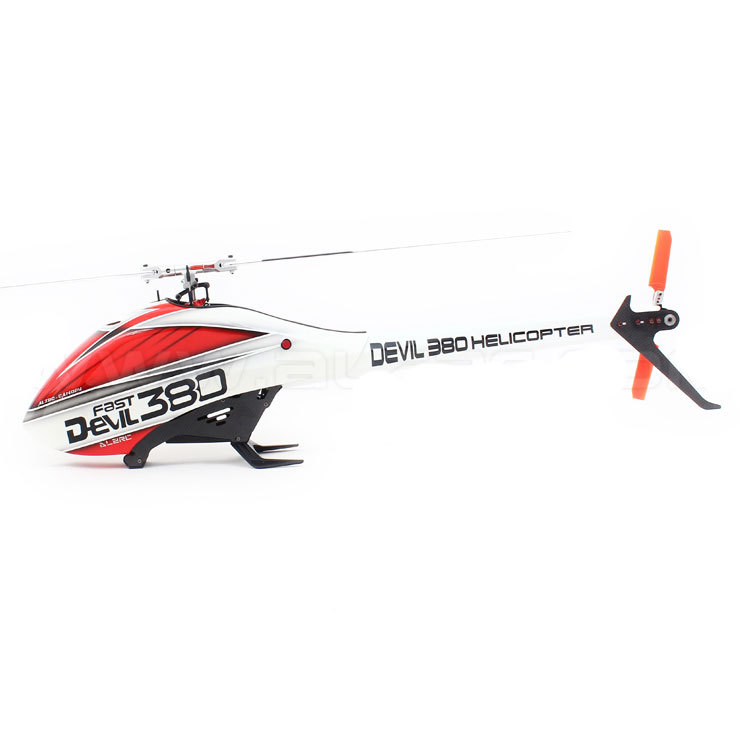

ALZRC Devil 380 6CH 3D FBL Heliopter Kit

DC0003
Price:
    Please select the information you wantX
Quantity:
-
+
(49 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
Main Features:

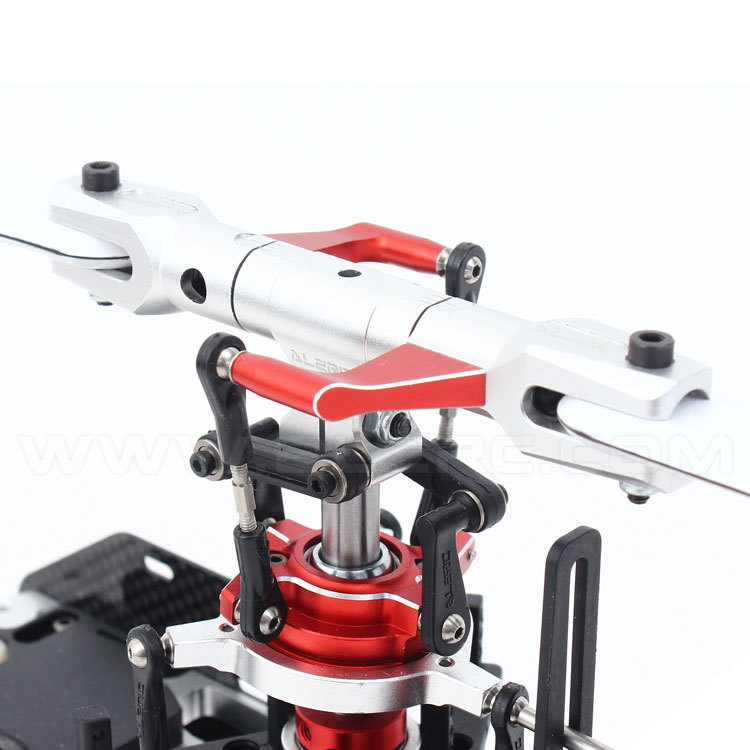

●Equipped with FBL ball linkage rod,makes more convenient to adjust.
●New improved 1.2mm carbon fiber compound main frame,enhances the fuselage strength.
●Over 90% of screw from Taiwan YFS 12.9 Class inner hexagon screw with red aluminium screw washer.
●All-metal five-point connect motor mount.
●Plastic swashplate servo mount,accurate fixed position,apply to most commercially micro swashplate servo.
●Improved and thickened carbon ficer tail boom.

Specifications:
ITEM Brand: ALZ
Item No. Devil 380
Main rotor diameter:856mm
Main blade length:380mm
Tail rotor diameter:196mm
Tail blade length:70mm
Main shaft diameter:8mm
Tail shaft diameter:5mm
Weight(With electronics):1100g(No Battery)

Radio transmitter and electronic equipment required for assembly:
1.Transmitter: 6-channel or more,helicopter system
2.Receiver: 6-channel or more
3.Pitch Gauge: Digital Pitch Gauge
4.Battery: 6S/22.2V 1600~2600mAh Li-Po Battery
5.Motor: RMC-BL3120 1000kv 6S Brushless Motor(5mm spindle) x 1
6.ESC: 50~80A Brushless ESC x 1
7.Swashplate Servo: Micro Digital Metal Servo x 3
8.Tail-lock Servo: Medium Digital Metal Servo x 1
9.Gyroscope: Flybarless Gyro System x 1
10.Other: Plug & Assemble Tools Set

Packaging Included:
Devil 380 FAST FBL KIT x 1
